Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

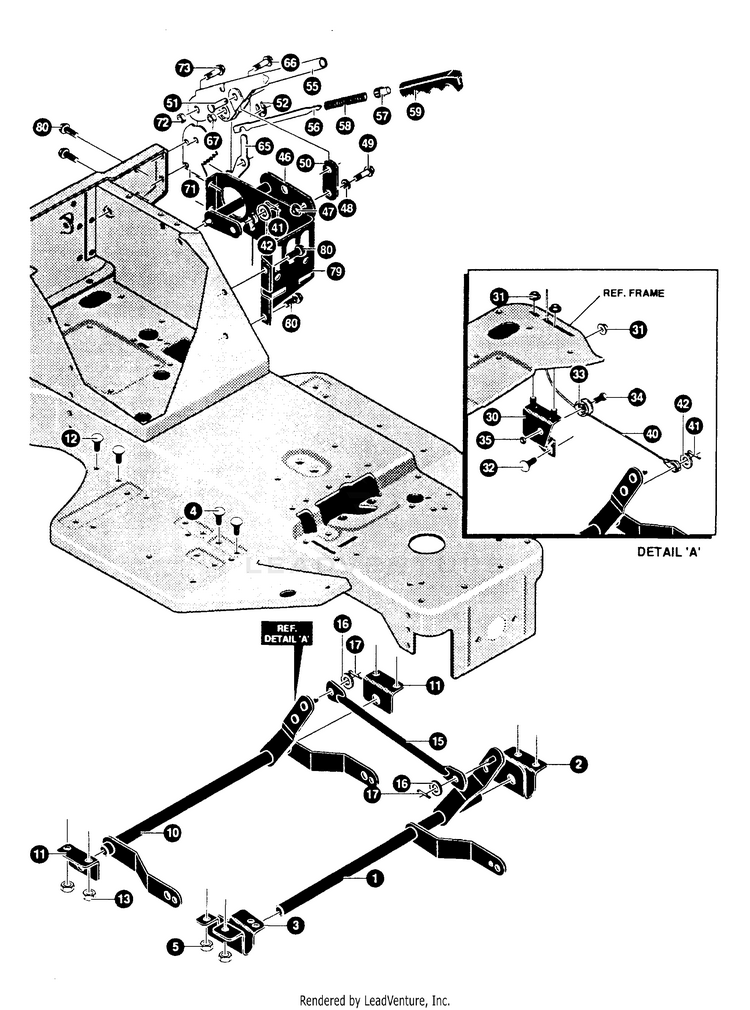

Deck Lift

...
...
1
SHAFT, ASSY FRONT LIFT EURO HUS-302379853
...
2
BRACKET, FRONT HANGER RH HUS-304967853
...
3
BRACKET, FRONT HANGER LH HUS-302338853
...
4
SCREW, 5/16-18X.75 HHC HUS-180077
...
5
NUT 5/16-18 REGHEXCTRLK HUS-1498
...
10
SHAFT, ASSY REARLIFT E/C EUR HUS-309213853
...
11
BRACKET, REAR HANGER EURO HUS-302360853
...
12
SCREW, 5/16-18X.75 HHC HUS-180077
...
13
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
15
TIE ROD HUS-302380
...
16
WASHER, FLAT .406X.81X.065 HUS-120394
...
17
PIN, COTTER .090 DIAX.75LG HUS-121222
...
30
ASSY,PULLEY BRKT HUS-303230
...
31
NUT, 5/16-18 HXWDFLLK HUS-55273
...
32
BOLT, 5/16-18X.63 CARRLN HUS-57072
...
33
PULLEY, POWDER METAL HUS-48306
...
34
BOLT, .375X.700 HHSH 5/16-18 HUS-305522
...
35
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
40
CABLE,DECK LIFT HUS-303227
...
41
PIN, COTTER .090 DIAX.75LG HUS-121222
...
42
WASHER, FLAT .344X.69X.065 HUS-120393
...
46
ASSY UPPER SHAFT HUS-302205
...
47
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
48
WASHER, FLAT .333X.87X.119 HUS-45602
...
49
BOLT, .375X.500 HHSH 5/16-18 HUS-36149
...
50
LINK HUS-302357
...
51
PIN,CLEVIS .310DIA+.475LG HUS-300310
...
52
RING RET E .31 X .25TRUX5133-31 HUS-300311
...
55
HEIGHT LEVER HUS-58332853
...
56
ROD ACTUATOR HUS-58330
...
57
KNOB HEIGHT ADJ PUSH BUTTON HUS-58325
...
58
SPRING HEIGHT ADJUST HUS-58326
...
59
GRIP, HAND .741DX5.15 HUS-304730
...
65
PAWL SQUARE HUS-301239
...
66
BOLT, .500X.270 HHSH 5/16-18 HUS-300171
...
67
NUT, 5/16-18 HWDFLCTRLK HUS-44108
...
71
QUADRANT HUS-302383
...
72
NUT 5/16-18 REGHEXCTRLK HUS-1498
...
73
BOLT, .500X.270 HHSH 5/16-18 HUS-300171
...
79
BRACKET SUPPORT ENGAGE HUS-302208
...
80
SCREW 5/16-18X.50 WAHHTAP HUS-35497
