Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

Hood

...
...
1
SHAFT STEERING EURO LT SHORT HUS-302307
...
2
PIN DOWEL STR ERO LT HUS-302524
...
3
PINION, STEERING HUS-302314
...
4
SCREW, 5/16-24 X .75 (TO 30-35 FT#) HUS-323731
...
5
NUT, 5/16-24 HEXWDFLLK HUS-71100
...
6
BEARING, FLANGED .500ID X OD X .75 HUS-302498
...
7
WASHER, FLAT .504 X .75 X .059 HUS-2968
...
8
RING, RET E .39 X .04TRU5133-50 HUS-20864
...
9
BUSHING STR SHIFT UPPER HUS-303228
...
12
BUMPER, HOOD/DASH EURO TOP HUS-321810
...
13
DASH, TALL HUS-331379
...
14
SCREW, 1/4-20 X .75 HHC HUS-180020
...
15
NUT, 1/4-20 REGHEXCTRLK HUS-1502
...
16
WASHER, FLAT .281 X .63 X .065 HUS-120392
...
19
DASH LOWER SHORT LT HUS-302331830
...
20
SCREW, 5/16-18 X .50 WAHHTAP HUS-35497
...
21
SCREW, 5/16-18 X .37 WAHHTAP HUS-45263
...
23
SCREW, 1/4-20 X .50 WAHHTAP HUS-995346
...
24
SCREW, 1/4-20 X .50 PHPNTAP HUS-305850
...
26
BRACKET, HOOD RH H19/G16 HUS-308898
...
27
BRACKET, HOOD LH HUS-308897853
...
28
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
29
BOLT, .500 X .375 HHSH 5/16-18 HUS-25086
...
33
HOOD, UPPER HUS-332113
...
34
EDGING, WIDE BLK HUS-52151
...
41
LENS, HOOD SMOKED GREY HUS-306858
...
43
SCREW, #10 X .50 HHTAPPST HUS-300302
...
45
GRILLE, MOLD/GREY HUS-331184
...
46
SCREW, 1/4-14 X .75PHPNHDTAP HUS-318304
...
50
ASSY GAS TANK 1.5 GAL (OPTION) HUS-305820
...
52
CLAMP, FUEL LINE HUS-47345
...
53
CLAMP, HOSE SCREW TYPE HUS-47345
...
58
SCREW, .25 X .75 X .51 HHWAPLASTITE HUS-300303
...
60
CAP FUEL 2.5" THROAT HUS-12501
...
62
HEAT SHIELD ERO 1.5 & 3 GAL HUS-324795853
...
76
STEERING WHEEL HUS-330847
...
77
PIN, SPRING .250DIA X 2.00LG HVPL HUS-456378

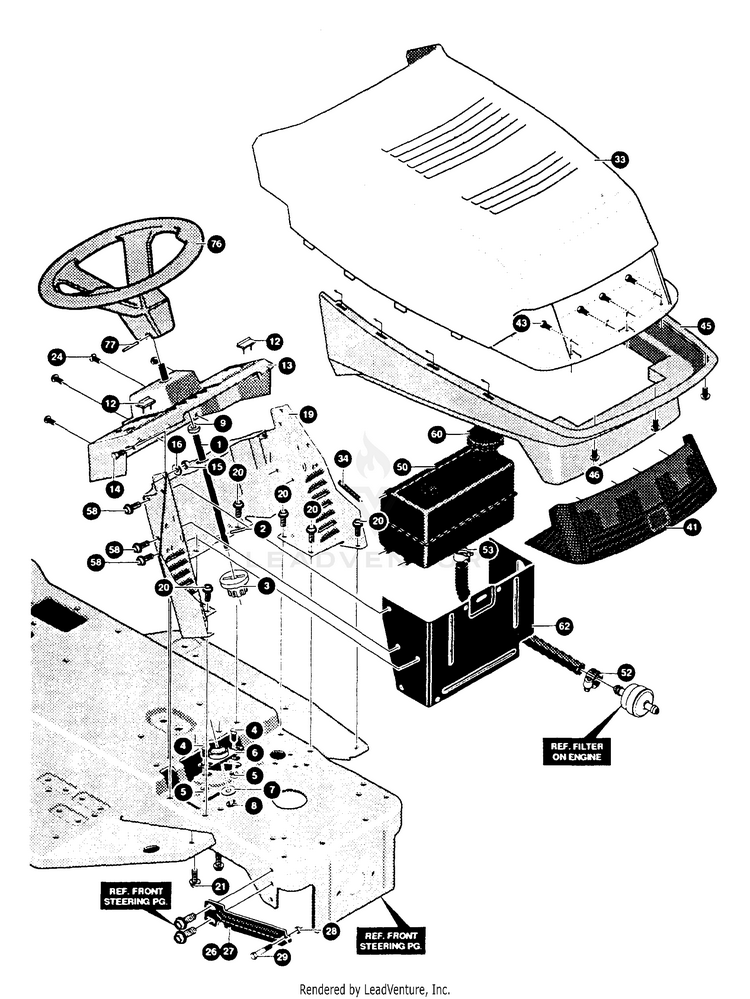

Schematic Image Zoomed
