Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

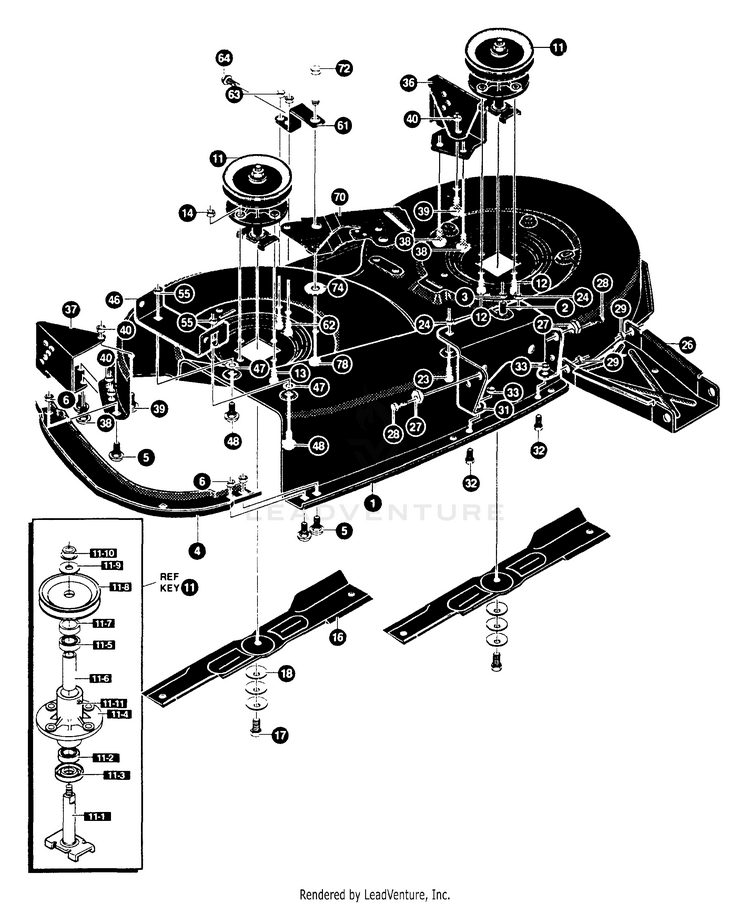

Deck (A)

...
...
1
MOWER DECK KIT 40" LF/EURO HUS-325103
...
2
SCREW, 5/16-18X.75 HHC HUS-180077
...
3
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
4
TOE GUARD - MULCHER HUS-326480
...
5
BOLT 5/16-18X.63 CARRLN HUS-57072
...
6
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
11
QUILL 36/40/43 W/ZERKS HUS-317705
...
12
SCREW, 5/16-18X.75 WAHHTAP HUS-35498
...
13
SCREW, 5/16-18X1.38 WAHHTAP HUS-300345
...
14
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
16
BLADE, 40" STD-LIFT 20.32 HUS-313316
...
17
SCREW, 3/8-24X1.00 NYLHHC HUS-39573
...
18
WASHER, .39IDX1.25DX.07 BELLVIL HUS-2483
...
23
BOLT, 5/16-18X.63 CARRLN HUS-57072
...
24
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
26
CHANNEL DRAWBAR 40 EURO HUS-310800
...
27
NUT, ADJUST HUS-58247
...
28
SCREW 5/16-18X1.00 HHC HUS-180079
...
29
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
31
BRACKET FRONT HUS-312342
...
32
SCREW, 5/16-18X.75 HHC HUS-180077
...
33
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
36
BRACKET, GAGE WHEEL LH HUS-317041
...
37
BRACKET, GUAGE WHEEL RH HUS-317018
...
38
SCREW, 5/16-18X.75 HHC HUS-180077
...
39
BOLT, 5/16-18X.63 CARRLN HUS-57072
...
40
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
46
BRACKET CHUTE MOUNT HUS-317017
...
47
WASHER, FLAT .469X.92X.065 HUS-120395
...
48
BOLT, 5.16-18X.63 CARR HUS-57072
...
55
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
61
BRACE IDLER SUPPORT 40",43" HUS-326893
...
62
SCREW, 5/16-18X.75 HHC HUS-180077
...
63
NUT, 5/16-18 HWDFLCTRLK HUS-44108
...
64
SCREW, 1/4-20X1.25 HHWATAP HUS-308231
...
70
IDLER ARM40/43/46DECK HUS-322117
...
72
BOLT, 500X2.15 HHSH HUS-304420
...
74
WASHER, FLAT .391X1.00X .209 HUS-996307
...
78
NUT, 3/8-16 HWDFLLK MACK HUS-45905
