Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

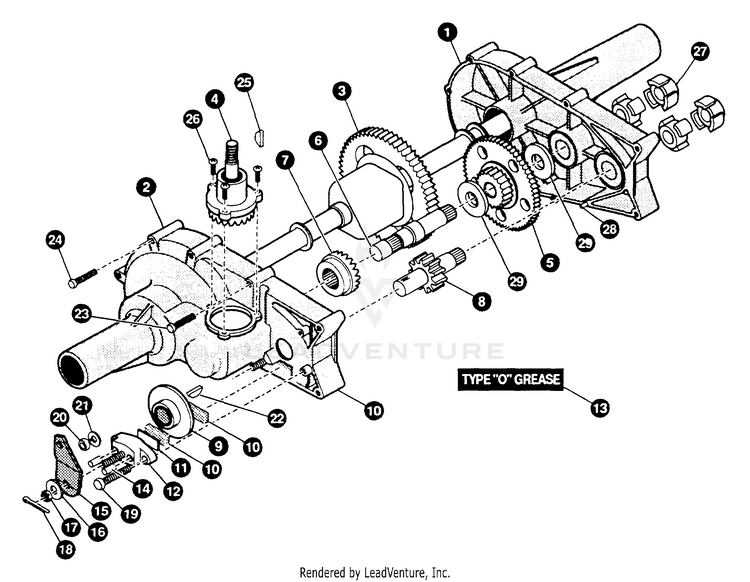

Transaxle

...
...
1
HOUSING HALF, LH HUS-324090
...
2
HOUSING HALF, RH HUS-324092
...
3
GEAR, DIFFERENTIAL HUS-324093
...
4
SHAFT, INPUT HUS-324095
...
5
GEAR HUS-324096
...
6
SHAFT, DRIVE HUS-323656
...
7
GEAR, DRIVE PINION HUS-323655
...
8
SHAFT, PINION HUS-323660
...
9
DISC, BRAKE HUS-323663
...
10
PUCK, BRAKE HUS-323685
...
11
PLATE, PUCK HUS-323687
...
12
BRAKE, YOKE HUS-324092
...
13
TYPE "O" GREASE HUS-324089
...
14
PIN, BRAKE ACTUATING HUS-323681
...
15
ARM, BRAKE ACTUATOR HUS-323665
...
16
WASHER, FLAT HUS-323684
...
17
NUT, CASTLE HUS-323691
...
18
PIN, COTTER HUS-323671
...
19
BOLT, HEX W/PATCH HUS-323711
...
20
NUT, HEX HUS-323650
...
21
WASHER, SPRING LOCK HUS-323649
...
22
KEY, HI-PRO HUS-323692
...
23
BOLT, HEX SELF-TAP HUS-323677
...
24
BOLT, HEX SELF-TAP HUS-323678
...
25
KEY, HI-PRO HUS-323688
...
26
SCREW, HEX W/PATCH HUS-329832
...
27
COUPLING HUS-323661
...
28
PIN ROLL HUS-323699
...
29
WASHER, FLAT HUS-329833
