Husqvarna LT 4140 G (E4014-030) (1994-01) Ride Mower

Model: LT 4140 G (E4014-030) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

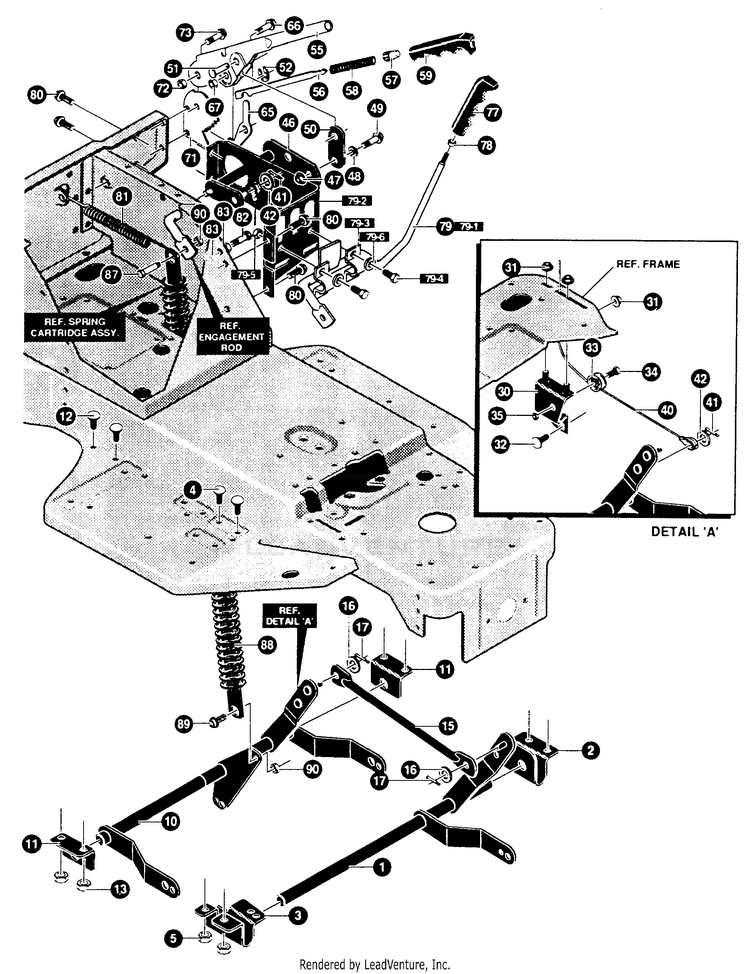

Deck Lift

...
...
1
SHAFT, ASSY FRONT LIFT EURO HUS-302379853
...
2
BRACKET, FRONT HANGER RH HUS-304967853
...
3
BRACKET, FRONT HANGER LH HUS-302338853
...
4
SCREW, 5/16-18X .75 HHC HUS-180077
...
5
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
10
SHAFT, ASSY REAR LIFT HUS-302206853
...
11
BRACKET, REAR HANGER EURO HUS-302360853
...
12
SCREW, 5/16-18X .75 HHC HUS-180077
...
13
NUT. 5/16-18 REGHEXCTRLK HUS-1498
...
15
ROD, TIE HUS-302380
...
16
WASHER, FLAT .406X .81X.065 HUS-120394
...
17
PIN, COTTER.090 DIAX.75LG HUS-121222
...
30
ASSY,PULLEY BRKT HUS-303230
...
31
NUT, 5/16-18 HXWDFLLK HUS-55273
...
32
BOLT. 5/16-18X 5/16-18X.63 CARR HUS-57072
...
33
PULLEY, POWDER METAL HUS-48306
...
34
BOLT, .375X .700 HHSH 5/16-18 HUS-305522
...
35
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
40
CABLE, DECK LIFT HUS-303227
...
41
PIN, COTTER .090 DIAX.75LG HUS-121222
...
42
WASHER, FLAT .344X .69X.065 HUS-120393
...
46
ASSY. UPPER SHAFT HUS-302205
...
47
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
48
WASHER, FLAT .333X .87X.1 19 HUS-45602
...
49
BOLT, 375X .500 HHSH 5/16-18 HUS-36149
...
50
LINK HUS-302357
...
51
PIN, CLEVIS .310DIA +.475LG HUS-300310
...
52
RING, RETE 31X.25TRUX5133-31 HUS-300311
...
55
HEIGHT LEVER HUS-58332853
...
56
ROD, ACTUATOR HUS-58330
...
57
KNOB, HEIGHT ADJ PUSH BUTTON HUS-58325
...
58
SPRING, HEIGHT ADJUST HUS-58326
...
59
GRIP, HAND .74IDX5.15 HUS-304730
...
65
PAWL, SQUARE HUS-301239
...
66
BOLT-500X.270 HHSH 5/16-18 HUS-300171
...
67
NUT, 5/16-18 HWDFLCTRLK HUS-44108
...
71
QUADRANT HUS-302383
...
72
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
73
BOLT. .500X .270 HHSH 5/16-18 HUS-300171
...
77
HANDLE, 1/2-13 HUS-304729
...
78
NUT, 1/2-13 HEXJAM HUS-120238
...
79
ASSY BRKT & ENGAGE HAND HUS-307385853
...
79-1
ASSY. ENGAGEMENT ROD HUS-306391
...
79-2
BRACKET SUPPORT ENGAGE HUS-302208
...
79-3
CLIP HUS-312701
...
79-4
SCREW, 1/4-20X .50 HHC HUS-180016
...
79-5
NUT, 1/4-20 REGHEXCTRLK HUS-1502
...
79-6
WASHER, FLAT .250X .56X.049 HUS-120385
...
80
SCREW, 5/16-18X .50 WAHHTAP HUS-35497
...
81
SPRING, TENSION HUS-305306
...
82
SCREW, 3/8-16X2.50 HHC HUS-180134
...
83
NUT. 3/8-16 HEXKEPS HUS-271190
...
87
BOLT .437X.43 HHSH HUS-305989
...
88
ASSY. SPRING CARTRIDGE HUS-304448
...
89
BOLT, .437X .156 HHSH 5/16-18 HUS-20507
...
90
NUT, 5/16-18 REGHEXCTRLK HUS-1498
