Husqvarna LT 4140 G (E4014-030) (1994-01) Ride Mower

Model: LT 4140 G (E4014-030) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

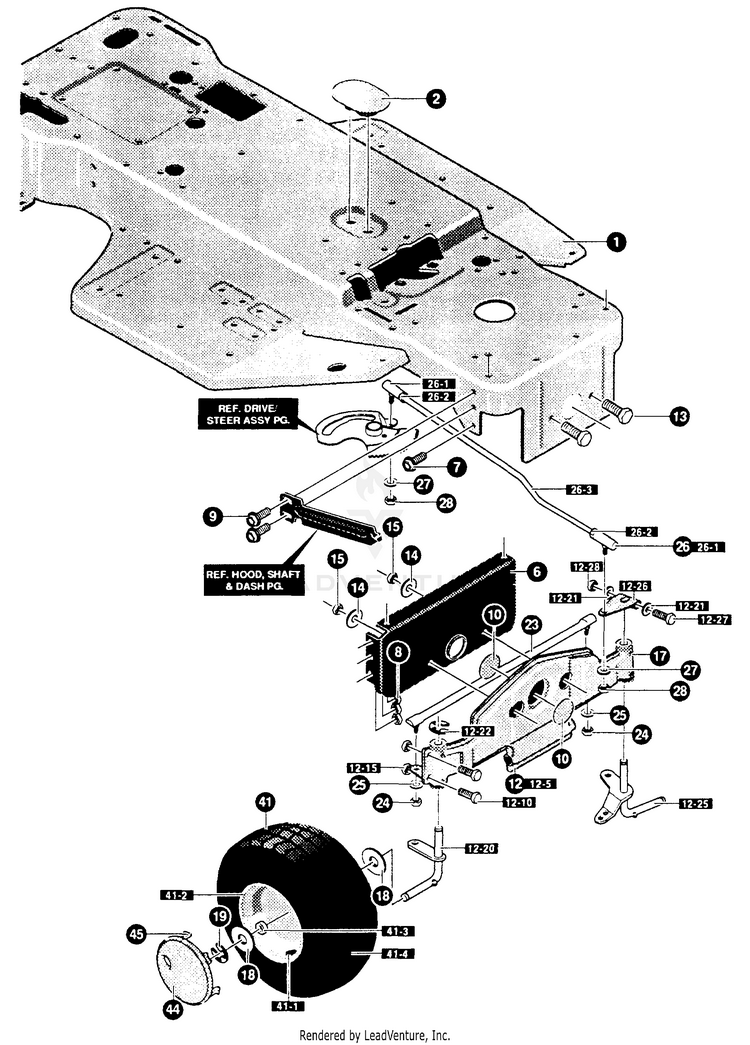

Steering

...
...
1
FRAME, EURO HUS-331674830
...
2
COVER,SECTOR BOLT PLAS GREY HUS-305280
...
6
BRACKET, FRONT AXLE SUPPORT HUS-302321853
...
7
SCREW, 5/16-18X.75WDFLLK HUS-56030
...
8
NUT, 5/16-18 HXWDFLLK HUS-55273
...
9
SCREW, 5/16-18X.75 HXWDFL HUS-53652
...
10
PLUG,FRONT AXLE 1.938DIAX.062" HUS-307112
...
12-5
AXLE,ASSY FRONT WELD BLK HUS-310670
...
12-10
SCREW, 5/16-18X.75 HHC HUS-180077
...
12-15
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
12-20
ASSY SPDLE RH EROLT HUS-305340
...
12-21
WASHER, FLAT .391X1.00X.125 HUS-996416
...
12-22
RING, RETEX.57X.05TRU5133-75 HUS-36625
...
12-25
ASSY SPDLE LH EROLT HUS-305339
...
12-26
ARM STEERING UPPER BLACK HUS-317019
...
12-27
SCREW, 3/8-16X2.50 HHC HUS-180134
...
12-28
NUT, 3/8-16 REGHXCTRLK HUS-1499
...
13
SCREW, 3/8-16X3.00 HHC HUS-180138
...
14
WASHER .39IDX1.25DX.07 BELLVIL HUS-2483
...
15
NUT, 3/8-16 REGHXCTRLK HUS-1499
...
17
ZERK, GREASE FITTING HUS-706
...
18
WASHER, FLAT .755X1.31X.075 HUS-642
...
19
RING, RETEX .57X.05TRU5133-75 HUS-36625
...
23
TIE ROD.625DIA GRND ENGAGER HUS-300328
...
24
NUT, 3/8-24 REGHEX HUS-120369
...
25
WASHER, REGSPTLK.393X.68X.10 HUS-120382
...
26
LINK, ASSY,625DIA DRAG LT 4WS HUS-302908
...
26-1
BALL JOINT 3/8 THD SHORT STUD HUS-57158
...
26-2
NUT, 3/8-24 REGHEXJAM HUS-124925
...
26-3
LINK, .625DIA DRAG LT 4WS HUS-302907
...
27
WASHER, REGSPTLK.393X.68X.10 HUS-120382
...
28
NUT, 3/8-24 REGHEXJAM HUS-124925
...
41
TIRE & RIM, PU 15X6.OX6 WHI HUS-321515
...
41-1
VALVE STEM HUS-24167
...
41-2
RIM, WHEEL HUS-321516
...
41-3
BEARING, FL HUS-314416
...
41-4
TIRE 15X6.00X6 HUS-316702
...
44
HUBCAP, 6" EURO GREY HUS-304444
...
45
CLIP,HUBCAP TINN #C25467-017-4 HUS-306669
