Husqvarna LT 4140 G (E4014-030) (1994-01) Ride Mower

Model: LT 4140 G (E4014-030) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

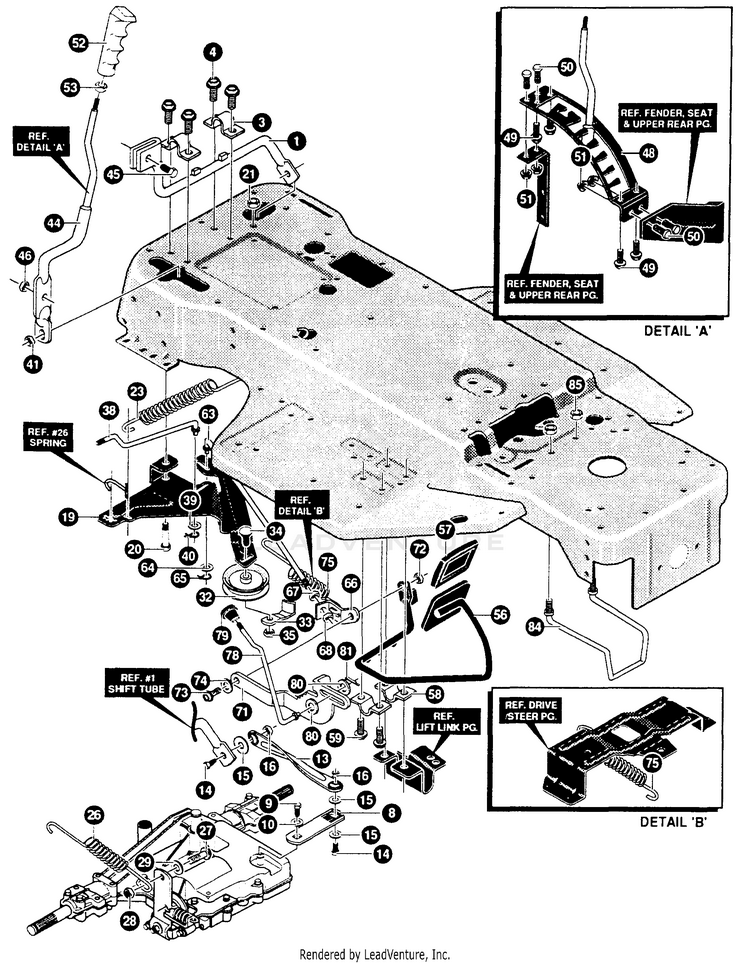

Drive

...
...
1
TUBE ASSY, SHIFT BLACK 173 HUS-321421
...
3
CLIP, SHIFT LEVER HUS-302538
...
4
SCREW, 5/16-18X .50 WAHHTAP HUS-35497
...
8
LEVER,TRANS SHIFT HUS-302582
...
9
SCREW, 1/4-28X .75 NYLHHC HUS-56255
...
10
WASHER, .750X.250 SP-TRANSAXLE HUS-57157
...
13
LINK,TIE ROD SHIFT 7 812C/L HUS-309546
...
14
SCREW, 3/8-16X1.25 HUS-180124
...
15
WASHER, FLAT .406X .81X.065 HUS-120394
...
16
NUT, 3/8-16 REGHXCTRLK HUS-1499
...
19
ARM IDLER HUS-304049
...
20
BOLT,.500X1.280 HHSH 3/8-16 HUS-51189
...
21
NUT, 3/8-16 REGHXCTRLK HUS-1499
...
23
SPRING, CLUTCH HUS-304209
...
26
SPRING, BRAKE 1.00ODX3.12X.120 HUS-304130
...
27
BOLT, .500X .375 HHSH 5/16-18 HUS-25086
...
28
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
29
WASHER, FLAT .515X1.31X.09 HUS-308188
...
32
PULLEY. IDLER BFF HUS-40223
...
33
BELT RETAINER HUS-304105
...
34
BOLT, 3/8-16X2.00 CARRSN HUS-57325
...
35
NUT, 3/8-16 HWDFL WHIZ-LOCK ZN HUS-45171
...
38
ROD, SHIFT-ON-THE-GO HUS-304083
...
39
WASHER, FLAT .406X .81X.065 HUS-120394
...
40
PIN, HAIR.072 DIAX1.13LG HUS-36368
...
41
NUT, 3/8-16 HEXNYL HUS-71046
...
44
TUBE ASSY, SHIFT PIVOT HUS-304025853
...
45
BOLT .375X.4001/4-20X.47 HUS-304086
...
46
NUT, 1/4-20 REGHEXCTRLK HUS-1502
...
48
QUADRANT, SHIFT P930-6SP ERO HUS-305382830
...
49
SCREW, 1110 X .50 HHTAPPST HUS-300302
...
50
SCREW, 1/4-20X .75 HUS-180020
...
51
NUT, 1/4-20 WDFLWHIZ-LK HUS-51335
...
52
HANDLE, 3/8-16 MOLDED HUS-304728
...
53
NUT, 3/8-16 REGHX HUS-120377
...
56
WELD ASSY CL/BR ARM HUS-302319853
...
57
PAD,CLUTCH/BRAKE MOLD W/L HUS-302335
...
58
BRACKET CL/BR ARM HUS-313271
...
59
SCREW, 5/16-18X .50 WAHHTAP HUS-35497
...
63
ROD, CLUTCH HUS-304212
...
64
WASHER, FLAT .281X .63X.065 HUS-120392
...
65
PIN, COTTER .062 DIAX.75LG HUS-121223
...
66
BRACKET, BRAKE ROD HUS-304125
...
67
NUT, 5/16-18 HEXKEPS HUS-271184
...
68
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
71
LEVER, PARK BRAKE HUS-304208
...
72
NUT, 5/ 16-18 REGHEXCTRLK HUS-1498
...
73
BOLT, .500X .375 HHSH 5/16-18 HUS-25086
...
74
WASHER, WAVE .50 ID HUS-30289
...
75
SPRING .071 X .62 X 4 37 HUS-35410
...
78
ROD, PARKING BRAKE HUS-304217
...
79
KNOB, PARK BRAKE BLK853 HUS-304367
...
80
WASHER, FLAT .250X .56X.049 HUS-120385
...
81
PIN, COTTER .062 DIAX.75LG HUS-121223
...
84
GUIDE, BELT 820 TRANSAXLE HUS-310162
...
85
NUT, 5/16-18 REGHEXCTRLK HUS-1498
