Husqvarna LT 4140 G (E4014-030) (1994-01) Ride Mower

Model: LT 4140 G (E4014-030) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

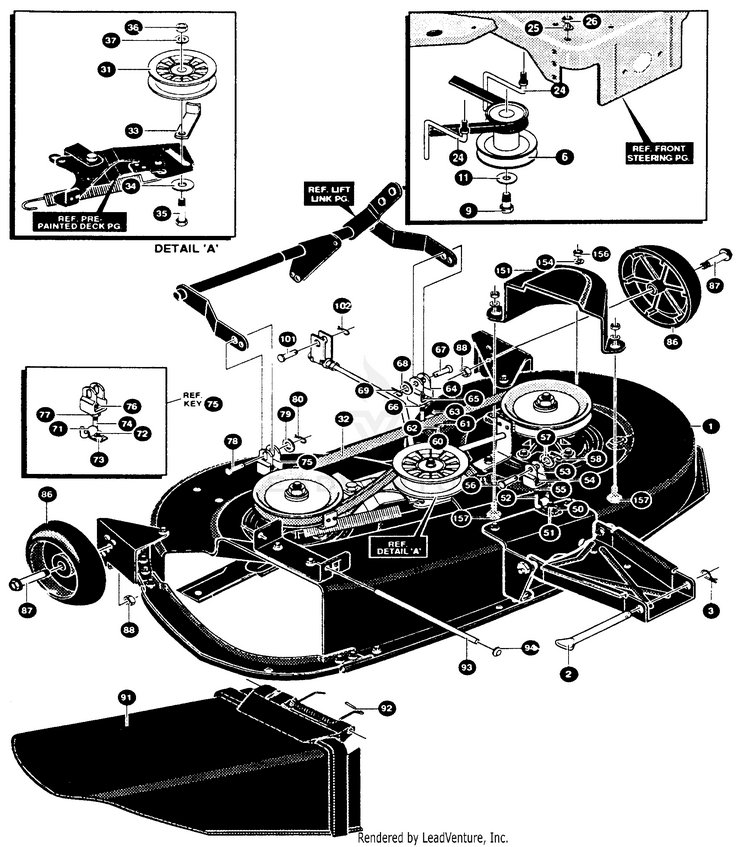

Deck (B)

...
...
2
ROD DRAWBAR HUS-302963
...
3
PIN, HAIR.091 DIAX1.62LG HUS-56180
...
6
PULLEY,ENG HUS-327615888
...
9
SCREW, ENGINE PULLEY HUS-327616888
...
11
WASHER, REGSPTLK.459X.78X.12 HUS-120383
...
24
GUIDE, BELT, RIDER HUS-300440
...
25
WASHER, REGINTLK.320X.61X.03 HUS-138538
...
26
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
31
PULLEY, IDLER BFF 4.00 WIDE FL HUS-310326
...
32
BELT, V 5L 82.00 DECK DR HUS-48044
...
33
RETAINER, BELT HUS-1346
...
34
WASHER, FLAT .375X .88X.082 HUS-446363
...
35
BOLT, 3/8-16X2.00 CARR HUS-57325
...
36
NUT, 3/8-16 REGHe X HUS-120377
...
37
WASHER, REGSPTLK.393X.68X.10 HUS-120382
...
50
CLIP, 40/46 HANGER HUS-319868
...
51
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
52
ROD, 40" REAR DECK LIFT HUS-309615
...
53
CLEVIS HUS-304443
...
54
NUT, 1/2-13 .458 SO HUS-109527
...
55
NUT, 1/2-13 HEXJAM HUS-120238
...
56
PIN, CLEVIS 375DIA.X .81 LG HUS-300317
...
57
WASHER, FLAT .406X .81X.065 HUS-120394
...
58
PIN, HAIR.091 DIAX1.62LG HUS-56180
...
60
CLIP, 40/46 HANGER HUS-319868
...
61
BOLT, 5/16-18X 5/16-18X.75 CARR HUS-57101
...
62
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
63
ROD, 40" REAR DECK LIFT HUS-312302
...
64
CLEVIS HUS-304443
...
65
NUT, 1/2-13 .458 SO HUS-109527
...
66
NUT, 1/2-13 HEXJAM HUS-120238
...
67
PIN, CLEVIS .375DIA.X .81 LG HUS-300317
...
68
WASHER, FLAT .406X .81X.065 HUS-120394
...
69
PIN, HAIR.091 DIAX1.62LG HUS-56180
...
71
CLIP, 40/46 HANGER HUS-319868
...
72
SCREW, 5/16-18X .75 HHC HUS-180077
...
73
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
74
ROD, 40" REAR DECK LIFT HUS-309615
...
75
CLEVIS, SLOT EURO HUS-305283
...
76
NUT, 1/2-13 .458 SO HUS-109527
...
77
NUT, 1/2-13 HEXJAM HUS-120238
...
78
PIN, CLEVIS.375DIA.X .81 LG HUS-300317
...
79
WASHER, FLAT .406X .81X.065 HUS-120394
...
80
PIN, HAIR 091 DIAX1.62LG HUS-56180
...
86
GAUGE WHEEL,EURO 6.000DX1.38WD HUS-302611
...
87
BOLT, 500X1.390 HHSH 3/8-16 HUS-23763
...
88
NUT, 3/8-16 REGHXCTRLK HUS-1499
...
91
CHUTE DEFLECTOR 40", 42" & 43" HUS-304422
...
92
SPRING,TORSION CHUTE DEFLECTOR HUS-314975
...
93
ROD, PIVOT DECK..25 HUS-304424
...
94
NUT, PUSH ON CAP.312 OD HUS-3535
...
101
PIN, CLEVIS .375DX.81 LG HUS-49332
...
102
PIN, HAIR .091 DIAX1.62LG HUS-56180
...
151
GUARD, BELT LH PLASTIC HUS-328257
...
152
SCREW, 5/16-18X .75 HHC HUS-180077
...
154
WASHER, FLAT .344X .69X.065 HUS-120393
...
156
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
157
BOLT, 5/16-18X 63 CARR HUS-57072
