Husqvarna LT 18542 A (954571748) (2003-11) Ride Mower

Model: LT 18542 A (954571748) (2003-11)

Back To Assemblies

Save Part Not Listed?
product name

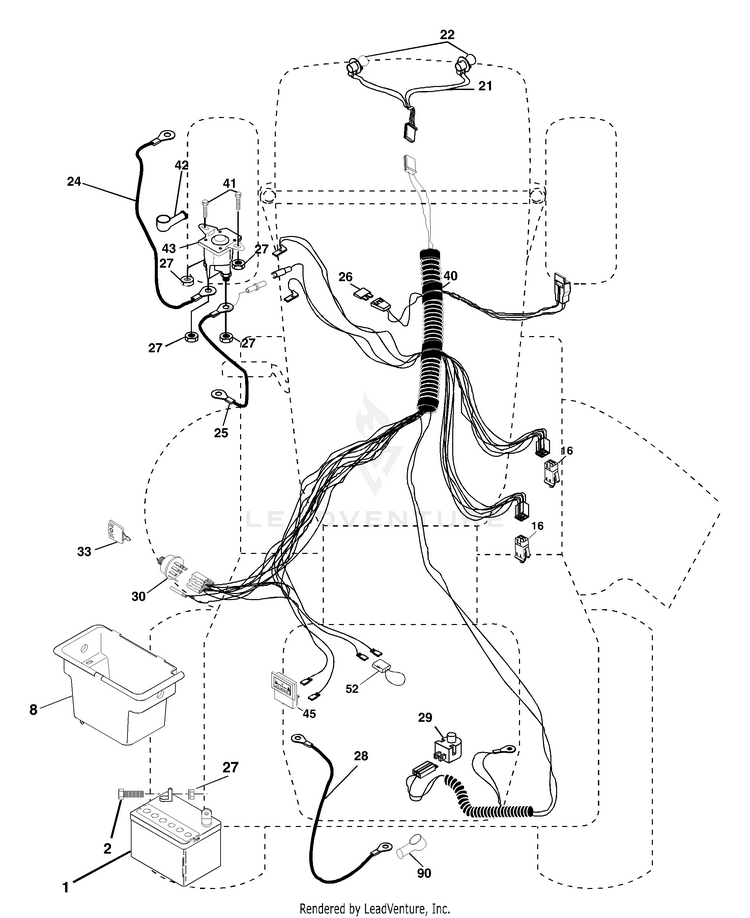

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
BOX.BATTERY.FENDER HUS-532176689
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY HUS-532146147
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE T HUS-532004207
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS.IGNITION HUS-532179720
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
52
WIRE PROTECTION LOOP HUS-532141940
...
90
COVER.TERMINAL.BATTERY HUS-532435395
