Husqvarna LT 18542 A (954571748) (2003-11) Ride Mower

Model: LT 18542 A (954571748) (2003-11)

Back To Assemblies

Save Part Not Listed?
product name

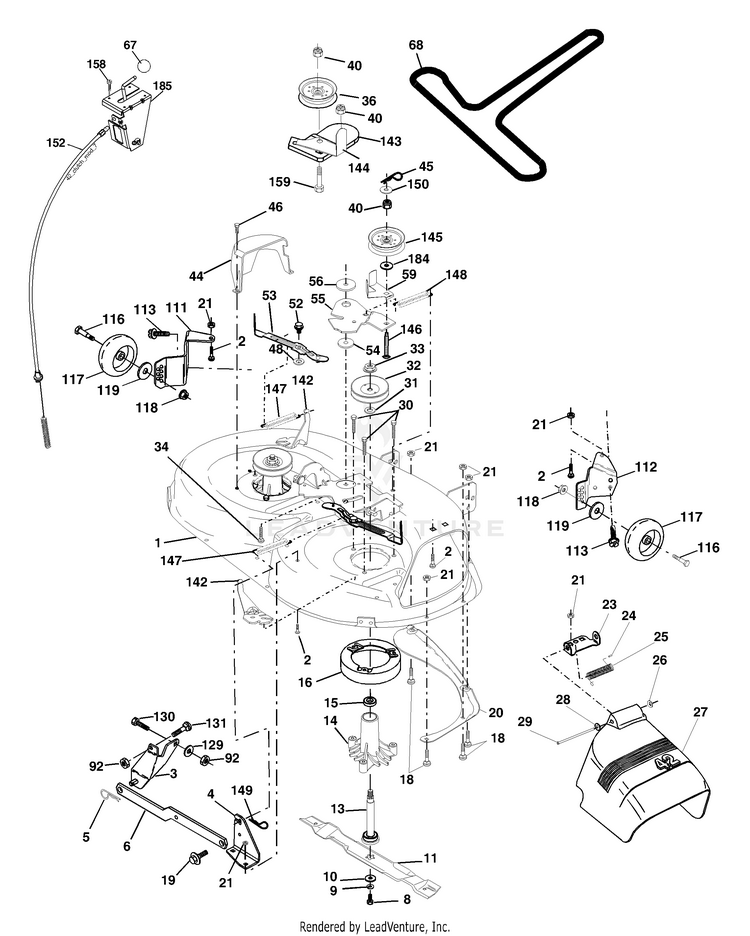

Mower Deck

...
...
1
DECK.SVC.42".BLACK HUS-532176027
...
2
GSPW Bolts HUS-595901601
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
4
BRACKET SWAY BAR 42" DECK HUS-532165460
...
5
RETAINER-SPRNG RB HUS-532124670
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE (The following blades are available) HUS-532140296
...
11
42" MULCH BLADE (For mulching mowers only) HUS-594892701
...
11
BLADE.42"MULCH.PREMIUM (For better wear when mulching) HUS-594893101
...
11
42" HI-LIFT BLADE (For bagging or discharging) HUS-532138971
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BEARING HUS-532110485
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
18
Bolts HUS-596136401
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
21
Hardware HUS-596040501
...
23
SERVICE KIT BRKT HUS-529845901
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING TORSION HUS-532123713
...
26
NUT PUSH M HUS-532110452
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
29
Rods HUS-595297001
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
PULLEY MANDREL HUS-532173436
...
33
Nuts HUS-596134801
...
34
GSPW Bolts HUS-596136101
...
36
CLG HUS-597025001
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
45
RETAINER M HUS-532004497
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
48
WASHER HUS-532133944
...
52
BOLT.SHOULDER.5/16-18 HUS-532139888
...
53
SERVICE KIT ARM BRAKE ASSY HUS-531168401
...
54
WASHER HUS-532178515
...
55
SERVICE KIT ARM ARM IDLER 42" HUS-531166601
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
59
SERVICE KIT GUARD HUS-531165901
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
68
BELT V SECONDARY HUS-532144959
...
92
Nuts HUS-596322601
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
113
BOLT.5/16HEX.WHS.HD HUS-817000510
...
116
Bolts HUS-596434402
...
117
WHEEL.GAUGE.STANDARD HUS-532165746
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
129
GSPH HUS-596134901
...
130
Bolts HUS-596564401
...
131
Bolts HUS-596728201
...
142
SERVICE KIT ARM SPRING BRAKE M HUS-529845801
...
143
SERVICE KIT BRACKET HUS-529844301
...
144
KEEPER BELT 42" CLUTCH HUS-532173441
...
145
PULLEY.IDLER.FLAT.PLATED HUS-532173437
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
147
SPRING HUS-532179748
...
148
IDLER RETURN SPRING HUS-532169022
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
150
Washers HUS-596204201
...
152
KIT.CLUTCH.CABLE HUS-532175067
...
158
Screws HUS-596437001
...
159
Bolts HUS-596987501
...
184
GSPH HUS-596134901
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
xx
KIT.MANDREL.ASM.3.BOLT (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included) HUS-532130794
...
xx
SERVICE DECK KIT 42" NON-TEX (Std. Deck - Order separately gauge wheel components key nos. 116-119) HUS-548102301
