Husqvarna LT 1538 D (954569776) (2003-01) Ride Mower

Model: LT 1538 D (954569776) (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

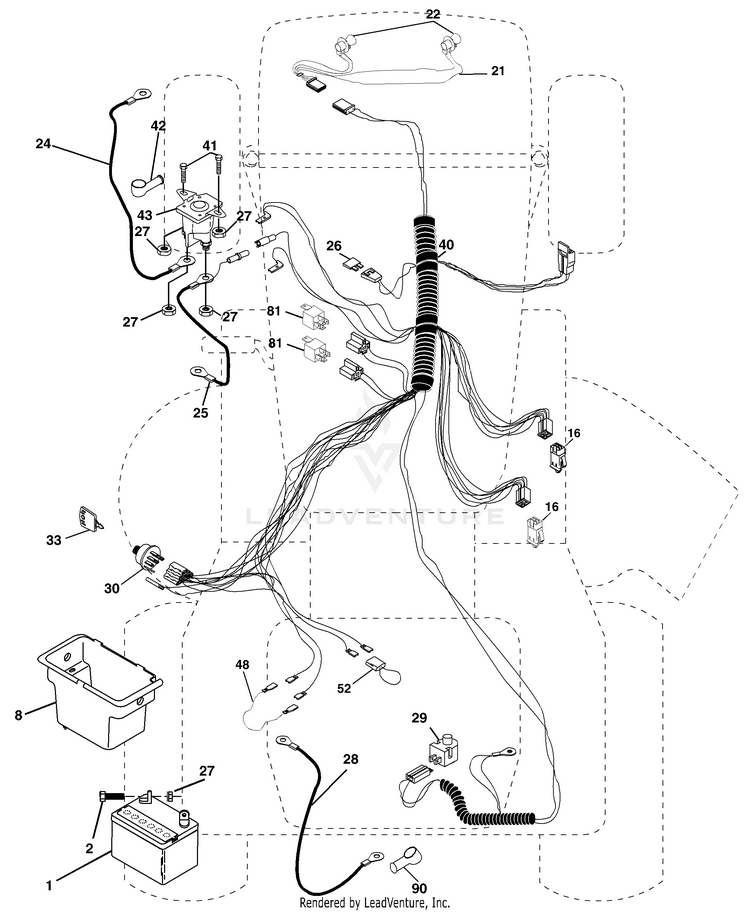

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
BOX.BATTERY.FENDER HUS-532176689
...
16
INTERLOCK SWITCH HUS-532176137
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY HUS-532146147
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE T HUS-532004207
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS IGN. HUS-532179723
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
48
ADAPTER.AMMETER HUS-532140844
...
52
WIRE PROTECTION LOOP HUS-532141940
...
81
RELAY.ASSY.T HUS-532109748
...
90
COVER.TERMINAL.BATTERY HUS-532435395
