product name

Husqvarna LT 1538 A (954569776) (2002-11) Ride Mower

Model: LT 1538 A (954569776) (2002-11)

Back To Assemblies

Save Part Not Listed?
product name

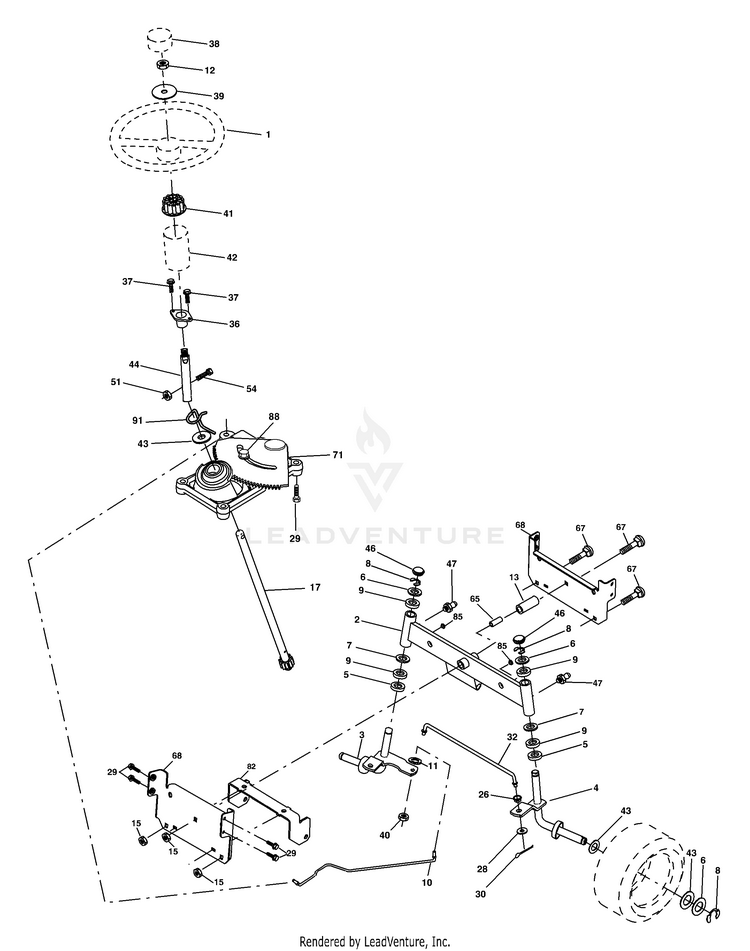

Steering Assembly

...
...
1
WHEEL.STEERING.AYP.P/L.BLACK HUS-532175904
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
5
WASHER THRUST HUS-532006266
...
6
WASHER HUS-532121748
...
7
WASHER HUS-819272016
...
8
RING CLIP HUS-812000029
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
10
DRAGLINK.15".TIRES.2001 HUS-532175121
...
11
Washers HUS-596238701
...
12
NUT.HEX.1/2-20 HUS-873940800
...
13
TUBE, PIVOT AXLE HUS-532136518
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
17
KIT.RPLMNT.SHAFT.STRG. HUS-532407600
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
28
WASHER HUS-819131414
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
30
Pins HUS-596029501
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
36
KIT.BUSHING.STEERING HUS-532155106
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
38
CAP.WHEEL.STEERING.BLACK HUS-532175905
...
39
WASHER 9/16"ID, 2 3/8"OD HUS-819183812
...
40
NUT HUS-873610600
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
42
BOOT.STEERING.SHAFT.BLACK HUS-532169633
...
43
WASHER HUS-532121749
...
44
KIT.RPLMNT.SHAFT.STRG. HUS-532407600
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
51
NUT.CROWNLOCK.1/4-28 HUS-873540400
...
54
Bolt Hex 1/4-28 Unf x 1-1/4 HUS-871130420
...
65
SPACER.BRACE.AXLE HUS-532414736
...
67
BOLT CARRIAGE HUS-872110618
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
71
SERVICE KIT STEERING ASM HUS-531167801
...
82
SERVICE.KIT BRACKET HUS-531170201
...
85
FASTENER.XMAS.TREE HUS-532133835
...
88
BOLT, SHOULDER 7/16-20 HUS-532175118
...
91
CLIP.STEERING HUS-532175553
