Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

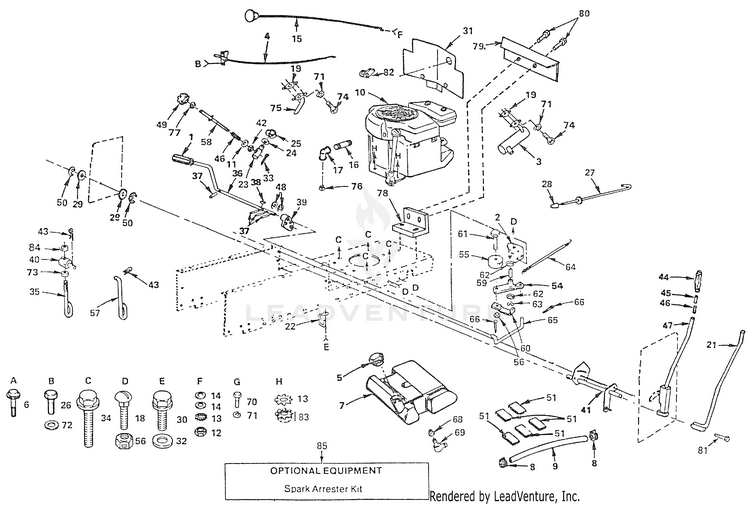

Power & Mechanical Controls Group

...
...
1
PAD, FOOT PEDAL HUS-510089501
...
2
BRKT ASM HUS-532123102
...
3
MUFFLER HUS-532125799
...
4
CONTROL.TH/CH.RH.BLK.FLG.26 HUS-532132752
...
5
FUEL CAP ASS'Y HUS-532124462
...
6
Screw - Hex Hd. Thd. Cutting 8-32 x 3/8, Type T HUS-817020806
...
7
FUEL TANK LT HUS-532106020
...
8
HOSE CLAMP HUS-532123487
...
9
FUEL LINE 42" HUS-532008542
...
10
Engine 14 HP, Type No. 1211-01 HUS-532400707
...
11
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
16
Std. Pipe Nipple HUS-813280336
...
17
VALUE.OIL.DRAIN HUS-532428287
...
18
Bolt Rd. Hd Sq. Neck 3/8 16 x 3/4 HUS-872140606
...
19
GASKET HUS-532008545
...
21
LEVER ROD LT HUS-532121006
...
22
KEEPER BELT HUS-532136715
...
23
TRUNION LT HUS-532110810
...
24
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
25
Klip Ring HUS-812000037
...
26
Bolts HUS-596582501
...
27
ROD NLA HUS-532105844
...
28
PLUNGER CAP HUS-532071673
...
29
Washer 29/32 x 1 - 1/4 x 16 Ga HUS-819292016
...
30
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
31
Baffle Vertical HUS-532104917
...
32
GSPH HUS-596134901
...
33
Pins HUS-596917601
...
34
BOLT, HEX HUS-747810100
...
35
LINK ADJ T HUS-532110448
...
36
SHAFT FOOT PEDAL HUS-532122424
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
39
BEARING.NYLON HUS-532120183
...
40
LIFT TRUNION HUS-532132793
...
41
SHAFT LIFT HUS-532124516
...
42
NUT T HUS-532110807
...
43
RETAINER-SPRNG RB HUS-532124670
...
44
GRIP HUS-532109413
...
45
PLUNGER BUTTON KIT HUS-532125925
...
45
PLUNGER BUTTON KIT HUS-532125925
...
46
SPRING HUS-532002876
...
47
LIFT LEVER (Include Key No. 21) HUS-532123096
...
48
Washers HUS-596933401
...
49
HDLE ADJ LIFT HUS-532121891
...
50
E-RING HUS-812000022
...
51
PAD-SPACER T HUS-532006431
...
54
ARM IDLER HUS-532123789
...
55
PULLEY IDLER HUS-532139245
...
56
Nuts HUS-596322601
...
57
LIFT LINK LT HUS-532110029
...
58
ROD LIFT LT HUS-532110729
...
59
BEARING LT (2 2) HUS-532105706
...
60
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
61
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
62
WASHER LT HUS-532110812
...
63
KLIP RING HUS-812000039
...
64
SPRING, RETURN LT HUS-532105709
...
65
LINK.CLUTCH.7.66.2005 HUS-532199652
...
66
Pins HUS-596029501
...
68
BUSHING OUTLET T HUS-532003645
...
69
FUEL TANK STEM GT HUS-532008710
...
70
Screws HUS-596437001
...
71
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
73
NUT.ASF.HEX.7/16 HUS-873610700
...
74
Screws HUS-596230901
...
75
PIPE NLA HUS-532100229
...
76
Plug - Oil Drain HUS-532091084
...
77
NUT.HEX.3/8-16UNC HUS-873220600
...
78
BRACKET NLA HUS-532110013
...
79
HEAT SHIELD NLA HUS-532110012
...
80
Screws HUS-596030701
...
81
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
82
INSUL CLIP T HUS-532005320
...
83
NUT HUS-873510600
...
84
NUT.ASF.HEX.7/16 HUS-873610700
...
85
SPARK ARRESTOR KIT HUS-532674380
