Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

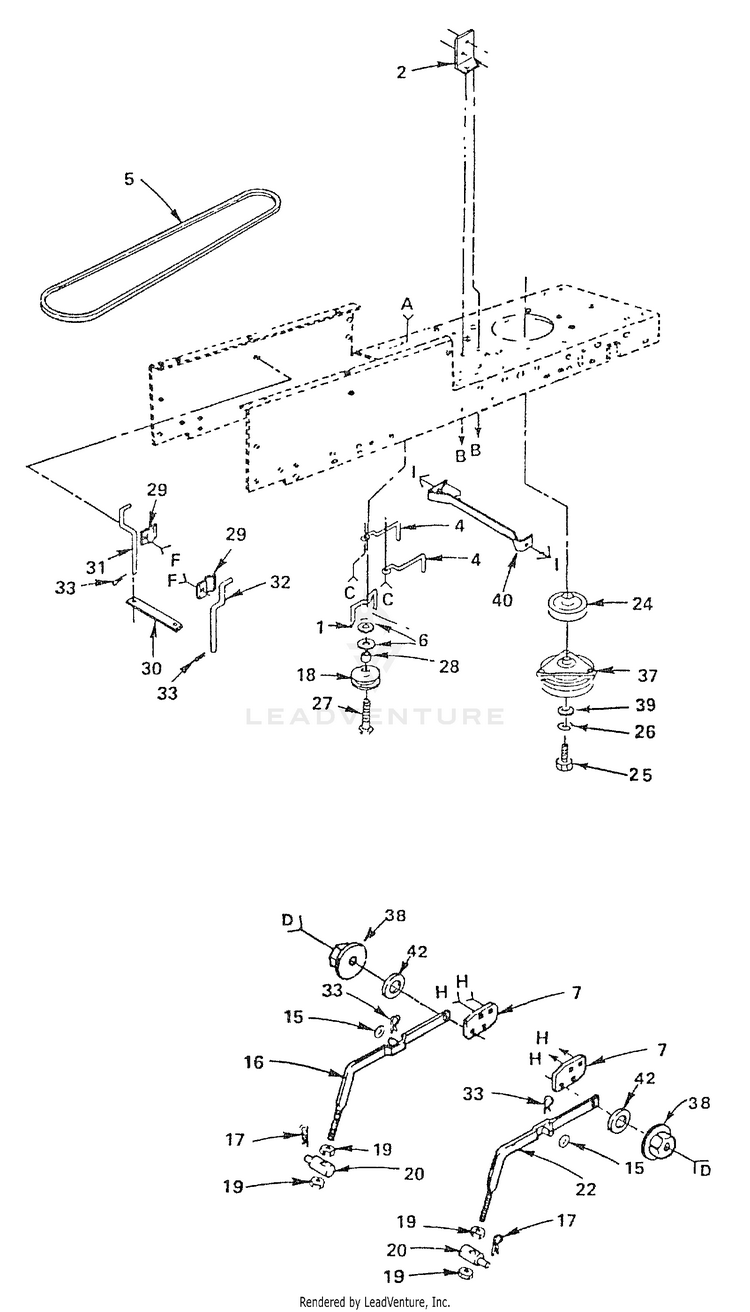

Drive Group

...
...
1
BELT KEEPER LT NLA HUS-532109070
...
2
BRACKET LT HUS-532108236
...
4
KEEPER,BLT ENG LT HUS-532105730
...
4a
KEEPER BELT ENGLH HUS-532121218
...
5
BELT HUS-532125907
...
6
GSPH HUS-596134901
...
7
BRACKET,SUSPEN LT HUS-532105864
...
15
Washers HUS-596040101
...
16
LH SUSP ARM ASM HUS-532121599
...
17
SPRING H HUS-532009135
...
18
PULLEY.IDLER.FLAT HUS-532123674
...
19
Nuts HUS-596433401
...
20
TRUNNION HUS-532175689
...
22
RH SUSP ARM ASM HUS-532121598
...
24
PULLEY CLU ELEC HUS-532140189
...
25
BOLT, HEX HUS-747810100
...
26
Washers HUS-596238901
...
27
BOLT HUS-874760644
...
28
SPACER T HUS-532124965
...
29
CLAMP LT HUS-532106190
...
30
STRAP LOCATOR HUS-532123770
...
31
KEEPER BELT LH NLA HUS-532123662
...
32
KEEPER BELTRH NLA HUS-532123663
...
33
COTTER PIN HUS-532004921
...
37
KIT CLUTCH ELECT REPL HUS-532142600
...
38
Nuts HUS-596322601
...
39
WASHER HUS-532126197
...
40
RETAINER KIT HUS-532109172
...
41
WASHER T HUS-819382616
...
42
WASHER T HUS-532110739
