Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

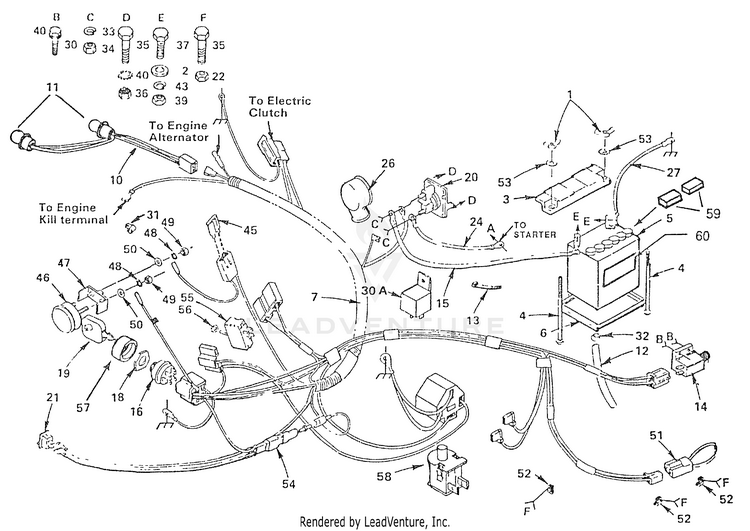

Electrical

...
...
1
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
2
Washers HUS-596582301
...
3
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
4
BOLT HUS-872240460
...
5
BATTERY.DRY.30.AMP HUS-532123899
...
6
TRAY.BATTERY HUS-532007603
...
7
HARNESS IGNITION NLA (includes item 30 A) HUS-532123827
...
10
HARNESS T HUS-532110859
...
11
LIGHTBULB HUS-532004152
...
12
PLASTIC TUBE HUS-532007697
...
13
WIRE TIE HUS-532007192
...
14
SWITCH-INTER. GT HUS-532104445
...
15
CABLE,BATTERY HUS-532124503
...
16
KIT.SWITCH.IGNITION HUS-532158913
...
18
NUT IGNITION HUS-532124211
...
19
KEY.MOLDED.GENERIC HUS-532122147
...
20
KIT SOLENOID .95 HUS-532146154
...
21
SWITCH LT HUS-532110712
...
22
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
24
BATTERY CABLE HUS-532004799
...
26
COVER.TERMINAL.RED HUS-532154336
...
27
BATTERY CABLE HUS-532004799
...
30
SCREW HUS-817021008
...
30A
RELAY.ASSY.T HUS-532109748
...
31
CLIP T HUS-532002751
...
32
HOSE CLAMP T HUS-532109596
...
33
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
34
NUT.HEX..25-20.UNC HUS-532050675
...
35
Screws HUS-596437001
...
36
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
37
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
39
NUT.HEX..25-20.UNC HUS-532050675
...
40
Washer-Lock 1/4 Ext. Tooth HUS-811050400
...
43
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
45
FUSE HYT HUS-532108824
...
46
AMMETER.ROUND.15 AMP HUS-532124900
...
47
AMMETER BRACKET HUS-532131708
...
48
LOCKWASHER #10 HUS-810071000
...
49
NUT LT HUS-873911000
...
50
WASHER HUS-819070818
...
51
LOOP-WIRE YTV HUS-532102501
...
52
CLIP T NLA HUS-532124995
...
53
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
54
DIODE HUS-532106315
...
55
SWITCH-PTO HUS-532004021
...
56
HEX NUT T (1 2) HUS-532004022
...
57
KIT.IGN.BOOT/NUT HUS-584446901
...
58
SWITCH.SNAPMOUNT.NC HUS-532421062
...
59
CAP BATTERY NLA HUS-532121264
...
60
DECAL NLA HUS-532121549
