Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

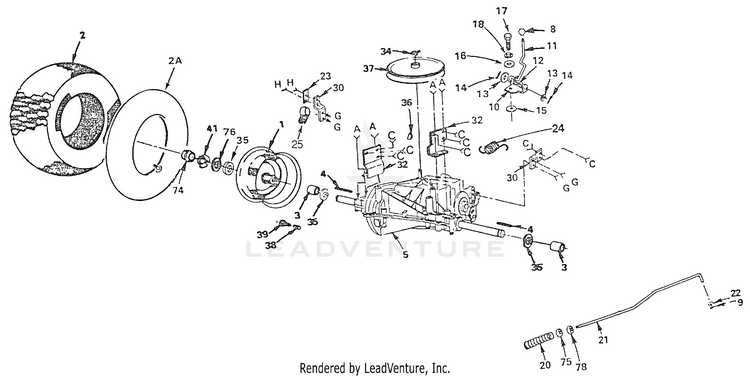

Transaxle And Rear Wheel

...
...
1
RIM.ASM.8X7.REAR.SILVER HUS-532106108
...
2
TIRE.18X9.5-8 TURF SAVER HUS-532420531
...
2A
TUBE - UNIVERSAL FOR 8" RIM (not furnished with Tractor) HUS-532007152
...
3
SPACER LT HUS-532109502
...
4
SQUARE KEY HUS-532123583
...
5
GEAR BOX HUS-532109978
...
8
KNOB.DUCKHEAD.1/2 HUS-532121274
...
9
Pins HUS-596029501
...
10
PLATE SHIFT LT HUS-532106919
...
11
ROD HUS-532124379
...
12
SPRING LT HUS-532105700
...
13
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
14
Pins HUS-596029601
...
15
WASHER HUS-532106362
...
16
Washers HUS-596039801
...
17
Bolts HUS-596136601
...
18
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
20
SPRING, BRAKE ROD HUS-532151332
...
21
ROD HUS-532131867
...
22
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
23
PLATE-STRAP LT HUS-532106157
...
24
SPRING,BRAKE RETURN HUS-532146682
...
25
CLIP T HUS-532002751
...
30
BRACKET NLA HUS-532105842
...
32
BRACKET LT HUS-532109167
...
34
RETAINING RING LT HUS-812000028
...
35
WASHER (2 to 4 as required) HUS-532121749
...
36
KEY STD (1373) DANA HUS-532125096
...
37
PULLEY TRANS HUS-532123666
...
38
VALVE CAP HUS-532059192
...
39
VALVE STEM LT HUS-532065139
...
41
E-RING LT HUS-812000001
...
74
CAP,HUB REAR HUS-532124578
...
75
Nuts HUS-596322601
...
76
WASHER HUS-532121748
...
78
NUT.HEX.3/8-16UNC HUS-873220600
