Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

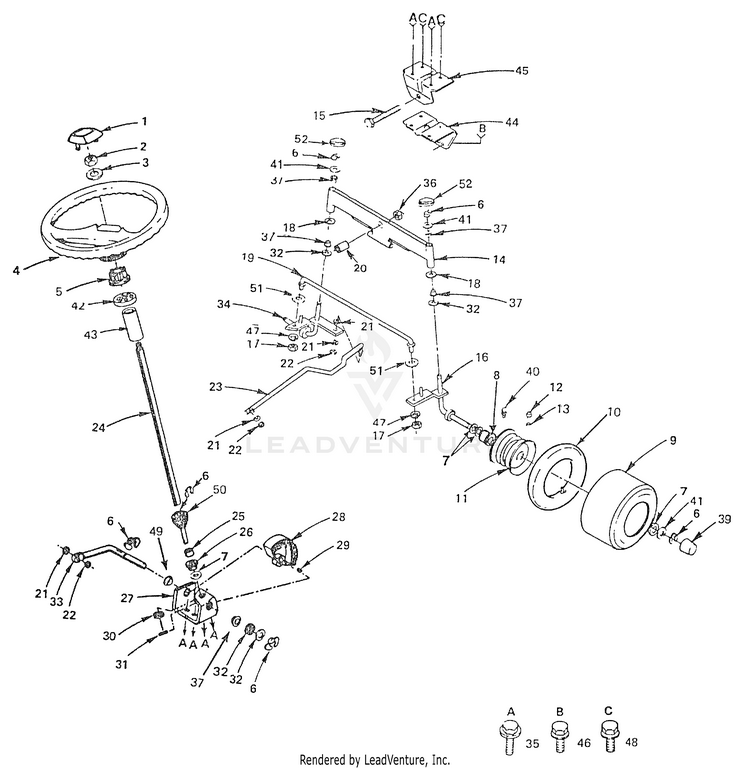

Steering, Front Axle And Wheels

...
...
1
INSERT,STR WHEEL HUS-532124416
...
2
NUT.HEX.1/2-20 HUS-873940800
...
3
WASHER HUS-532100712
...
4
STEERING WHEEL HUS-532124415
...
5
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
6
RING CLIP HUS-812000029
...
7
WASHER HUS-532121749
...
8
BEARING.FLANGE HUS-532009040
...
9
TIRE.15X6-6.TURF.SAVER.FRONT HUS-532122073
...
10
TUBE.5.3/4.5/6 (not furnished with Tractor) HUS-532059904
...
11
RIM.ASM.6X4.5.FRONT.SILVER (Inc. 2 each Key No. 8) HUS-532106732
...
12
VALVE STEM LT HUS-532065139
...
13
VALVE CAP HUS-532059192
...
14
AXLE ASSY T HUS-532108075
...
15
BOLT LT HUS-874761060
...
16
SPINDLE HUS-532130524
...
17
HUS-873610500
...
18
WASHER HUS-819272016
...
19
ROD.ASM.TIE.BALL.JOINT.NOVAN HUS-532170162
...
20
KIT-AXLE HUS-532155134
...
21
Washers HUS-596238701
...
22
NUT HUS-873610600
...
23
LINK-DRAG LT HUS-532105727
...
24
STEERING SHAFT T HUS-532109557
...
25
SHAFT SPACER LT HUS-532074580
...
26
Bushing - Steering Rod HUS-871253208
...
27
KIT STEERING LT HUS-532109432
...
28
SECTOR GEAR HYT HUS-532108684
...
29
KEY-WOODRUFF LT HUS-532106126
...
30
WASHER YTV HUS-532101930
...
31
PIN.ROLL.3/16 X 1" HUS-532001572
...
32
WASHER THRUST HUS-532006266
...
33
ROD STEERING T HUS-532108683
...
34
SPINDLE ASM LH HUS-532156483
...
35
SCREW SPECIAL HUS-532122819
...
36
LOCKNUT M HUS-583612401
...
37
BEARING.STEERING.COLUMN HUS-532003366
...
39
COVER.FRONT.WHEEL HUS-532124577
...
40
FITTING LT. HUS-532000278
...
41
WASHER HUS-532121748
...
42
SPACER LT HUS-532106943
...
43
TUBE YT HUS-532106945
...
44
SUP-SADDLE FRT LT HUS-532105664
...
45
SUPPORT-SADDLE LT NLA HUS-532105663
...
46
Screws HUS-596030701
...
47
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
48
SCREW 3/8-16X1 HUS-817000616
...
49
NYLINER T (7283A) HUS-532109816
...
50
GEAR PINION T HUS-532108685
...
51
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
52
CAP.SPINDLE.BLACK HUS-532121232
