Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

Mower

...
...
1
V-BELT T HUS-532106085
...
2
DECK HOUSING 38" HUS-532144725
...
3
RUNNER.RH.38 HUS-532128772
...
4
Nuts HUS-596322601
...
5
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
7
SERVICE KIT BRACKET BRACKET HUS-531155201
...
8
NUT PUSH M HUS-532110452
...
9
SPRING TORSION HUS-532123713
...
10
ROD-HINGE T HUS-532106735
...
11
SHIELD.DEFLECTOR.MOWER.38.BL HUS-532106736
...
12
DECAL LT NLA HUS-532105814
...
13
CAP-SLEEVE LT HUS-532105304
...
14
LINK,PARALLEL HUS-532105662
...
15
ROD,FRT PARALL LT HUS-532105744
...
16
COTTER PIN HUS-532004921
...
18
HINGE PIN T HUS-532109835
...
20
Hardware HUS-596040501
...
21
BRACKET RH LT NLA HUS-532109598
...
22
BRACKET LH T HUS-532109597
...
24
DECAL YT HUS-532109820
...
25
SUPPORT ARM T HUS-532109503
...
26
STOP T HUS-532109504
...
27
DECAL HUS-532126192
...
29
BOLT.375-16 HUS-874930632
...
30
ARM IDLER HUS-532123552
...
31
SPACER RETAINER HUS-532106902
...
32
PULLEY.IDLER.FLAT.MOWER.BLK.PT HUS-532121316
...
33
WASHER, WEAR LT (1 2) HUS-532106513
...
34
BRACKET LH T HUS-532109646
...
35
JACKSHAFT.38"LT HUS-532121687
...
36
SUPPORT PLATE LT HUS-532100668
...
39
BLADE 38" HUS-532143978
...
40
GSPH HUS-596134901
...
41
Washers HUS-596238701
...
42
BOLT.3/8-24X1-1/2 HUS-874610624
...
43
SPRING LT HUS-532108250
...
51
SUPPORT T HUS-532110445
...
54
BRKT, SUSP RH LT HUS-532105857
...
55
BRKT,SUSP REAR LH HUS-532108673
...
63
Washer-11/32 x 5/8 x 16 Ga. HUS-819111016
...
65
RUNNER LH HUS-532007631
...
68
DECAL WARNING HUS-532121349
...
69
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
75
BRACKET RH T NLA HUS-532109647
...
76
PIVOT PIN T HUS-532109776
...
77
ROLLER T HUS-532109729
...
78
Washers HUS-596040101
...
79
Washers HUS-596040101
...
80
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
81
Pins HUS-596029501

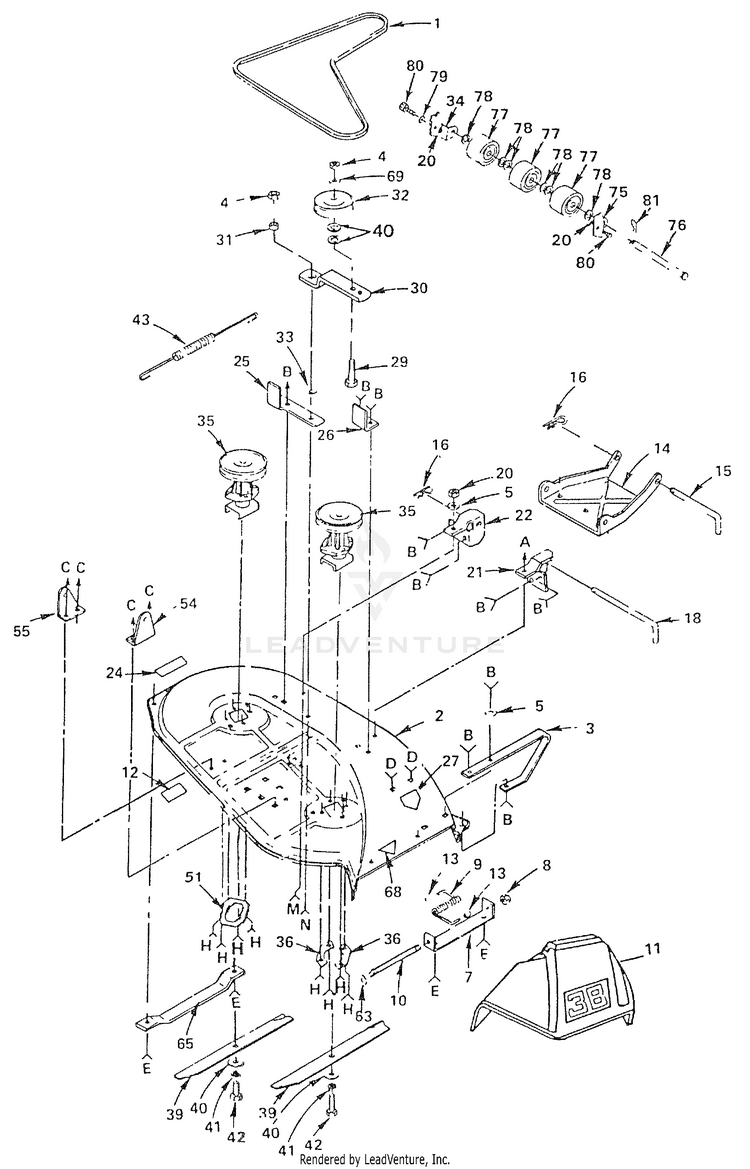

Schematic Image Zoomed
