Husqvarna LT 125 (HVLT125AE) (1990-01) Ride Mower

Model: LT 125 (HVLT125AE) (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

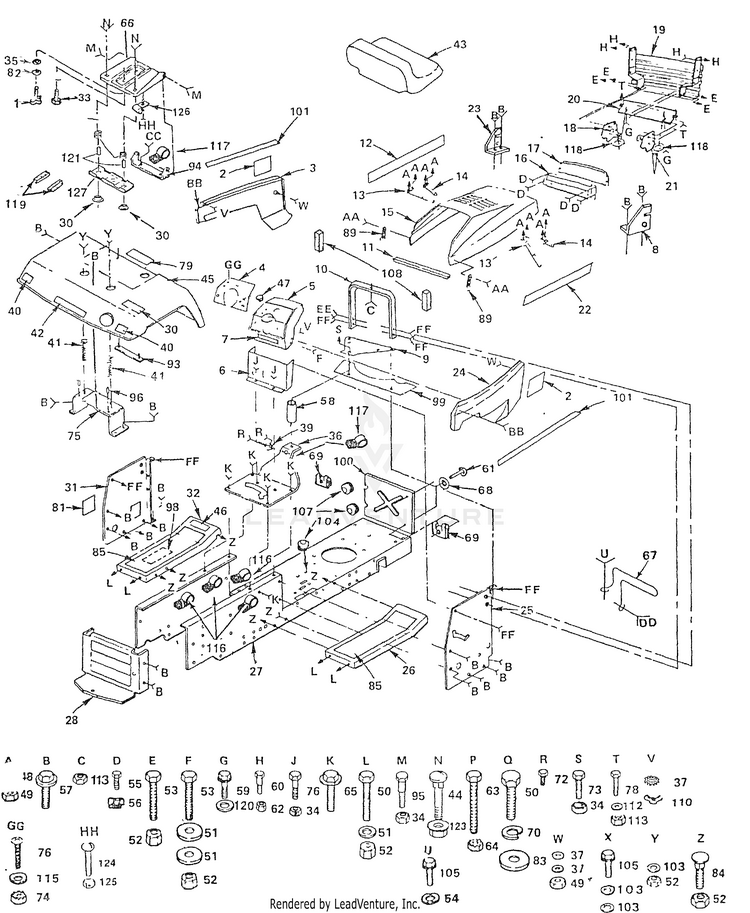

Enclosures

...
...
1
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
2
DECAL, SIDE PANEL NLA HUS-532126035
...
2a
DECAL,SIDE PAN RH HUS-532125586
...
3
Panel - Side, L.H. HUS-532124845
...
4
PLATE,DASHBOARD HUS-532124721
...
5
DASH HUS-532140452
...
6
Dash Assembly - Lower HUS-532124846
...
7
DECAL YT HUS-532109821
...
8
SUPPORT RH YTH HUS-532110853
...
9
PLATE SUPPORT T NLA HUS-532106965
...
10
SUPPORT ASS'Y HUS-532124130
...
11
STRIP FORM HUS-532121251
...
12
DECAL NLA HUS-532124297
...
13
STRAP ASSY LT HUS-532106784
...
14
STRAP ASSY LT HUS-532104618
...
15
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
16
BEZEL HUS-532124392
...
17
LENS HUS-532106395
...
18
SUPPORT LH YTH HUS-532110855
...
19
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
20
BRACKET HUS-532105419
...
21
BRACKET NLA HUS-532110854
...
22
DECAL HUS-532124298
...
23
SUPPORT LH YTH HUS-532110852
...
24
Panel - Side, R.H. HUS-532124847
...
25
PANEL LT NLA HUS-532110828
...
26
FOOTREST LT/YT/GT RH HUS-532145243
...
27
CHASSIS ASSY NLA HUS-532121277
...
28
KIT.DRAWBAR.SERVICE HUS-532145009
...
30
BUSHING HUS-532121248
...
31
Panel - Dash, L.H. HUS-532124850
...
32
FOOT REST LH HUS-532147203
...
33
BOLT,SHOULD HUS-532127018
...
34
Hardware HUS-596040501
...
35
Washers HUS-596040101
...
36
Saddle HUS-532124848
...
37
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
39
KIT.BUSHING.STEERING. HUS-532155108
...
40
REFLECTOR-TAIL YT HUS-532106202
...
41
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
42
DECAL NLA HUS-532125584
...
43
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
44
Bolt, Roundhead 1/4 - 20 x 1 1/4 HUS-872170410
...
45
FENDER HUS-532124749
...
46
DECAL HUS-532126677
...
47
PLUG BUTTON T HUS-532005479
...
48
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
49
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
50
BOLT HUS-874760612
...
51
GSPH HUS-596134901
...
52
Nuts HUS-596322601
...
53
Bolts HUS-596564401
...
54
Washers HUS-596140201
...
55
Screw - Hex Washer Hd. Tapping 10 - 16 x 5/8 HUS-817211010
...
56
HOLDER HUS-532104755
...
57
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
58
SPACER HUS-532121236
...
59
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
60
BOLT HUS-532007605
...
61
STUD NLA HUS-532105751
...
62
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
63
BOLT HUS-874760620
...
64
NUT HUS-873510600
...
65
Bolts HUS-596564001
...
66
Pan - Seat HUS-532124849
...
67
PROTECTOR NLA HUS-532108885
...
68
RETAINER LT HUS-532105838
...
69
RECEPTACLE LT HUS-532105839
...
70
Washers HUS-596238701
...
72
Screw Slftp #10-16 x 1/2 Ty-Ab HUS-817211008
...
73
Bolt-Hex 5/16-18 x 2 Gr 2 HUS-874760532
...
74
Hardware HUS-596040501
...
75
BRACKET ASM., FENDER HUS-532183569
...
76
Screw - Mach. 5/16-18 x 3/4 HUS-874180512
...
78
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
79
DECAL HUS-532120822
...
81
COVER ACCESS HUS-532121794
...
82
Washer- 17/32 x 1-1/16 x 20 Ga. HUS-819171720
...
83
GSPH HUS-596134901
...
84
Bolt - Carriage 3/8 - 16 x 3/4 HUS-872140606
...
85
STRIP FORM HUS-532121251
...
89
LATCH.HOOD. HUS-532109808
...
93
STRAP HUS-532140675
...
94
BRKT,SEAT PIVOT HUS-532126656
...
96
BOLT.SHOULDER.5/16-18 HUS-532139888
...
95
NUT-PUSH YT HUS-532105531
...
98
DECAL HUS-532109199
...
99
PLATE NLA HUS-532109740
...
100
SHIELD HEAT HYT HUS-532108105
...
101
DECAL SIDE STRIPE HUS-532121589
...
103
Washers HUS-596140201
...
104
SNAP BUSHING T HUS-532124934
...
105
SCREW 3/8-16X1 HUS-817000616
...
106
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
107
SNAP BUSHING T HUS-532009151
...
108
STRIP FORM HUS-532121251
...
109
Lock Washer 1/4 Int. Ext. HUS-811050400
...
100
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
112
Washers HUS-596204201
...
113
NUT.HEX..25-20.UNC HUS-532050675
...
115
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
116
INSUL CLIP T HUS-532005320
...
117
CLIP T HUS-532002751
...
118
WASHER HUS-819111212
...
119
STRIP FORM HUS-532121251
...
120
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
121
SPACER SPLIT HUS-532121249
...
122
SPRING HUS-532121250
...
123
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
124
SCREW ** HUS-874641008
...
125
Nut -Keps,#10-32UNF HUS-873951000
...
126
CLIP T HUS-532124967
...
127
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
