Husqvarna LT 1238 D (954567024) (2002-02) Ride Mower

Model: LT 1238 D (954567024) (2002-02)

Back To Assemblies

Save Part Not Listed?
product name

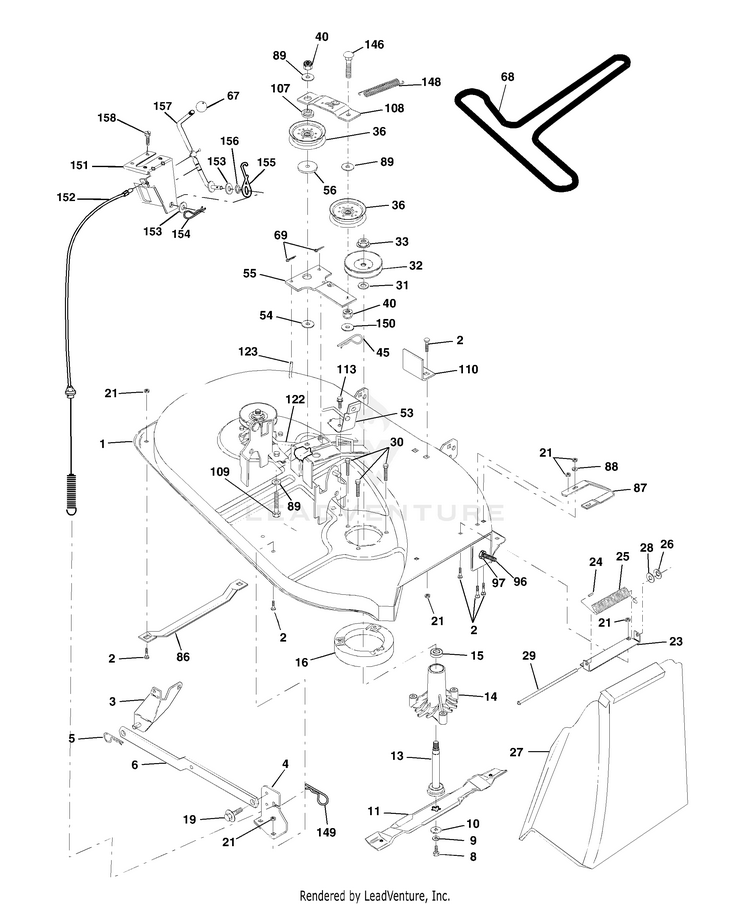

Mower Deck

...
...
1
DECK.SVC.38".BLACK HUS-532176028
...
2
GSPW Bolts HUS-595901601
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
4
BRACKET DECK SWAY BAR 38/42" HUS-532169970
...
5
RETAINER-SPRNG RB HUS-532124670
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE HUS-532140296
...
11
BLADE.HI.LIFT.38" HUS-532138497
...
13
KIT MANDREL W/NUT (Includes Key Number 6) HUS-532137646
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BEARING HUS-532110485
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
19
BOLT SHD 5/16-18 HUS-532132827
...
21
Hardware HUS-596040501
...
23
SERVICE KIT BRACKET BRACKET HUS-531155201
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING TORSION HUS-532123713
...
26
NUT PUSH M HUS-532110452
...
27
SHIELD.DEFLECTOR.MOWER.38.BL HUS-532106736
...
28
Washer 11/32 x 5/8 x 16 Gauge HUS-819111016
...
29
ROD-HINGE T HUS-532106735
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
33
Nuts HUS-596134801
...
36
CLG HUS-597025001
...
40
Nuts HUS-596322601
...
45
RETAINER M HUS-532004497
...
53
SERVICE KIT BRAKE ASSEMBLY BRA HUS-531165101
...
54
WASHER HUS-532178515
...
55
SERVICE.KIT IDLER ARM HUS-531164901
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
68
V-BELT TRIPATH HUS-532144200
...
69
Pins HUS-596917601
...
86
RUNNER LH HUS-532007631
...
87
RUNNER.RH.38 HUS-532128772
...
88
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
89
Washers HUS-596140201
...
107
SPACER.IDLER.ARM HUS-532133502
...
108
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
109
Bolt, Hex Hd 3/8-16 x 2-1/2 HUS-874760640
...
110
UPSTOP DECK FRONT 38" HUS-532142587
...
113
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
122
BRAKE ROD LH HUS-532131289
...
123
ROD.BRAKE.MANDREL.RH HUS-532169971
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
148
IDLER RETURN SPRING HUS-532169022
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
150
Washers HUS-596204201
...
151
BRACKET.CLUTCH.CABLE HUS-532169670
...
152
CLUTCH CABLE 38"/46" HUS-532172758
...
153
Washers HUS-596140201
...
154
SPRING RETAINER HUS-532169675
...
155
SPRING RETENTION LEVER HUS-532169671
...
156
SPACER.CLUTCH.CABLE HUS-532169672
...
157
ROD CLUTCH CABLE 3/8" HUS-532169669
...
158
Screws HUS-596437001
...
xx
KIT.MANDREL.ASM.3.BOLT (Includes Housing Shaft and Shaft Hardware Only - Pulley Not Included) HUS-532130794
...
xx
DECK.ASM SVC.38".BLK HUS-532171665
