Husqvarna LT 1238 D (954567024) (2002-02) Ride Mower

Model: LT 1238 D (954567024) (2002-02)

Back To Assemblies

Save Part Not Listed?
product name

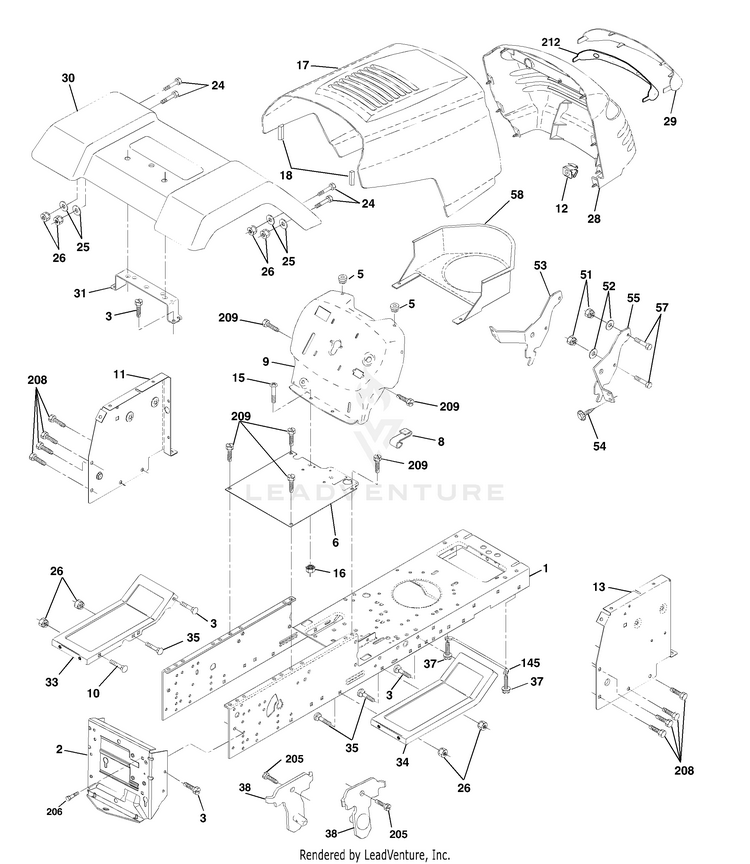

Chassis

...
...
1
CHASSIS HUS-532174620
...
2
DRAWBAR, 12GA HUS-532176554
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
6
SADDLE FLAT HUS-532155923
...
8
CLIP RETAINER HUS-532155138
...
9
DASH HUS-532171796
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
12
CLIP HUS-532145660
...
13
PANEL DASH RH HUS-532173025
...
15
Screw Mach TRHD 5/16-18uncx3/4 HUS-874180512
...
16
Hardware HUS-596040501
...
17
HOOD.STEEL.LT.ORANGE HUS-532159639
...
18
BUMPER HOOD T HUS-532126938
...
24
Bolts HUS-596564401
...
25
GSPH HUS-596134901
...
26
Nuts HUS-596322601
...
28
GRILL ASSEMBLY HUS-532179100
...
29
LENS HUS-532140273
...
30
FENDER LT HUS-532169467
...
31
BRACKET FENDER HUS-532136619
...
33
FOOTREST.LH.BLACK HUS-532182507
...
34
FOOTREST.RH.BLACK HUS-532182508
...
35
Bolts HUS-596136001
...
37
Screws HUS-596030701
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
52
Washers HUS-596135301
...
53
BRACKET.GRILLE.LH HUS-532144697
...
54
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
55
BRACKET HUS-532144696
...
57
Screws HUS-596230901
...
58
AIR DUCT P/L/LT HUS-532150127
...
145
ROD.PIVOT.HOOD HUS-532409167
...
205
Bolts HUS-596564001
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
212
INSERT, LENS HUS-532174503
...
xx
PLUG BUTTON T HUS-532005479
