Husqvarna LT 120 (954140002B) (1997-12) Ride Mower

Model: LT 120 (954140002B) (1997-12)

Back To Assemblies

Save Part Not Listed?
product name

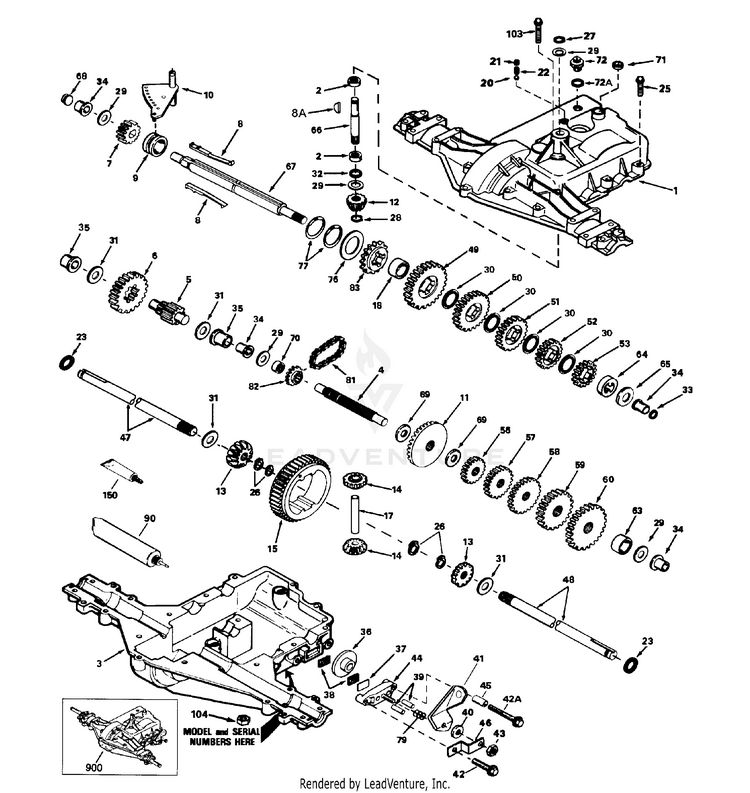

Peerless Transaxle

...
...
1
Cover, Transaxle HUS-772108A
...
2
Bearing, Needle HUS-780086
...
3
Case, Transaxle HUS-770102A
...
4
Shaft, Counter HUS-776260
...
5
Shaft and Pinion Assembly, Output HUS-776219B
...
6
Gear, Output HUS-778139
...
7
Gear, Spur, 15 Teeth HUS-778136
...
8
Key, Shift HUS-792136A
...
8A
Key, Woodruff HUS-792047
...
9
Collar, Shifter HUS-784352
...
10
Rod and Fork Assembly, Shift HUS-784355
...
11
Gear, Bevel, 42 Teeth HUS-778229
...
12
Bevel Pinion, Input HUS-778113A
...
13
Gear, Bevel HUS-778221
...
14
Gear, Bevel Pinion HUS-778068
...
15
Gear, Ring HUS-778260
...
17
Pin, Drive HUS-786139
...
18
Spacer, Neutral HUS-786102
...
20
Ball, Steel 5/16" diameter HUS-792077
...
21
Set Screw 3/8-16 x 3/8 HUS-792078
...
22
Spring HUS-792079
...
23
Ring, Seal HUS-788061
...
25
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 HUS-792073
...
26
Ring, Retainer (4 Required, Package of 2) HUS-792125
...
27
Ring, Retainer HUS-792035
...
28
Ring, Retainer HUS-788040
...
29
Washer, Thrust HUS-780072
...
30
Washer, Thrust HUS-780108
...
31
Washer HUS-780001
...
32
"O" Ring HUS-792001
...
33
Seal, Square Cut HUS-788095
...
34
Bushing, Flanged HUS-780105A
...
35
Bushing, Flanged HUS-780118A
...
36
Disk, Brake HUS-790003
...
37
Plate, Brake Pad HUS-790007
...
38
Pad, Brake HUS-799021
...
39
Pin, Dowel HUS-786026
...
40
Washer, Flat HUS-792076A
...
41
Lever, Brake HUS-790079
...
42
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 HUS-792073
...
42A
Screw 1/4-20 x 2-1/4 HUS-792085A
...
43
Locknut 5/16-24 HUS-792075
...
44
Holder, Brake Pad HUS-790025
...
45
Spacer HUS-786066
...
46
Bracket, Brake Lever HUS-786086
...
47
Axle 11-5/16" long HUS-774690
...
48
Axle 16-1/2" long HUS-774691
...
49
Gear, Spur, 37 Teeth, Steel (1 st) HUS-778215
...
50
Gear, Spur, 30 Teeth (2 nd) HUS-778124A
...
51
Gear, Spur, 25 Teeth (3 rd) HUS-778123A
...
52
Gear, Spur, 22 Teeth (4 th) HUS-778122A
...
53
Gear, Spur, 19 Teeth, Steel (5 th) HUS-778273
...
56
Gear, Spur, 12 Teeth (1 st) HUS-778230
...
57
Gear, Spur, 20 Teeth (2 nd) HUS-778126A
...
58
Gear, Spur, 25 Teeth (3 rd) HUS-778127A
...
59
Gear, Spur, 28 Teeth (4 th) HUS-778128A
...
60
Gear, Spur, 31 Teeth (5 th) HUS-778163
...
63
Spacer HUS-786071
...
64
Spacer HUS-786072
...
65
Washer, Thrust HUS-780109
...
66
Shaft, Input HUS-776135
...
67
Shaft, Brake, 4 Keyed HUS-776315A
...
68
Plug HUS-786116A
...
69
Washer, Thrust HUS-780051
...
70
Spacer HUS-786118
...
71
Seal, Square Cut HUS-788069
...
72
Plug, Threaded 9/16-18 HUS-792165
...
72A
"O" Ring HUS-788091
...
76
Washer, Thrust HUS-780090
...
77
Ring, Retaining, Inverted (Package of 2) HUS-788078A
...
79
Spring, Brake HUS-792144
...
81
Chain, Roller (Number 41 Chain, 24 Links) HUS-786081
...
82
Sprocket, 9 Teeth (Reverse) HUS-786082
...
83
Sprocket, 18 Teeth (Reverse) HUS-786123
...
90
Grease, Bentonite, 32 Ounce Bottle HUS-788067B
...
103
Screw 1/4-20 x 2 HUS-792166
...
104
Locknut 1/4-20 HUS-792167
...
150
Gasket Eliminator (Loctite #515) HUS-510334
...
900
Replacement Transaxle HUS-794528A
