Husqvarna LT 1000-14 (1991-03) Ride Mower

Model: LT 1000-14 (1991-03)

Save Part Not Listed?
product name

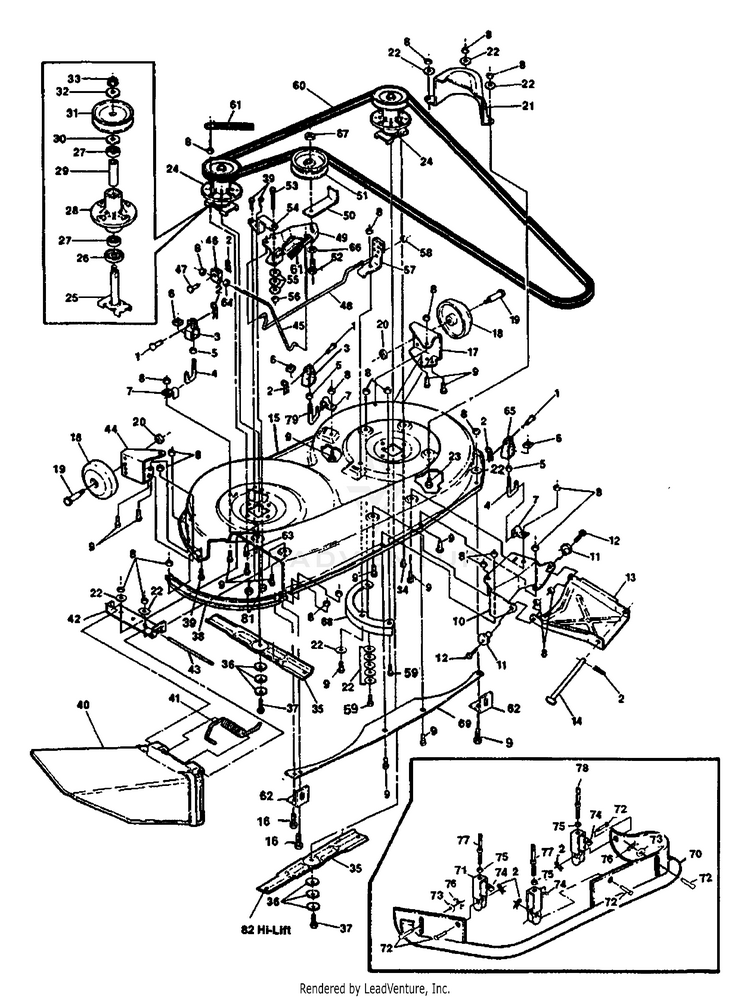

Cutter Deck Assembly

...
...
1
PIN HUS-533300317
...
2
PIN HUS-533056180
...
3
CLEVIS HUS-601000860
...
4
ROD HUS-533309615
...
5
Nuts HUS-596433401
...
6
Nuts HUS-596433401
...
7
CLIP HUS-533312701
...
8
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
9
HUS-874780510
...
10
BRACKET, FRONT HUS-533312342
...
11
NUT HUS-533058247
...
12
SCREW HUS-533122017
...
13
CHANNEL DRAWBAR HUS-533310800
...
14
ROD HUS-533302963
...
15
CUTTING DECK HUS-533328051
...
16
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
17
HOLDER, L.H. HUS-533317041
...
18
WHEEL, SD 6.00ODX1.38WD S HUS-601000170
...
19
BOLT HUS-533023763
...
20
Nuts HUS-596322601
...
21
PROTECTOR HUS-533302833
...
22
WASHER, FLAT .344X .69X. HUS-601000019
...
23
HUS-874780510
...
24
HUS-601002455
...
25
SHAFT/SADDLE HUS-601000612
...
26
DUST SHIELD HUS-601000569
...
27
BEARING, BALL HUS-601000565
...
28
QUILL HOUSING HUS-601000782
...
29
SPACER HUS-601000572
...
30
WASHER HUS-533051449
...
31
PULLEY HUS-533779059
...
32
WASHER HUS-533056365
...
33
NUT.ASF.HEX.7/16 HUS-873610700
...
34
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
35
BLADE HUS-533313316
...
36
WASHER HUS-533002483
...
37
BOLT.HEX.001X20.37-24X1.ZINC HUS-874610616
...
38
PROTECTOR HUS-533317039
...
39
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
40
CHUTE DEFLECTOR 40",42"&4 HUS-601000223
...
41
SPRING HUS-533314975
...
42
HOLDER HUS-533317017
...
43
PIN HUS-533304424
...
44
HOLDER, R.H. HUS-533317018
...
45
ROD HUS-533303072
...
46
PLATE HUS-533305284
...
47
PIN HUS-533049332
...
48
ROD HUS-533302714
...
49
ARM HUS-533304414
...
50
HOLDER HUS-533001346
...
51
PULLEY, IDLER BFF 4.00 WI HUS-601000391
...
52
Bolts HUS-596136301
...
53
SCREW HUS-533304420
...
54
HOLDER HUS-533302363
...
55
GSPH HUS-596134901
...
56
Nuts HUS-596322601
...
57
BRAKE HUS-533304118
...
58
RP NUT HUS-601002318
...
59
Screws HUS-595305701
...
60
BELT, V 5L 82.00 DECK DR HUS-601000558
...
61
SPRING, CLUTCH HUS-601000212
...
62
ROD HUS-533057217
...
63
BOLT HUS-874930522
...
64
Nuts HUS-596436301
...
65
HOLDER HUS-533302368
...
66
WASHER 3/8ä HUS-533120382
...
67
NUT.HEX.3/8-16UNC HUS-873220600
...
68
BAFFLE, DECK NLA HUS-533306477
...
69
BAFFLE NLA HUS-533306478
...
70
PROTECTOR HUS-533306885
...
71
BRACKET HUS-533009405
...
72
PIN HUS-533039522
...
73
WASHER - 25X8.5X2.3 HUS-734116541
...
74
NUT HUS-533120372
...
75
NUT.HEX..25-20.UNC HUS-532050675
...
76
PIN HUS-533137185
...
77
WIRE HUS-533306884
...
78
WIRE HUS-533306883
...
79
ROD HUS-533312302
...
81
HUS-S33044108
...
82
BLADE HUS-533313316

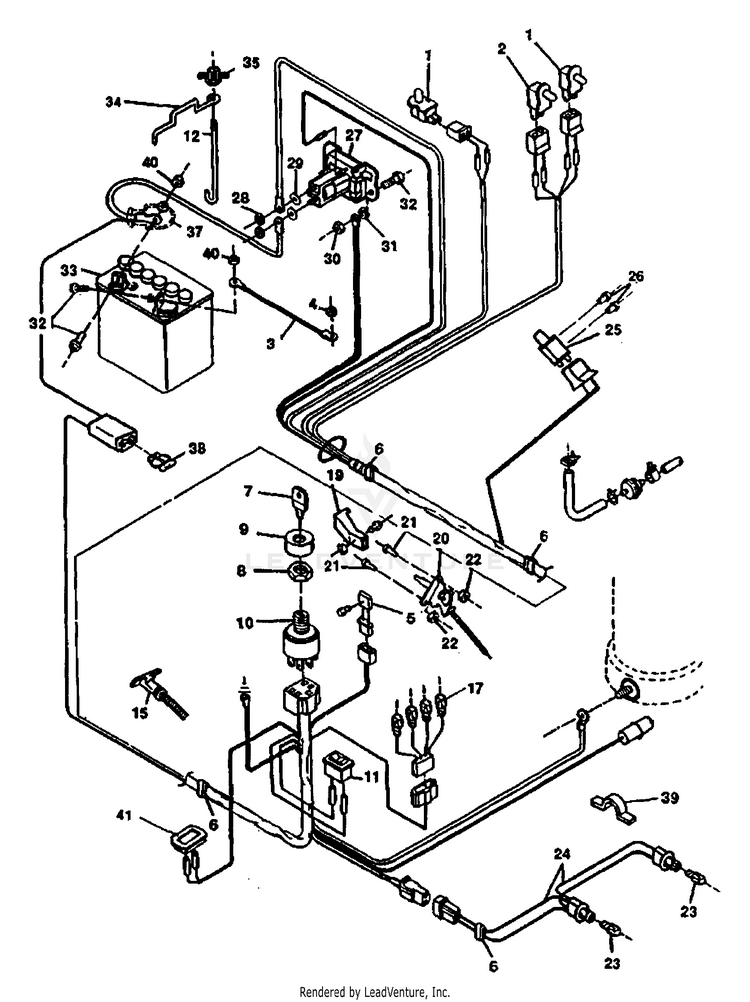

Electrical

...
...
1
SWITCH, SEAT HUS-533308187
...
2
SWITCH HUS-533326653
...
3
CABLE HUS-533055511
...
4
NUT 5/16X18 HUS-533271184
...
5
SENSOR HUS-533307056
...
6
TIE,CABLE BLACK NYLON HUS-601000628
...
7
KEY SET HUS-516844602
...
8
NUT, 5/8-32 IGN SWIT PLA HUS-601000111
...
9
COVER SWITCH KEY HUS-532141226
...
10
SWITCH HUS-533305720
...
11
SWITCH LT HUS-532110712
...
12
ROD HUS-533057551
...
15
CHOKE CONT BS TWIN ERO LO HUS-601000308
...
17
INDICATOR HUS-533057769
...
19
KNOB HUS-533304439
...
20
THROTTLE CONTROL ERO 18 T HUS-601000311
...
21
SCREW.10-24X5/8 HUS-874291010
...
22
NUT HUS-873271000
...
23
BULB HUS-533052572
...
24
CABLE HUS-533303064
...
25
SWITCH HUS-533057211
...
26
SCREW12X1/2ä HUS-533057220
...
27
HUS-531109081
...
28
HUS-873610500
...
29
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
30
NUT.HEX..25-20.UNC HUS-532050675
...
31
RP NUT HUS-601002318
...
32
Screw HUS-725236671
...
33
HUS-533558501
...
34
ROD HUS-533302912
...
35
WING NUT HUS-533310067
...
37
BOOT HUS-533308201
...
38
FUSE HUS-533302031
...
39
HOLDER HUS-533041482
...
40
NUT HUS-731231601
...
41
HUS-506891501

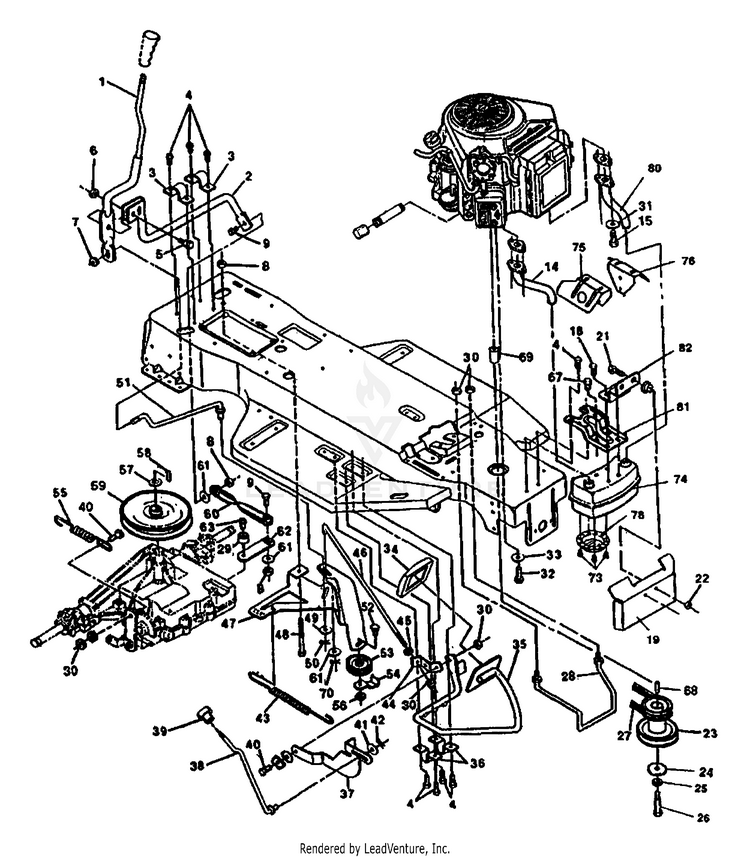

Engine Mount Assembly

...
...
1
LEVER HUS-533304406
...
2
SHIFT HUS-533304024
...
3
CLIP HUS-533302538
...
4
Screws HUS-596030701
...
5
BOLT NLA HUS-533304086
...
6
RP NUT HUS-601002318
...
7
Nuts HUS-596322601
...
8
Nuts HUS-596322601
...
9
BOLT HUS-874760620
...
14
PIPE, R.H. HUS-533305554
...
15
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
18
SCREW HUS-533995346
...
21
Bolts HUS-596136401
...
22
NUT HUS-533055273
...
23
PULLEY, ASSY ENG. HUS-533306590
...
24
WASHER HUS-533056431
...
25
LOCK WASHER HUS-533120383
...
26
SCREW HUS-533428644
...
27
BELT HUS-533303241
...
28
BELT GUIDE HUS-533310162
...
29
WASHER HUS-533057157
...
30
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
31
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
32
BOLT HUS-874760620
...
33
WASHER HUS-533138489
...
34
PAD HUS-533302335
...
35
ARM HUS-533308642
...
36
BRACKET NLA HUS-533313271
...
37
ARM HUS-533304208
...
38
ROD HUS-533304217
...
39
KNOB HUS-533304367
...
40
BOLT HUS-533025086
...
41
Washer HUS-734115301
...
42
PIN HUS-533121223
...
43
SPRING, CLUTCH HUS-601000212
...
44
BRACKET NLA HUS-533304125
...
45
NUT 5/16X18 HUS-533271184
...
46
ROD HUS-533304212
...
47
ARM HUS-533304049
...
48
BOLT NLA HUS-533051189
...
49
Washer HUS-734117171
...
50
PIN HUS-533036368
...
51
ROD HUS-533304083
...
52
Bolts HUS-596136301
...
53
TENSIONER HUS-533040223
...
54
HOLDER NLA HUS-533304105
...
55
SPRING HUS-533304130
...
56
Nuts HUS-596322601
...
57
RETAINING RING HUS-533022053
...
58
KEY HUS-533003021
...
59
PULLEY HUS-533303109
...
60
LINK HUS-533309546
...
61
GSPH HUS-596134901
...
62
ARM HUS-533302582
...
63
BOLT HUS-874610412
...
67
Bolts HUS-596582501
...
68
KEY, SQUARE1/4 HUS-533057791
...
69
SPACER HUS-533304246
...
70
PIN HUS-533121222
...
73
HUS-874980806
...
74
MUFFLER HUS-533305553
...
75
HUS-533313044
...
76
HUS-533313043
...
78
HUS-533056472
...
79
HUS-533308144
...
80
PIPE, L.H. HUS-533305555
...
81
BRACKET HUS-533306577
...
82
BRACKET HUS-533303096

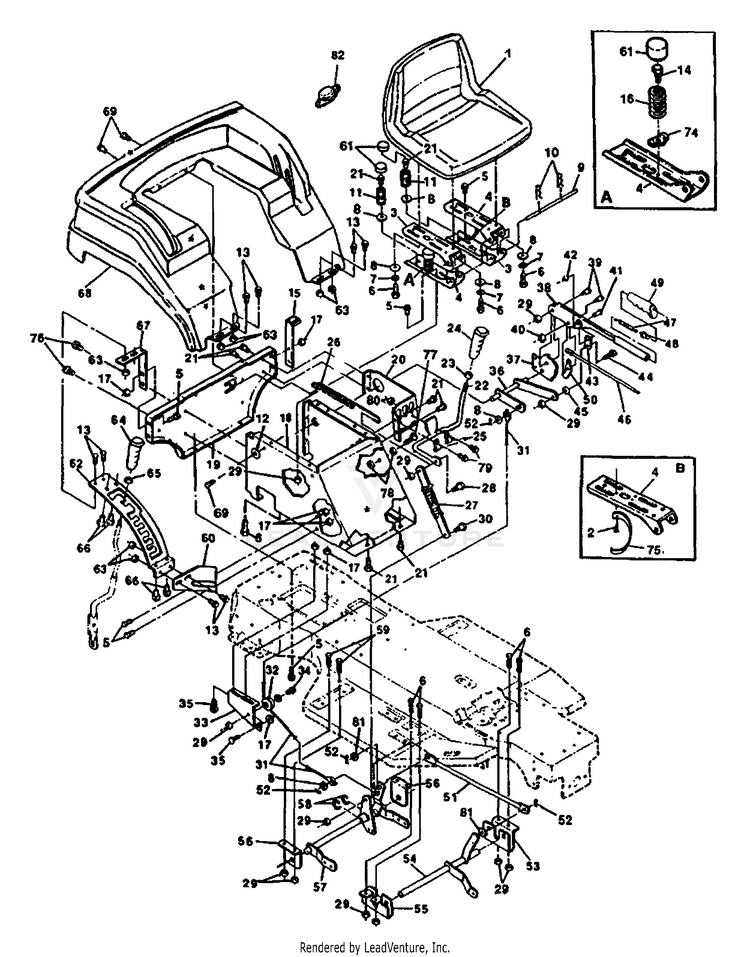

Frame Assembly

...
...
1
SEAT.SWEDISH.RIDER HUS-506556201
...
2
RIVET HUS-533046763
...
3
CHANNEL SEAT HUS-533305991
...
4
BRACKET HUS-533304480
...
5
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
6
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
7
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
8
WASHER, FLAT .344X .69X. HUS-601000019
...
9
PIN HUS-533304481
...
10
PIN HUS-533036368
...
11
SPRING, SEAT HUS-601000262
...
12
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
13
Bolts HUS-596582501
...
14
SCREW HUS-533995346
...
15
SUPPORT HUS-533306397
...
16
SPRING HUS-533058278
...
17
NUT HUS-533055273
...
18
SUPPORT HUS-533304475
...
19
HOLDER HUS-533304476
...
20
BRACKET HUS-533302208
...
21
Screws HUS-596030701
...
22
ARM HUS-533306391
...
23
Nuts HUS-596433401
...
24
HANDLE HUS-533304729
...
25
CLIP HUS-533312701
...
26
SPRING HUS-533305306
...
27
SPRING HUS-533304448
...
28
SCREW NLA HUS-533305989
...
29
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
30
BOLT.SHOULDER.5/16-18 HUS-532139888
...
31
WIRE HUS-533303227
...
32
PULLEY HUS-533048306
...
33
BRACKET HUS-533303230
...
34
SCREW HUS-533305522
...
35
Bolts HUS-596136401
...
36
ARM HUS-533302205
...
37
PLATE HUS-533302383
...
38
LEVER HUS-533009143
...
39
SCREW HUS-533300171
...
40
NUT HUS-533055273
...
41
PIN HUS-533300310
...
42
RETAINING RING HUS-533300311
...
43
LINK HUS-533302357
...
44
SCREW HUS-533036149
...
45
WASHER - 25X8.5X2.3 HUS-734116541
...
46
ROD HUS-533058330
...
47
SPRING HUS-533058326
...
48
BUTTON HUS-533058325
...
49
HANDLE HUS-533304730
...
50
PAWL HUS-533301239
...
51
ROD HUS-533302389
...
52
PIN HUS-533121222
...
53
HOLDER HUS-533308339
...
54
ARM HUS-533308345
...
55
HOLDER HUS-533308340
...
56
HOLDER HUS-533308343
...
57
ARM HUS-533308342
...
58
RETAINING RING HUS-533036625
...
59
HUS-874780510
...
60
SUPPORT HUS-533306293
...
61
COVER,SEAT SPRING 1.5IDX1 HUS-601000620
...
62
PLATE HUS-533306294
...
63
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
64
HANDLE HUS-533304728
...
65
NUT.HEX.3/8-16UNC HUS-873220600
...
66
SCREW HUS-533300302
...
67
SUPPORT NLA HUS-533305380
...
68
COVER HUS-533310576
...
69
Bolts HUS-596582501
...
74
SPRING CLAMP HUS-533001341
...
75
SPRING HUS-533305518
...
76
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
77
BOLT HUS-874760636
...
78
NUT HUS-533271190
...
79
Screws HUS-596437001
...
80
RP NUT HUS-601002318
...
81
Washer HUS-734117171
...
82
ANTI-START SWITCH CPL HUS-506565601

General Assembly

...
...
1
LEVER HUS-533304406
...
2
SHIFT HUS-533304024
...
3
CLIP HUS-533302538
...
4
Screws HUS-596030701
...
5
BOLT NLA HUS-533304086
...
6
RP NUT HUS-601002318
...
7
Nuts HUS-596322601
...
8
Nuts HUS-596322601
...
9
BOLT HUS-874760620
...
14
PIPE, R.H. HUS-533305554
...
15
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
18
SCREW HUS-533995346
...
21
Bolts HUS-596136401
...
22
NUT HUS-533055273
...
23
PULLEY, ASSY ENG. HUS-533306590
...
24
WASHER HUS-533056431
...
25
LOCK WASHER HUS-533120383
...
26
SCREW HUS-533428644
...
27
BELT HUS-533303241
...
28
BELT GUIDE HUS-533310162
...
29
WASHER HUS-533057157
...
30
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
31
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
32
BOLT HUS-874760620
...
33
WASHER HUS-533138489
...
34
PAD HUS-533302335
...
35
ARM HUS-533308642
...
36
BRACKET NLA HUS-533313271
...
37
ARM HUS-533304208
...
38
ROD HUS-533304217
...
39
KNOB HUS-533304367
...
40
BOLT HUS-533025086
...
41
Washer HUS-734115301
...
42
PIN HUS-533121223
...
43
SPRING, CLUTCH HUS-601000212
...
44
BRACKET NLA HUS-533304125
...
45
NUT 5/16X18 HUS-533271184
...
46
ROD HUS-533304212
...
47
ARM HUS-533304049
...
48
BOLT NLA HUS-533051189
...
49
Washer HUS-734117171
...
50
PIN HUS-533036368
...
51
ROD HUS-533304083
...
52
Bolts HUS-596136301
...
53
TENSIONER HUS-533040223
...
54
HOLDER NLA HUS-533304105
...
55
SPRING HUS-533304130
...
56
Nuts HUS-596322601
...
57
RETAINING RING HUS-533022053
...
58
KEY HUS-533003021
...
59
PULLEY HUS-533303109
...
60
LINK HUS-533309546
...
61
GSPH HUS-596134901
...
62
ARM HUS-533302582
...
63
BOLT HUS-874610412
...
67
Bolts HUS-596582501
...
68
KEY, SQUARE1/4 HUS-533057791
...
69
SPACER HUS-533304246
...
70
PIN HUS-533121222
...
73
HUS-874980806
...
74
MUFFLER HUS-533305553
...
75
HUS-533313044
...
76
HUS-533313043
...
78
HUS-533056472
...
79
HUS-533308144
...
80
PIPE, L.H. HUS-533305555
...
81
BRACKET HUS-533306577
...
82
BRACKET HUS-533303096

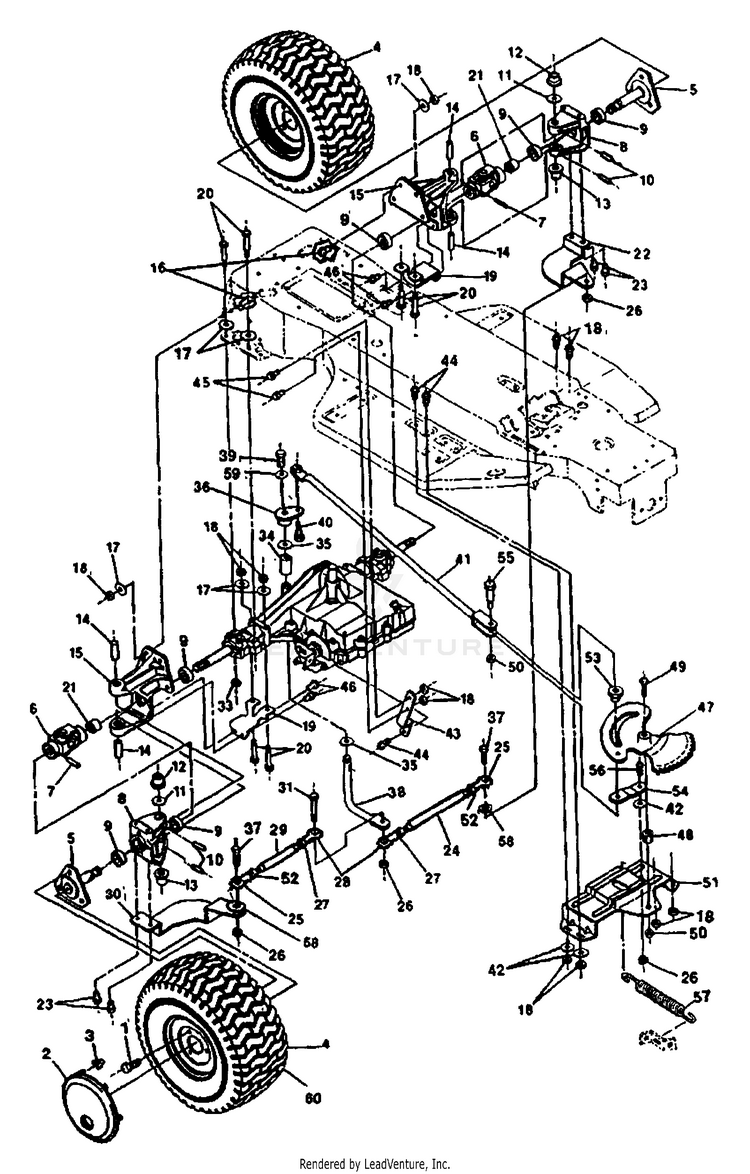

Tire And Transaxle Assembly

...
...
1
BOLT HUS-533123418
...
2
CAP HUS-533306570
...
3
CLAMP HUS-533306669
...
4
WHEEL CPL. HUS-533304259
...
5
HUB ASSEMBLY HUS-601000734
...
6
JOINT ASSEMBLY HUS-533012290
...
7
PIN HUS-533036311
...
8
BRACKET HUS-533012465
...
9
BEARING HUS-533012325
...
10
PIN HUS-533456722
...
11
WASHER HUS-533021682
...
12
BUSHING HUS-533012288
...
13
BUSHING HUS-533012321
...
14
PIN HUS-533012289
...
15
HOLDER HUS-533012485
...
16
SCREW HUS-533122017
...
17
WASHER, FLAT .344X .69X. HUS-601000019
...
18
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
19
HOLDER HUS-533306001
...
20
Bolts HUS-596434801
...
21
SPACER HUS-533304123
...
22
ARM HUS-533306218
...
23
SCREW HUS-533039728
...
24
ROD, L.H. HUS-533308446
...
25
LINK, L.H. HUS-533308384
...
26
NUT HUS-873610600
...
27
NUT HUS-873610600
...
28
ROD END HUS-533304260
...
29
ROD, R.H. HUS-533308447
...
30
ARM HUS-533306217
...
31
BOLT HUS-874610628
...
33
NUT HUS-533055273
...
34
SPACER HUS-533304115
...
35
WASHER T HUS-819251816
...
36
PIVOT, STEERING HUS-601000340
...
38
SHAFT, STEERING PIVOT HUS-601000341
...
39
SCREW HUS-533421051
...
40
BOLT, .562X .340 HHSH 3/8 NLA HUS-601000041
...
41
ROD HUS-533302593
...
42
GSPH HUS-596134901
...
43
BRACKET HUS-533321382
...
44
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
45
HUS-874780510
...
46
HUS-874780510
...
47
WF ASSY SECTOR GEAR 4WS HUS-601000175
...
48
BUSHING HUS-533302878
...
49
HUS-874770840
...
50
HUS-873610800
...
51
PLATE HUS-533302583
...
52
NUT HUS-533308399
...
53
CAM YOKE ROLLER HUS-601000203
...
54
MF ARM ROLLER SWING 4 W HUS-601000169
...
55
BOLT HUS-533304122
...
56
BOLT HUS-533302588
...
57
SPRING, CLUTCH HUS-601000212
...
58
WASHER 3/8ä HUS-533120382
...
59
WASHER - 25X8.5X2.3 HUS-734116541
...
60
TIRE HUS-533058276

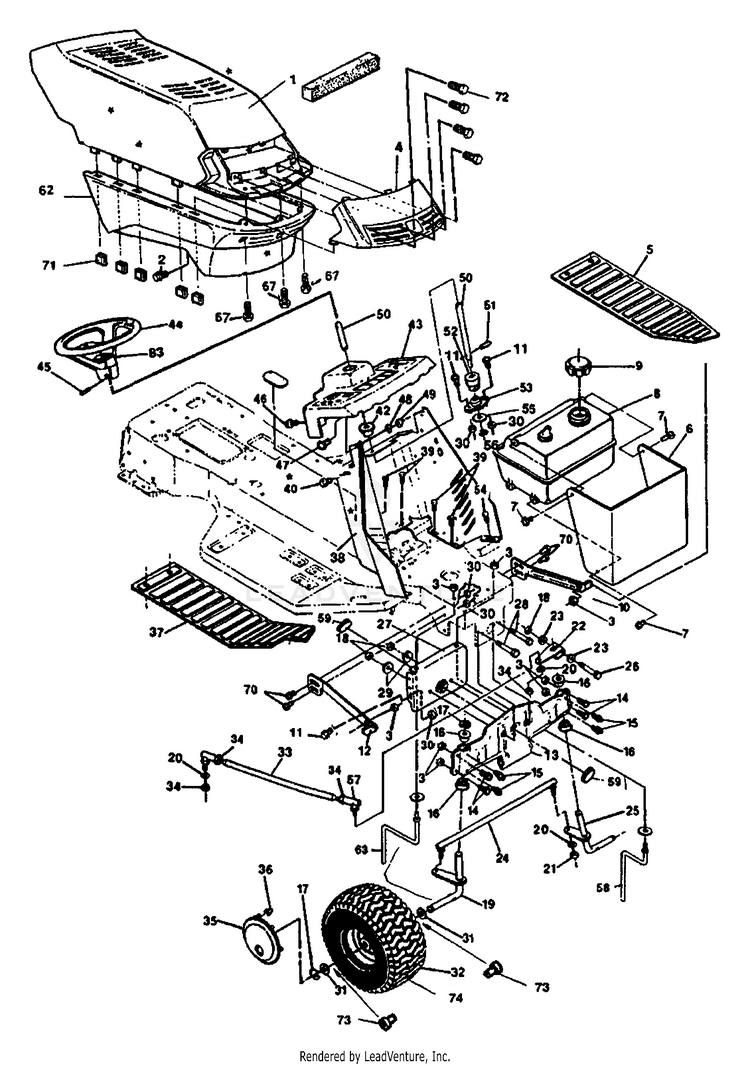

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
