Husqvarna LRH125 - 954001222B (1995-03) Riding Tractor

Model: LRH125 - 954001222B (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

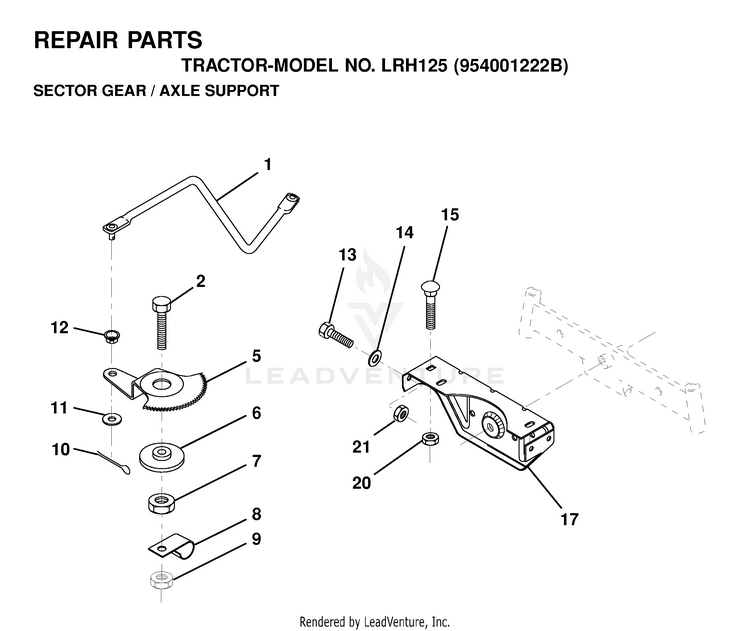

SECTOR GEAR / AXLE SUPPORT

...
...
6
BUSHING HUS-532121927
...
7
Nuts HUS-596433401
...
14
WASHER - 25X8.5X2.3 HUS-734116541
...
10
Pins HUS-596029501
...
20
Nuts HUS-596322601
...
5
GEAR SECTOR HUS-532121926
...
13
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
12
BUSHING.DRAGLINK (2 2) HUS-532126847
...
8
CLIP INSULATOR HUS-532126472
...
11
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
9
Nuts HUS-596433401
...
1
LINK DRAG HUS-532132566
...
17
SUPPORT/AXLE FRONT HUS-532137096
...
21
Hardware HUS-596040501
...
2
BOLT,HEX HUS-874780828
...
15
Bolts HUS-596136001
