Husqvarna LRH125 - 954001222B (1995-03) Riding Tractor

Model: LRH125 - 954001222B (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

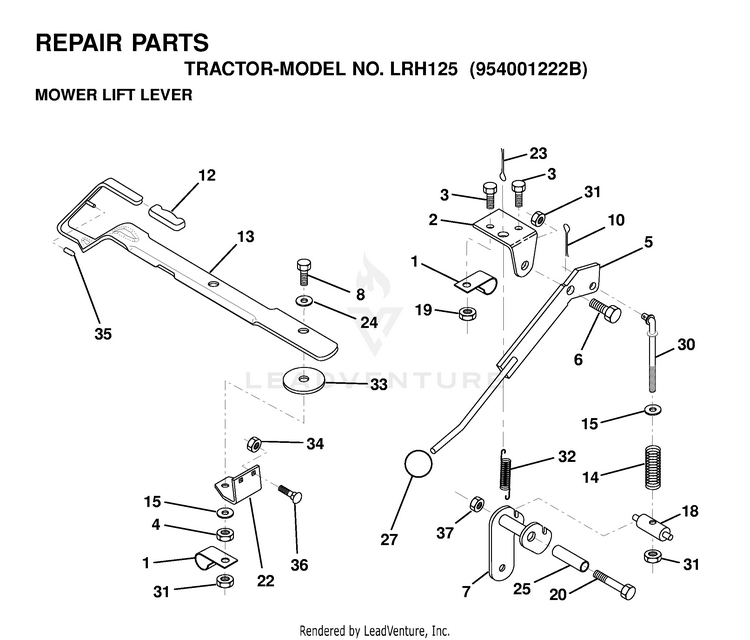

MOWER LIFT LEVER

...
...
33
WASHER HUS-532062333
...
20
BOLT HUS-874760644
...
4
Nuts HUS-596322601
...
10
Pins HUS-596029501
...
2
BRKT CLUTCH HUS-532122018
...
3
Screws HUS-596437001
...
19
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
25
TUBE SPACER HUS-532121933
...
13
LIFT LEVER ASM HUS-532136658
...
12
GRIP HANDLE HUS-532122027
...
24
WASHER HUS-532007672
...
32
SPRING EXT HUS-532133435
...
6
BOLT, SHOULDER LT HUS-532106451
...
8
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
31
Nuts HUS-596322601
...
27
KNOB HUS-532121466
...
35
CAP.VINYL.RED HUS-532133603
...
1
CLIP,INSULATOR HUS-532126470
...
15
Washers HUS-596140201
...
23
Pins HUS-596917601
...
36
GSPW Bolts HUS-595901601
...
14
COMP. CLUTCH SPRING HUS-532133939
...
37
Nuts HUS-596322601
...
5
CLUTCH LEVER HUS-532145187
...
22
LIFT LEVER BRACKET HUS-532132561
...
18
TRUNNION HUS-532135107
...
30
TENSION ROD CLUTCH HUS-532135039
...
7
CLUTCH ARM ASMBLY HUS-532141435
...
34
Hardware HUS-596040501
