Husqvarna LRH 125 (954001222B) (1995-03) Ride Mower

Model: LRH 125 (954001222B) (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

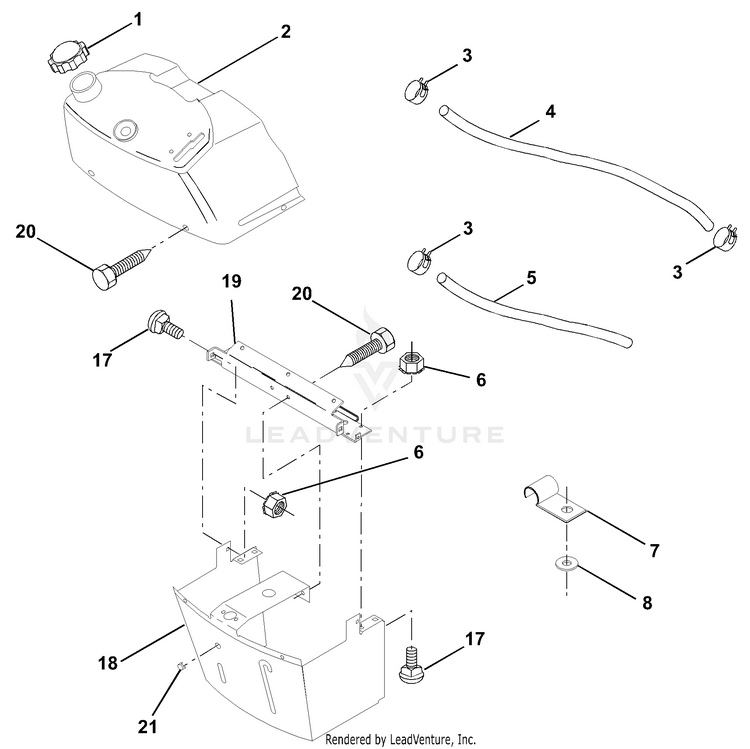

Dash

...
...
1
CAP.FUEL.GREY HUS-532142187
...
2
TANK ASM DASH LR HUS-532138395
...
3
HOSE CLAMP HUS-532123487
...
4
FUEL LINE HUS-532000295
...
5
FUEL LINE T HUS-532008548
...
6
Nut, Hex, Keps 1/4-20 HUS-873640400
...
7
CLIP T HUS-532002751
...
8
Washers HUS-596204201
...
17
BOLT HUS-872110404
...
18
SUPT ASM DASH HUS-532131886
...
19
CROSS BRACE HUS-532134744
...
20
SCREW HUS-817060408
...
21
PLUG DOME HUS-532134014
