Husqvarna LRH 125 (954001222B) (1995-03) Ride Mower

Model: LRH 125 (954001222B) (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

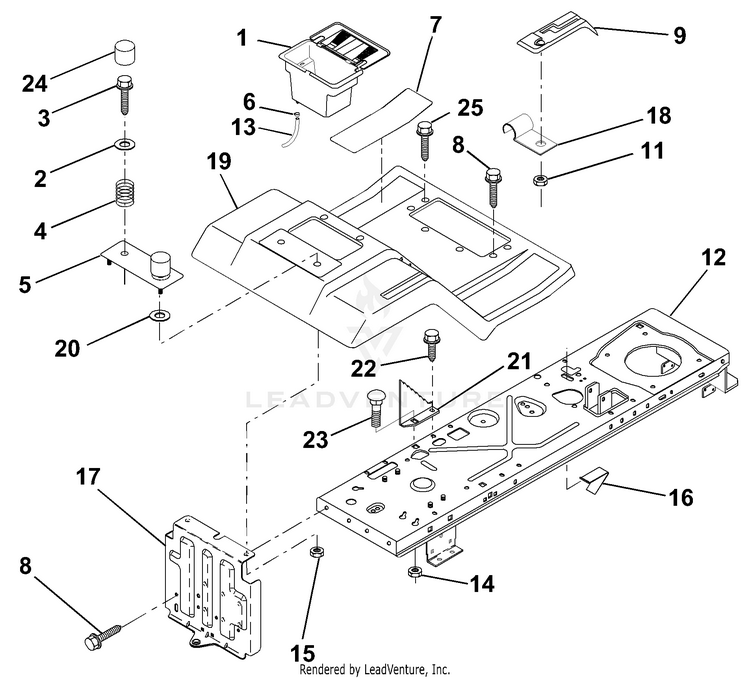

Fender/Chassis

...
...
1
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
2
GSPH HUS-596134901
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
4
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
5
PLATE HUS-532127115
...
6
HOSE CLAMP T HUS-532109596
...
7
FOOTREST PAD HUS-532126700
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
9
CONSOLE SHIFT CTL HUS-532140919
...
11
NUT.PUSH.3/16 HUS-532124346
...
12
FRAME HUS-532145190
...
13
TUBE BATTERY DRAIN HUS-532109238
...
14
Hardware HUS-596040501
...
15
Nut Keps Hex 1/4-20 HUS-873640400
...
16
KIT/CLUTCH BRAKE ACTUATOR HUS-532146613
...
17
DRAWBAR HUS-532140782
...
18
CLIP,INSULATOR HUS-532126470
...
19
FENDER HUS-532140956
...
20
Washers HUS-596135301
...
21
BRACKET DEPTH HUS-532140297
...
22
Screws HUS-596030701
...
23
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
24
CAP SPRING HUS-532124238
...
25
Scr-Hex Wsh Rol 5/16-18 x 1 HUS-817190516
...
24
CAP SPRING HUS-532124238
