Husqvarna LRH 125 (954001222B) (1995-03) Ride Mower

Model: LRH 125 (954001222B) (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

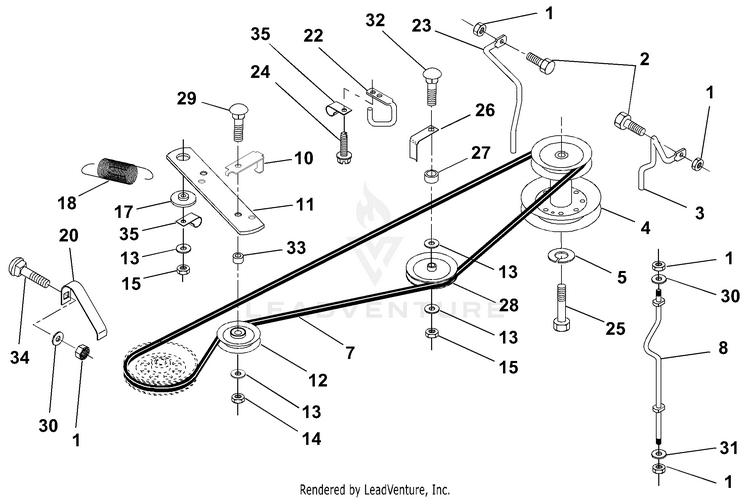

Ground Drive

...
...
1
Hardware HUS-596040501
...
2
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
KEEPER, BELT HUS-532140917
...
4
PULLEY.ENGINE.36/38 LR HUS-532138029
...
5
Washers HUS-596238901
...
6
BOLT HUS-532138887
...
7
V-BELT 77.75 HUS-532140910
...
8
KEEPER HUS-532140785
...
10
KEEPER, BELT HUS-532140780
...
11
ARM/GROUND DRIVE CLUTCH HUS-532140911
...
12
PULLEY.IDLER.FLAT HUS-532123674
...
13
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
14
Nuts HUS-596322601
...
15
Nuts HUS-596322601
...
17
SPACER.RETAINER.MOWER HUS-532165723
...
18
SPRING.EXTENSION HUS-532131459
...
20
KEEPER, BELT HUS-532140909
...
22
KEEPER,FRA DR BEL HUS-532123404
...
23
KEEPER BELT LH FR HUS-532146792
...
24
Screws HUS-596437001
...
26
KEEPER, BELT HUS-532140913
...
27
SPACER HUS-532140914
...
28
PULLEY.IDLER.V. HUS-532139123
...
29
BOLT CARRIAGE HUS-872110618
...
30
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
31
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
32
Bolts HUS-596337801
...
33
SPACER NLA HUS-532000160
...
34
GSPW Bolts HUS-595901601
...
35
CLIP INSULATOR HUS-532126472
