Husqvarna LRH 125 (954001222A) (1994-07) Ride Mower

Model: LRH 125 (954001222A) (1994-07)

Back To Assemblies

Save Part Not Listed?
product name

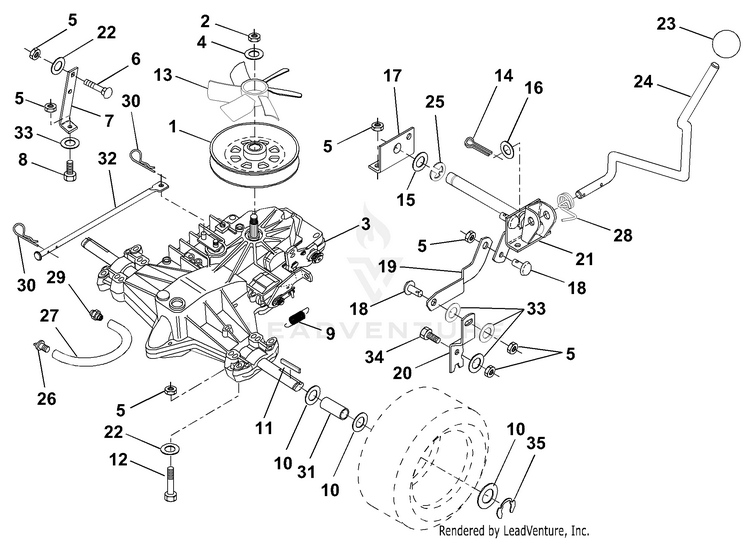

Transaxle

...
...
1
PULLEY.V-GROOVE HUS-532140779
...
2
NUT STD HUS-532009204
...
3
TRANSAXLE.HYDRO.319-0500.LR HUS-532140607
...
4
WASHER HUS-819171912
...
5
Hardware HUS-596040501
...
6
GSPW Bolts HUS-595901601
...
7
STRAP HUS-532140774
...
8
Bolts HUS-596582201
...
9
SPRING,BRAKE RETURN HUS-532146682
...
10
WASHER HUS-532121749
...
11
SQUARE KEY HUS-532123583
...
12
Bolt, Hex Head 5/16-18 x 2-1/2 HUS-874760540
...
13
FAN.TRANSMISSION.HYDRO.6" HUS-532140778
...
14
Pins HUS-596029601
...
15
Washer 21/32 x 1-1/4 x 13 Ga. HUS-819212013
...
16
BUSHING HUS-734117771
...
17
SUPPORT, SHIFT HANDLE HUS-532140763
...
18
PIN HUS-532140769
...
19
LINK, SHIFT HUS-532140767
...
20
LEVER, SHIFT HUS-532140773
...
21
PIVOT SHAFT HUS-532156047
...
22
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
24
ROD, SHIFTER HUS-532140765
...
25
RETAINING RING LT HUS-812000002
...
27
LINE FUEL HYD 4" HUS-532142564
...
28
SPRING, TORSION HUS-532140772
...
30
RETAINER M HUS-532004497
...
31
SPACER SPLIT HUS-532121199
...
32
ACTUACTOR HUS-532140912
...
33
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
34
Bolts HUS-596580801
...
35
E-RING LT HUS-812000001
