Husqvarna LR125 - 954001202C (1995-03) Riding Tractor

Model: LR125 - 954001202C (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

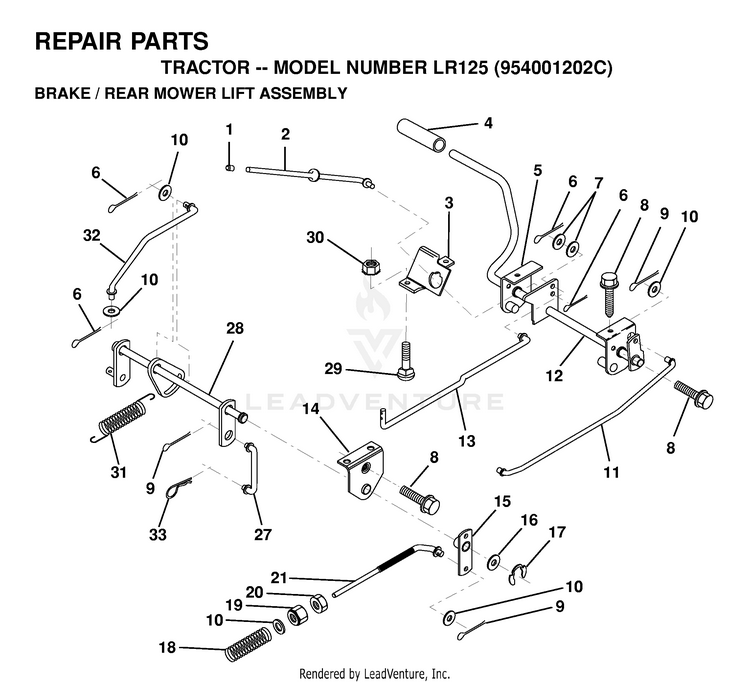

BRAKE / REAR MOWER LIFT

...
...
7
WASHER HUS-819131016
...
5
BRACKET CLUTCH PDL HUS-532132205
...
4
FOOT PEDAL COVER HUS-532008156
...
11
ROD,FRT BRAKE HUS-532123543
...
16
WASHER T HUS-819251816
...
17
Ring, Klip Truarc #5304-75 HUS-812000034
...
3
BRKT,PARK BRAKE HUS-532123437
...
9
Pins HUS-596029501
...
28
LIFT ASMBLY REAR HUS-532140777
...
21
CLUTCH KIT HUS-532131461
...
6
Pins HUS-596917601
...
32
LIFT LEVER LINK HUS-532133721
...
1
PLUNGER CAP HUS-532071673
...
13
ROD,CLUTCH HUS-532123394
...
29
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
8
Screws HUS-596030701
...
15
ARM, BRAKE ASMBLY HUS-532133332
...
20
NUT.HEX.3/8-16UNC HUS-873220600
...
31
COUNTER SPRING HUS-532133095
...
19
Nuts HUS-596322601
...
27
LINK LIFT REAR HUS-532136780
...
33
RETAINER-SPRNG RB HUS-532124670
...
30
Hardware HUS-596040501
...
10
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
18
SPRING, BRAKE ROD HUS-532151332
...
12
PEDAL ASSY HUS-532139934
...
14
BRKT,LIFT SHAFT HUS-532121978
...
2
ROD,PARK BRAKE HUS-532123436
