Husqvarna LR125 - 954001202C (1995-03) Riding Tractor

Model: LR125 - 954001202C (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

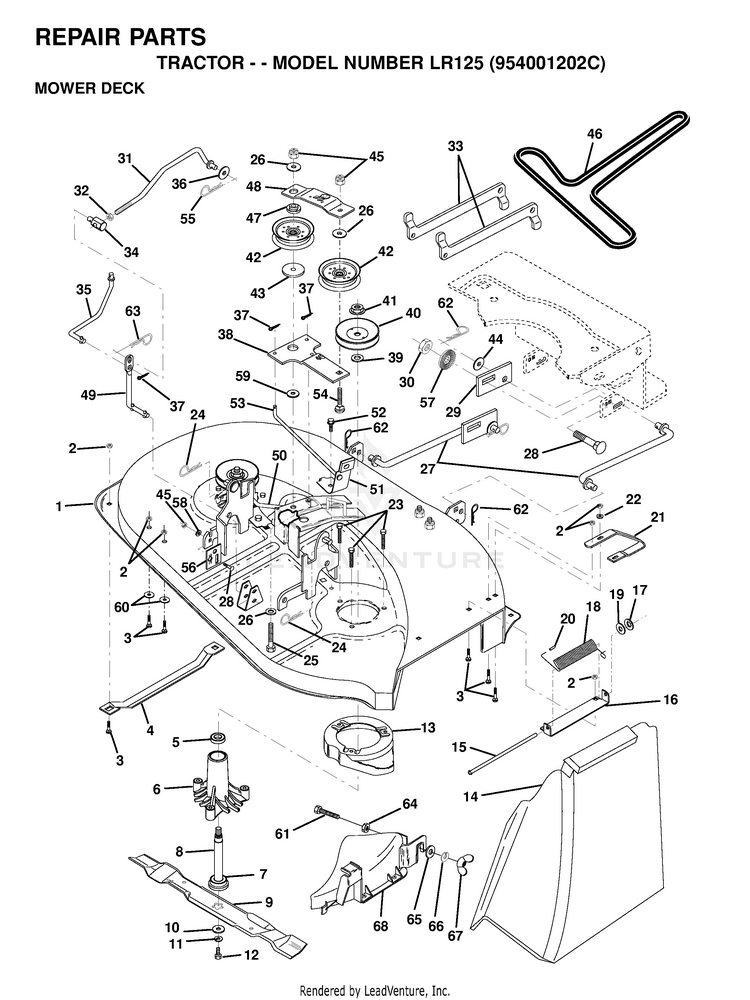

MOWER DECK / CUTTING DECK

...
...
65
GSPH HUS-596134901
...
64
Nuts HUS-596322601
...
18
SPRING TORSION HUS-532123713
...
23
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
33
ARM REAR SUSPENSION HUS-532132559
...
36
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
25
BOLT HUS-874760636
...
53
BRAKE ROD RH HUS-532131288
...
10
WASHER.BLADE HUS-532140296
...
50
BRAKE ROD LH HUS-532131289
...
29
PLATE SLIDE LINK HUS-532139757
...
49
PIVOT ROD HUS-532133551
...
39
WASHER.SPACER.MANDREL HUS-532187690
...
38
SERVICE.KIT IDLER ARM HUS-531164901
...
62
SPRING RETAINER HUS-532003146
...
12
BLADE BOLT HUS-532850857
...
4
RUNNER LH HUS-532007631
...
32
NUT.HEX.3/8-16UNC HUS-873220600
...
22
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
5
BEARING HUS-532110485
...
7
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
30
Nuts HUS-596322601
...
21
RUNNER.RH.38 HUS-532128772
...
8
KIT MANDREL W/NUT HUS-532137646
...
35
CLUTCH ROD HUS-532132554
...
66
Washers HUS-596238701
...
13
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
40
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
24
RETAINER-SPRNG RB HUS-532124670
...
26
Washers HUS-596140201
...
28
Bolts HUS-596728201
...
56
ADJUSTMENT PLATE HUS-532136782
...
58
GSPH HUS-596134901
...
45
Nuts HUS-596322601
...
48
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
14
SHIELD.DEFLECTOR.MOWER.38.BL HUS-532106736
...
37
Pins HUS-596917601
...
68
COVER.MULCHING.38" (2 2) HUS-532132803
...
52
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
GSPW Bolts HUS-595901601
...
67
WING NUT HUS-532135651
...
55
COTTER PIN HUS-532004921
...
47
SPACER.IDLER.ARM HUS-532133502
...
xx
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
59
WASHER HUS-532178515
...
46
V-BELT.DRIVE.MOWER.30" HUS-532419271
...
xx
DECK SERV 38 MWR HUS-532142862
...
2
Hardware HUS-596040501
...
11
Washers HUS-596238701
...
57
WASHER SERRATED DISC 13/32 X 1 HUS-532144283
...
9
BLADE 38" V MULCH HUS-532134148
...
1
DECK.SVC.38"LR 142830 HUS-532188249
...
6
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
42
PULLEY.IDLER.FLAT.MOWER.BLK.PT HUS-532121316
...
43
SPACER.RETAINER.MOWER HUS-532165723
...
19
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
34
TRUNNION HUS-532133604
...
31
ROD.CLUTCH.PRIMARY HUS-532140915
...
20
CAP-SLEEVE LT HUS-532105304
...
27
LINK LIFT HUS-532139756
...
51
SERVICE KIT BRAKE ASSEMBLY BRA HUS-531165101
...
16
SERVICE KIT BRACKET BRACKET HUS-531155201
...
60
WASHER HUS-819111112
...
63
RETAINER M HUS-532004497
...
15
ROD-HINGE T HUS-532106735
...
61
Bolt, Hex Head 3/8-16 x 1-1/4 HUS-874930620
...
17
NUT PUSH M HUS-532110452
...
41
KIT.NUT.FLANGE HUS-532139729
...
54
Bolts HUS-596136201
