Husqvarna LR120AR (1999 & Before) Tractor

Model: LR120AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

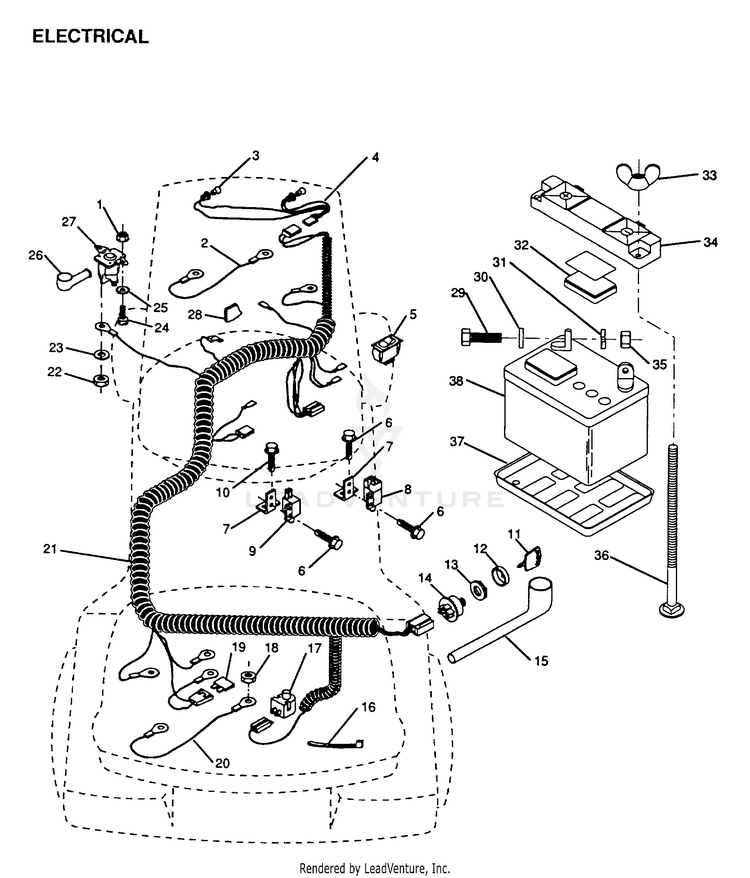

ELECTRICAL

...
...
1
NUT HUS-73510400
...
2
CABLE LTV HUS-105002X
...
3
SUB= 4152J HUS-7662J
...
4
HARNESS T HUS-110859X
...
5
SWITCH LT HUS-110712X
...
6
SCREW HUS-17021008
...
7
BRACKET LT HUS-108236X
...
8
SWITCH-INTER. GT HUS-104445X
...
9
SWITCH INTERLOCKT HUS-109553X
...
10
SCREW HUS-17211008
...
11
KEY HUS-122147X
...
12
SUB= 141226 HUS-123620X
...
13
NUT IGNITION HUS-124211X
...
14
SUB= STD365402 HUS-4406R
...
15
COVER IGNITION SW HUS-124083X
...
16
WIRE TIE HUS-7192 J
...
17
SWITCH SEAT HUS-121305X
...
18
NUT HUS-73510500
...
19
FUSE HYT HUS-108824X
...
20
SUB= 2955J HUS-596J
...
21
HARNESS IGNITION HUS-124190X
...
22
NUT HUS-73350400
...
23
SUB= 10040400 HUS-10090400
...
24
BOLT HUS-74780408
...
25
LOCKWASHER HUS-11050400
...
26
SUB= 154336 HUS-719J
...
27
SUB= 146154 HUS-109081X
...
28
STOP PLASTIC HUS-125760X
...
29
BOLT LT HUS-74760412
...
30
WASHER HUS-19091016
...
31
LOCKWASHER HUS-10040400
...
32
"CAP,BATTERY " HUS-121264X
...
33
SUB= 146525 HUS-123198X
...
34
SUB= 150109 HUS-102476X
...
35
SUB= 50675 HUS-73220400
...
36
BOLT HUS-72240460
...
37
"TRAY T, BATTERY" HUS-7603J
...
38
SUB= 123899X HUS-121265X
...
xx
MANUAL OWNERS ENGLISH HUS-123374X1E
...
xx
MANUAL OWNERS FRENCH HUS-125763X1F
...
xx
OPERATING AND MAINTENANCE MANUAL HUS-MS-9250
...
xx
NLA HUS-125568X
...
xx
PARTS LIAST FRENCH HUS-26436X
