Husqvarna LR120 - 954830051B (1996-05) Riding Tractor

Model: LR120 - 954830051B (1996-05)

Back To Assemblies

Save Part Not Listed?
product name

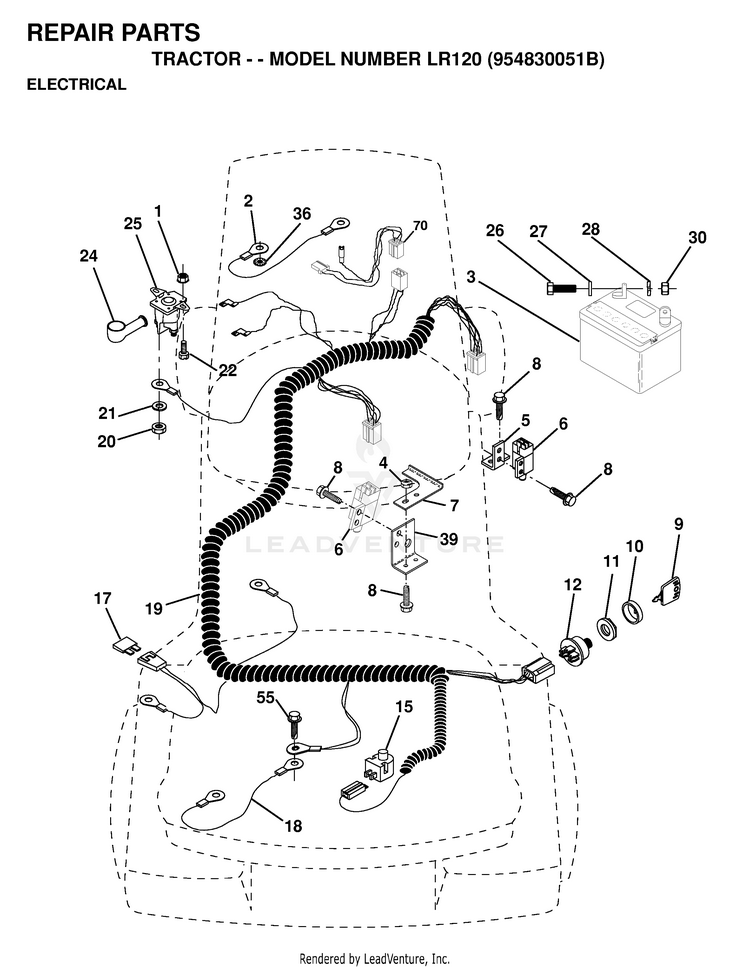

ELECTRICAL

...
...
10
COVER SWITCH KEY HUS-532141226
...
6
SWITCH, INTERLOCK HUS-539101080
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
25
KIT SOLENOID .95 HUS-532146154
...
7
KEEPER, ACTUAT. L.R. HUS-532146374
...
36
Washer, Lock, Internal Tooth 1/4 HUS-811150400
...
17
FUSE HYT HUS-532108824
...
30
NUT.HEX..25-20.UNC HUS-532050675
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
11
KIT-WASHER/NUT HUS-532145774
...
27
Washers HUS-596582301
...
55
Screws HUS-596030701
...
28
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
4
LOCKNUT HUS-532069180
...
9
KEY MLD GEN DELTA HUS-532140401
...
19
HARNESS, IGN FEND HUS-532146063
...
22
Screws HUS-596437001
...
8
SCREW HUS-817021008
...
18
CABLE ASSY HUS-532128353
...
70
HARNESS, ENGINE HUS-532140413
...
24
COVER.TERMINAL.RED HUS-532154336
...
1
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
3
BATTERY.DRY.30.AMP HUS-532123899
...
2
CABLE.BATTERY.6GA.16"RED HUS-532108423
...
39
BRACKET HUS-532141735
...
12
KIT.SWITCH.IGNITION HUS-532158913
...
15
SWITCH.SNAPMOUNT.NC HUS-532421062
...
5
BRACKET LT HUS-532108236
