Husqvarna LR120 - 954830051A (1995-08) Riding Tractor

Model: LR120 - 954830051A (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

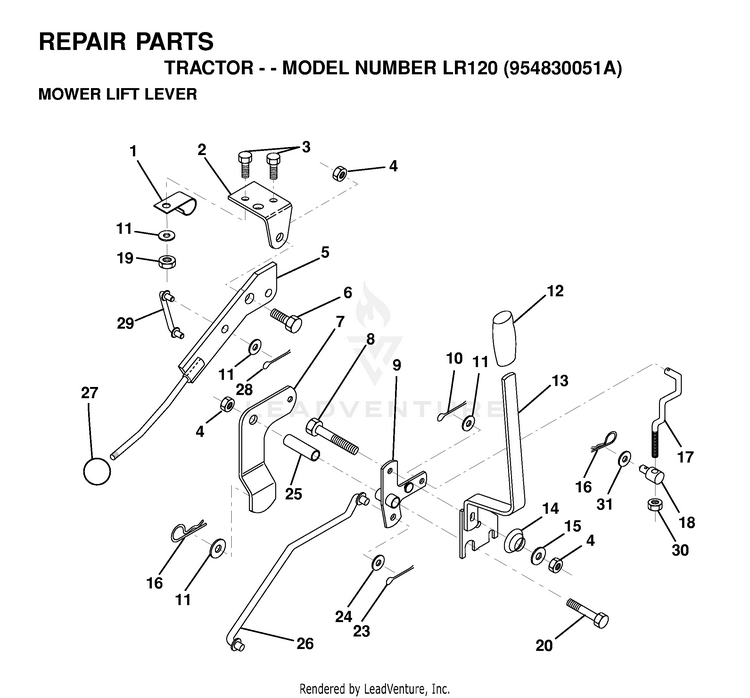

MOWER LIFT LEVER

...
...
9
BELLCRANK,LIFT HUS-532121930
...
5
CLUTCH LEVER HUS-532145187
...
1
CLIP,INSULATOR HUS-532126470
...
14
SPRING COMPRESSIO HUS-532123496
...
26
LIFT ROD HUS-532141470
...
29
LINK MOWER CLUTCH HUS-532131655
...
13
LIFT HANDLE ASSY HUS-532139352
...
18
TRUNNION.ADJUSTABLE.3/8-16 HUS-532142028
...
27
KNOB T (3/8 HOLE) HUS-532106932
...
3
Screws HUS-596437001
...
15
GSPH HUS-596134901
...
8
BOLT HUS-874760636
...
24
Washers HUS-596040101
...
17
LINK LIFT FRT HUS-532127359
...
30
NUT.HEX.3/8-16UNC HUS-873220600
...
20
BOLT HUS-874760644
...
16
COTTER PIN HUS-532004921
...
12
GRIP HANDLE HUS-532122027
...
31
GSPH HUS-596134901
...
4
Nuts HUS-596322601
...
25
TUBE SPACER HUS-532121933
...
2
BRKT CLUTCH HUS-532122018
...
6
BOLT, SHOULDER LT HUS-532106451
...
10
Pins HUS-596029501
...
28
Pins HUS-596917601
...
19
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
7
ASSEMBLY MOWER CLUTCH ARM HUS-532135371
...
23
Pins HUS-596029601
...
11
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
