Husqvarna LR120 - 954830051A (1995-08) Riding Tractor

Model: LR120 - 954830051A (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

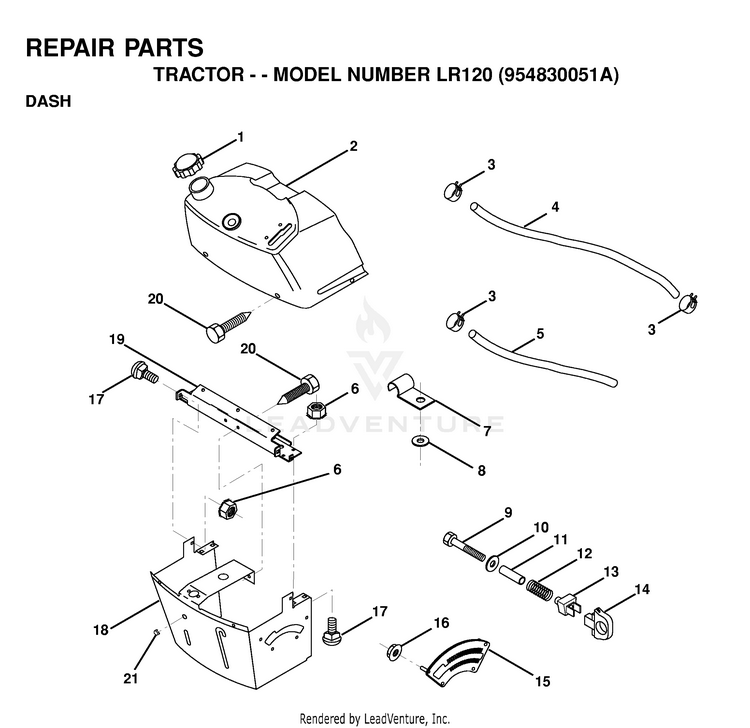

DASH

...
...
21
PLUG DOME HUS-532134014
...
20
SCREW HUS-817060408
...
3
HOSE CLAMP HUS-532123487
...
9
BOLT.HEX.FINISHED.1/4-20 HUS-874760432
...
6
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
13
KNOB HGT RETAINER HUS-532126450
...
14
KNOB HUS-532126115
...
17
BOLT HUS-872110404
...
10
Washers HUS-596135301
...
1
CAP.FUEL.GREY HUS-532142187
...
16
NUT.PUSH.3/16 HUS-532124346
...
2
TANK ASM DASH LR HUS-532138394
...
8
Washers HUS-596204201
...
18
SUPT ASSY DASH HUS-532130745
...
15
ADJUSTER QUAD HUS-532122023
...
19
CROSS BRACE HUS-532134744
...
11
SPACER SPLIT HUS-532121249
...
4
FUEL LINE HUS-532000295
...
7
CLIP T HUS-532002751
...
5
FUEL LINE T HUS-532008548
...
12
SPRING.COMPRESSION HUS-532003720
