Husqvarna LR110AR (1999 & Before) Tractor

Model: LR110AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

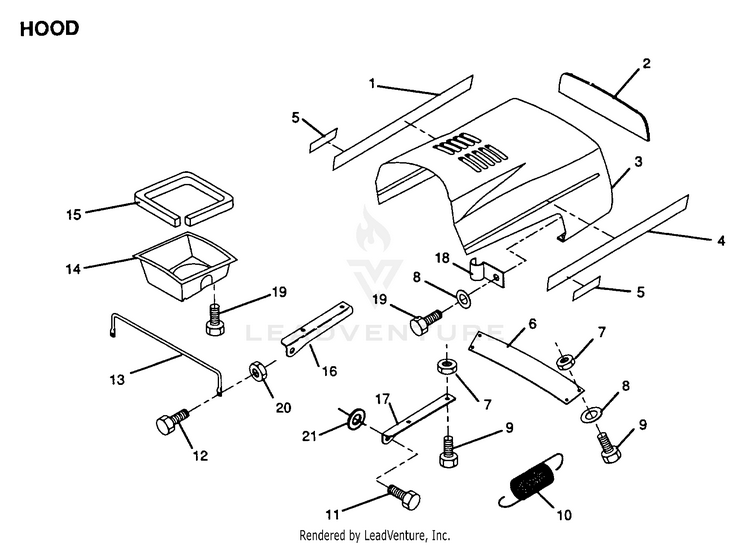

HOOD

...
...
1
NLA HUS-122036X
...
2
LENS HUS-122035X
...
3
HOOD&GRILL ASS'Y HUS-123527X
...
4
NLA HUS-122037X
...
5
"DECAL,SIDE PANEL" HUS-124603X
...
6
SUB= 122550X425 HUS-122550X388
...
7
PAL NUT HUS-120579X
...
8
WASHER HUS-19091016
...
9
BOLT HUS-74780410
...
10
EXT SPRING HUS-124657X
...
11
BOLT SHOULDER HUS-124312X
...
12
SUB= 74780414 HUS-74780412
...
13
"BRACE,HOOD" HUS-123693X
...
14
"DUCT,AIR" HUS-123840X
...
15
FOAM STRIP LT HUS-120537X
...
16
BRKT HOOD LH HUS-122548X
...
17
BRKT HOOD RH HUS-122549X
...
18
CLIP T HUS-2751R
...
19
SUB= 17521312 HUS-17411310
...
20
SUB= 73690400 HUS-73680400
...
21
WASHER HUS-19101216
Schematic Image Zoomed
