Husqvarna LR110AR (1999 & Before) Tractor

Model: LR110AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

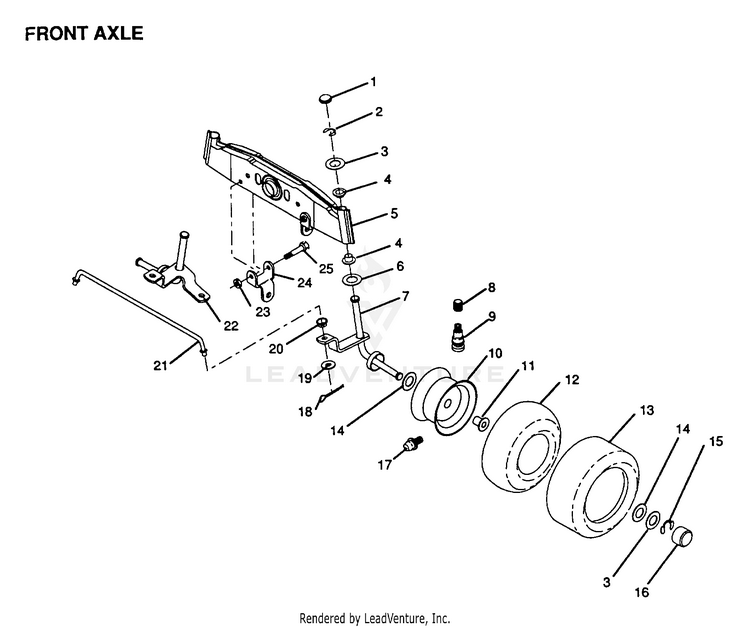

FRONT AXLE

...
...
1
CAP HUS-121232X
...
2
RING HUS-12000029
...
3
WASHER HUS-121748X
...
4
NYLINER HUS-121922X
...
5
AXLE FRONT HUS-121914X
...
6
WASHER .T HUS-6266H
...
7
SPINDLE RH HUS-121919X
...
8
VALVE CAP HUS-59192
...
9
VALVE STEM LT HUS-65139
...
10
SUB= 137237X427 HUS-122394X
...
11
"FLANGE, BEARING" HUS-9040H
...
12
TUBE.5.3/4.5/6 HUS-59904
...
13
SUB= 123410X HUS-124142X
...
14
WASHER HUS-121749X
...
15
RING HUS-12000029
...
16
HUB CAP HUS-104757X
...
17
FITTING LT HUS-278H
...
18
COTTER PIN HUS-76020412
...
19
WASHER HUS-19131316
...
20
SUB= 126847X HUS-120754X
...
21
ROD TIE HUS-121924X
...
22
SPINDLE LH HUS-121916X
...
23
SUB= 73690500 HUS-73680500
...
24
"BRKT,FRONT STAB" HUS-121915X
...
25
BOLT HUS-74760540
