Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

Wheels & Tires

...
...
1
VALVE CAP HUS-532059192
...
2
VALVE STEM LT HUS-532065139
...
3
FITTING LT. (Front Wheels Only) HUS-532000278
...
4
TIRE.13X5-6.TURF.SAVER.FRONT HUS-532123410
...
4
TIRE.16X6.5-8.TURF.SAVER.FRONT HUS-532122075
...
5
TUBE.5.3/4.5/6 (Optional Service Items Only) HUS-532059904
...
5
TUBE.16X6.5/7.5-8 (Optional Service Items Only) HUS-532008134
...
6
FRONT RIM 6" WHITE HUS-532137237
...
6
RIM REAR 8" HUS-532141652
...
7
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
8
BEARING.FLANGE HUS-532009040
...
9
WASHER HUS-532121748
...
xx
6, 24OZ PNUEMASEAL BOTTLES (10 oz. Tube) HUS-576707201

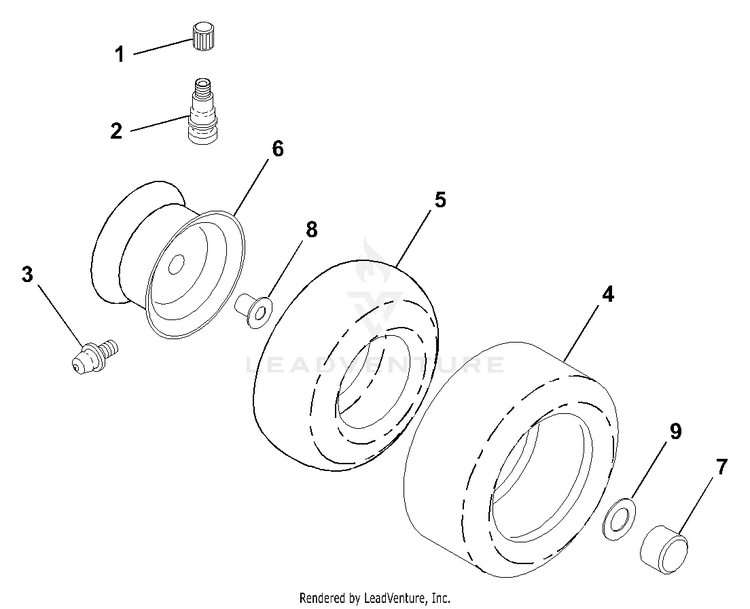

Schematic Image Zoomed
