Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

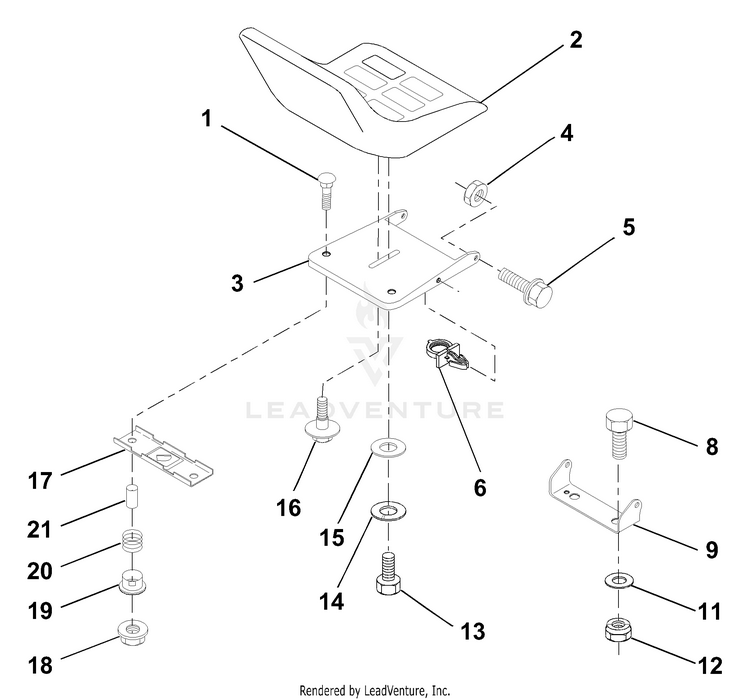

Seat

...
...
1
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
2
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
3
PAN.ASM.SEAT.1SLOT HUS-532195530
...
4
Hardware HUS-596040501
...
5
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
6
PUSH CLIP HUS-532145006
...
8
Bolts HUS-596564401
...
9
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
11
Washers HUS-596135501
...
12
Nuts HUS-596322601
...
13
BOLT.HEX.BLACK HUS-871110814
...
14
LOCKWASHER HUS-810040800
...
15
WASHER HUS-819171912
...
16
BOLT,SHOULD HUS-532127018
...
17
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
18
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
19
BUSHING HUS-532121248
...
20
SPRING HUS-532121250
...
21
SPACER SPLIT 28X.96 HUS-532134300
