Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

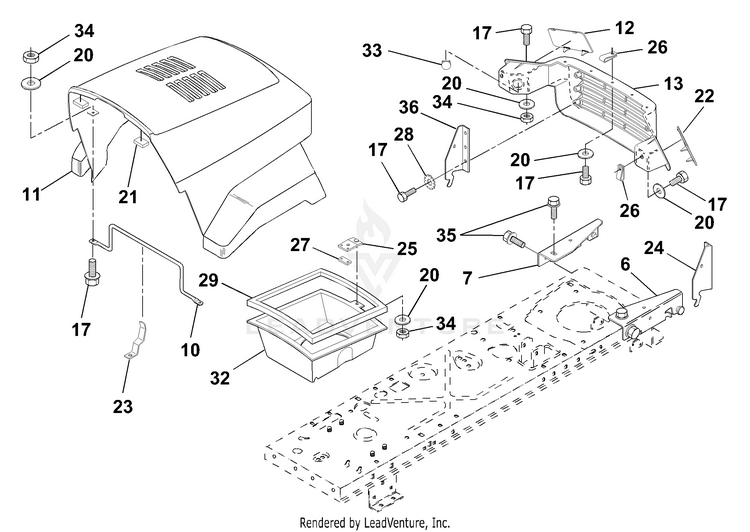

Hood

...
...
6
BRACKET ASSY HOOD HUS-532140051
...
7
BRACKET ASSY HUS-532140050
...
10
BRACE HOOD HUS-532130850
...
11
HOOD - LR HUS-532140142
...
12
LENS.LR.LH.HUSQV. HUS-532130986
...
13
GRILLE.KIT.SERVICE.HUSQ.LR HUS-532404673
...
17
Bolts HUS-596582501
...
20
Washers HUS-596582301
...
21
BUMPER HOOD T HUS-532126938
...
22
LENS RH HUS-532130985
...
23
HOOD LATCH HUS-532139969
...
24
BRACKET PIVOT HUS-532142873
...
25
CLIP HUS-532131028
...
26
CLIP TINNERMAN HUS-532052921
...
27
CLIP HUS-532131037
...
28
Washer Lock Ext. Tooth HUS-811050400
...
29
FOAM STRIP LT HUS-532120537
...
32
DUCT,AIR HUS-532123840
...
33
CVR LIGHT SOCKET HUS-532131319
...
34
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
36
BRACKET HOOD HUS-532128445
