Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

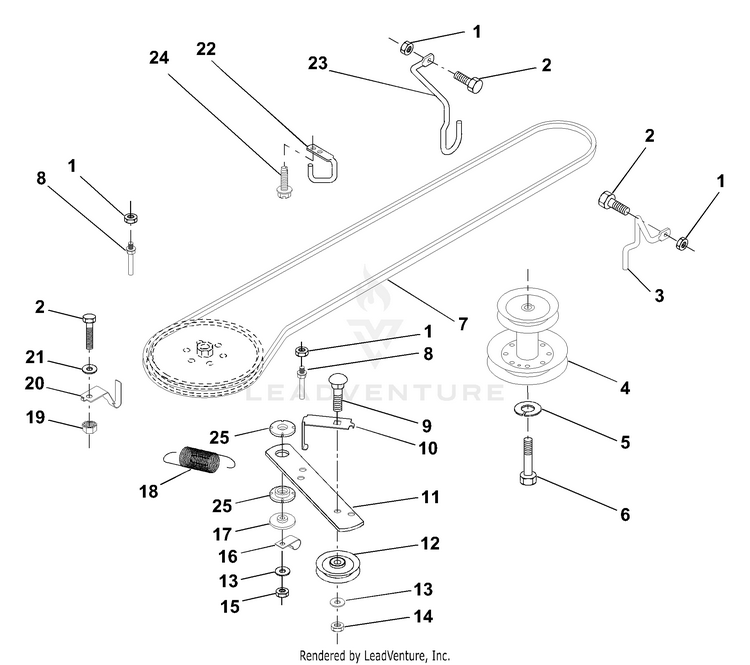

Ground Drive

...
...
1
Hardware HUS-596040501
...
2
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
KEEPER/MOWER DRIVE RH HUS-532141342
...
4
PULLEY.ENGINE.36/38 LR HUS-532138029
...
5
Washers HUS-596238901
...
6
Bolt Hex 7/16-20 Gr. 5 HUS-871170744
...
7
V-BELT.DRIVE.MOWER.30" HUS-532419271
...
8
BELT KEEPER KIT HUS-532156109
...
9
Bolt, Carr. 3/8-16 UNC x 1-1/2 HUS-872140612
...
10
KEEPER.BELT.GROUND.DRIVE.IDLER HUS-532123396
...
11
ARM, GROUND DRIVE CLUTCH HUS-532150926
...
12
PULLEY.IDLER.FLAT HUS-532123674
...
13
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
14
Nuts HUS-596322601
...
15
Nuts HUS-596322601
...
16
CLIP,INSULATOR HUS-532126471
...
17
SPACER, RETAINER HUS-532150932
...
18
SPRING.EXTENSION HUS-532131459
...
19
Hardware HUS-596040501
...
20
KEEPER-T/A GROUND DRIVE BELT HUS-532139919
...
21
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
22
KEEPER,FRA DR BEL HUS-532123404
...
23
KEEPER-MOWER DRIVE LH HUS-532140916
...
24
Screws HUS-596437001
...
25
BUSHING NYLON COLLERED HUS-532150935
