Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

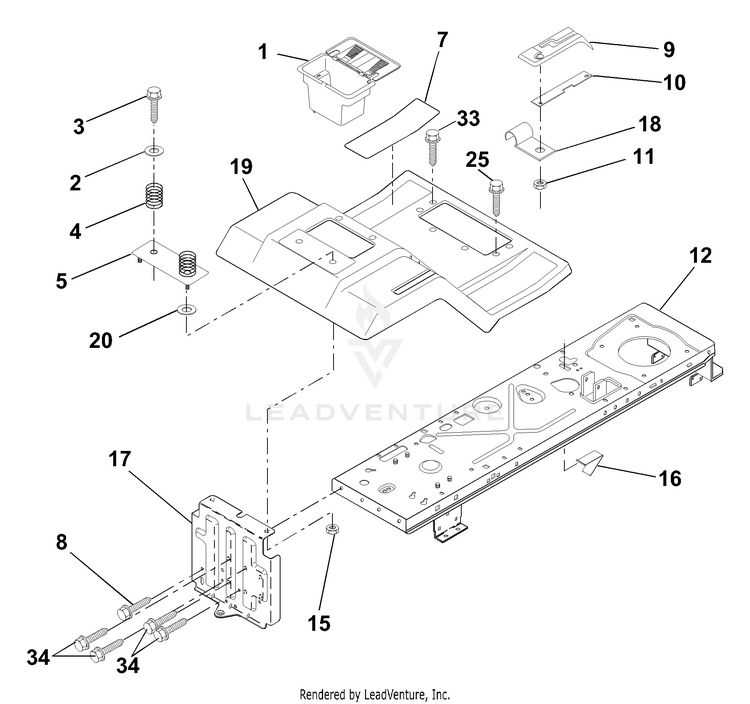

Fender/Chassis

...
...
1
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
2
GSPH HUS-596134901
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
4
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
5
PLATE HUS-532127115
...
7
PAD FOOTREST HUS-532124144
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
9
GUARD.BELT HUS-532167724
...
10
BAR, SHIFT LOCK HUS-532139783
...
11
NUT.PUSH.3/16 HUS-532124346
...
12
FRAME HUS-532145190
...
15
Nut, Keps Hex 1/4-20 UNC HUS-873640400
...
16
KIT/CLUTCH BRAKE ACTUATOR HUS-532146613
...
17
DRAWBAR HUS-532140782
...
18
CLIP,INSULATOR HUS-532126470
...
19
FENDER/FOOTREST HUS-532141393
...
20
Washers HUS-596135301
...
25
Screw Tapping 5/16-18 HUS-817060514
...
33
Screw Hex Wsh Thdroll 5/16-18 x 1 HUS-817190516
...
34
SHOULDER BOLT 5/16-18TT HUS-532170165
