Husqvarna LR 122 (954140105A) (1999-09) Ride Mower

Model: LR 122 (954140105A) (1999-09)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

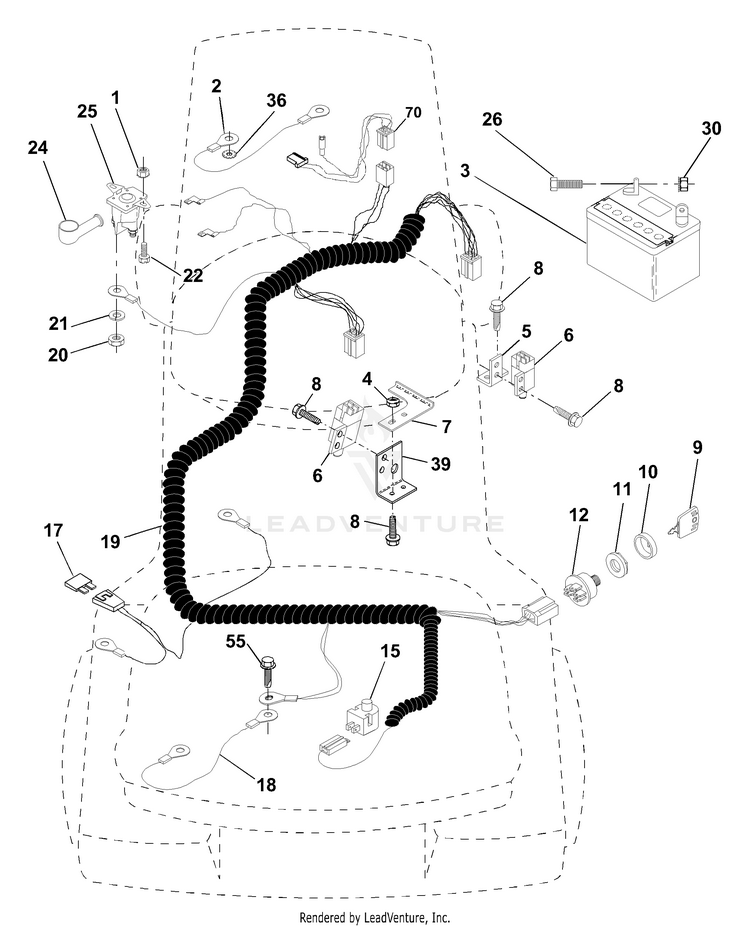

Electrical

...
...
1
Nut, Hex Keps 1/4-20 HUS-873640400
...
2
CABLE.BATTERY.6GA.16"RED HUS-532108423
...
3
BATTERY.DRY.30.AMP HUS-532123899
...
4
LOCKNUT HUS-532069180
...
5
BRACKET LT HUS-532108236
...
6
SWITCH, INTERLOCK HUS-539101080
...
7
KEEPER, ACTUAT. L.R. HUS-532146374
...
8
SCREW HUS-817021008
...
9
KEY MLD GEN DELTA HUS-532140401
...
10
COVER SWITCH KEY HUS-532141226
...
11
KIT-WASHER/NUT HUS-532145774
...
12
KIT.SWITCH.IGN.3-POS.NUT.MNT.D HUS-532178744
...
15
SWITCH.SNAPMOUNT.NC HUS-532421062
...
17
FUSE 15 AMP HUS-532166180
...
18
CABLE ASSY HUS-532128353
...
19
HARNESS IGN. HEADLIGHT HUS-532170206
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
22
Screws HUS-596437001
...
24
COVER.TERMINAL.RED HUS-532154336
...
25
KIT SOLENOID .95 HUS-532146154
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
30
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
36
Washer, Lock Inter. Tooth 1/4 HUS-811150400
...
39
BRACKET HUS-532141735
...
55
Screws HUS-596030701
...
70
ENGINE HARNESS HUS-532170242
...
...
...
