Husqvarna LR 121 (954140001B) (1998-02) Ride Mower

Model: LR 121 (954140001B) (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

Hood

...
...
1
EXT SPRING HUS-532124657
...
2
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
3
Washers HUS-596135301
...
4
Screws HUS-596230901
...
5
BOLT.SHOULDER.5/16-18 HUS-532139888
...
6
BRKT HOOD RH HUS-532122549
...
7
BRKT HOOD LH HUS-532122548
...
8
Screw Sltd. Hex Hd W/PL Washer HUS-817521312
...
9
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
10
BRACE,HOOD HUS-532123693
...
11
HOOD HUS-532132918
...
12
LENS HUS-532122035
...
13
GRILL YP W/HL HUS-532142325
...
18
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
33
CVR LIGHT SOCKET HUS-532131319

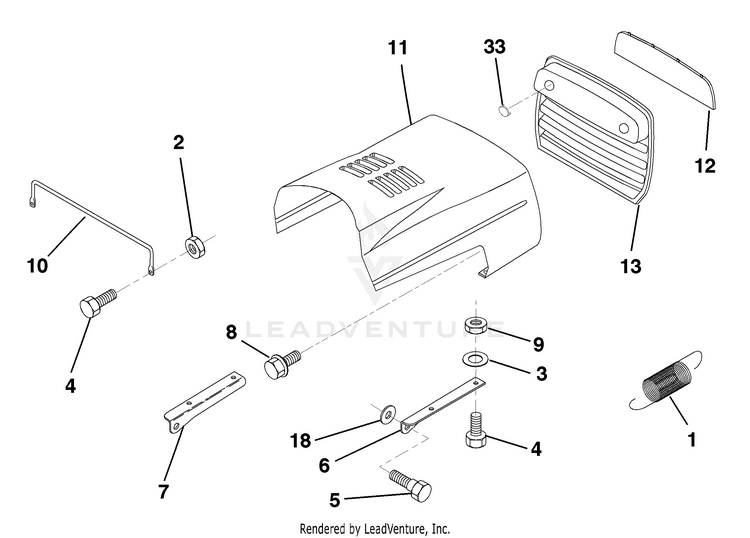

Schematic Image Zoomed
