Husqvarna LR 121 (954140001B) (1998-02) Ride Mower

Model: LR 121 (954140001B) (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

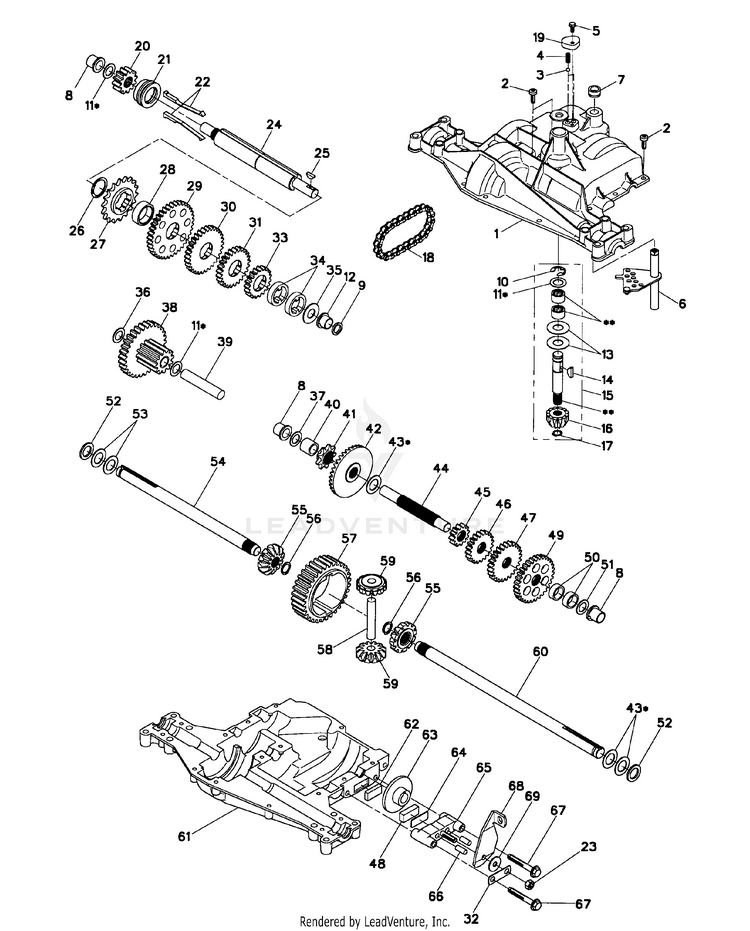

Dana Transaxle

...
...
1
Housing, Upper HUS-160939
...
2
Screw, Tapping, 1/4-20 X .734 HUS-2274J
...
3
Ball, Detent HUS-134400
...
4
Spring, Detent HUS-105904X
...
5
Screw, Tapping, No. 10-24 X .482 HUS-160940
...
6
Assy, Shifter HUS-138235
...
7
V-Ring HUS-108727X
...
8
Bearing, Flange HUS-148266
...
9
Seal, Oil HUS-148269
...
10
Ring, Retaining HUS-2225J
...
11
Assy, Kit, Shim, .625 Shaft HUS-134793
...
12
Bearing, Flange HUS-148268
...
13
Washer, Plain, .632 X 1.38 X .046 HUS-120415X
...
14
Key, Woodruff, No. 9 HUS-142674
...
15
Assy, Kit, Input Shaft HUS-161563
...
16
Pinion, Bevel, 12T HUS-161564
...
17
Ring, Retaining HUS-105909X
...
18
Chain, 24 Pitches HUS-105910X
...
19
Cover, Detent HUS-160942
...
20
Gear, Spur, 12T HUS-160943
...
21
Collar, Clutch HUS-148267
...
22
Assy, Kit, Clutch Keys HUS-138236
...
23
Nut, Lock, 5/16-24 HUS-73810500
...
24
Shaft, Intermediate HUS-142676
...
25
Key, Woodruff, No. 61 HUS-2244J
...
26
Ring, Retaining HUS-105916X
...
27
Sprocket, 18T HUS-120470X
...
28
Spacer, 1.131 X 1.45 X .494 HUS-110070X
...
29
Gear, Spur, 37T HUS-142677
...
30
Gear, Spur, 30T HUS-124644X
...
31
Gear, Spur, 25T HUS-108980X
...
32
Bracket, Anti-Rotation HUS-160954
...
33
Gear, Spur, 19T HUS-134796
...
34
Spacer, 1.133 X 1.50 X .375 HUS-134797
...
35
Washer, Plain, .640 X 1.37 X .061 HUS-105925X
...
36
Washer, Plain, .632 X 1.00 X .046 HUS-2228J
...
37
Washer, Plain, .632 X 1.00 X .031 HUS-2231J
...
38
Assy, Gear, Comb., 12T & 30T HUS-160944
...
39
Shaft, Idler HUS-124639X
...
40
Spacer, .633 X .87 X .755 HUS-120472X
...
41
Sprocket, 9T HUS-105928X
...
42
Gear, Bevel, 36T HUS-161565
...
43
Assy, Kit, Shim, .750 Shaft HUS-134394
...
44
Shaft, Drive HUS-120473X
...
45
Gear, Spur, 12T HUS-142678
...
46
Gear, Spur, 20T HUS-124641X
...
47
Gear, Spur, 25T HUS-106589X
...
48
Puck, Friction HUS-120951X
...
49
Gear, Spur, 31T HUS-105937X
...
50
Spacer, .781 X 1.00 X .375 HUS-105936X
...
51
Washer, Plain, .632 X 1.00 X .060 HUS-2226J
...
52
Washer, Neoprene HUS-134401
...
53
Washer, Plain, .758 X 1.25 X .031 HUS-2264J
...
54
Axle, LH HUS-160946
...
55
Gear, Miter, 12T, Splined HUS-160947
...
56
Ring, Retaining HUS-160948
...
57
Gear, Spur, 32T HUS-110071X
...
58
Shaft, Cross HUS-120952X
...
59
Gear, Miter, 12T, Idler HUS-160949
...
60
Axle, RH HUS-160946
...
61
Housing, Lower HUS-142680
...
62
Puck, Friction HUS-120961X
...
63
Disc, Brake HUS-7294J
...
64
Spacer, Brake Puck HUS-108989X
...
65
Jaw, Brake HUS-160952
...
66
Pin, Dowel HUS-120954X
...
67
Screw, Tapping, 5/16-18 X 2.35 HUS-160953
...
68
Lever, Actuating HUS-138244
...
69
Washer, Plain, .321 X 1.00 X .055 HUS-108996X
...
70
Grease HUS-120416X
