Husqvarna LR 120 (954830051A) (1995-08) Ride Mower

Model: LR 120 (954830051A) (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

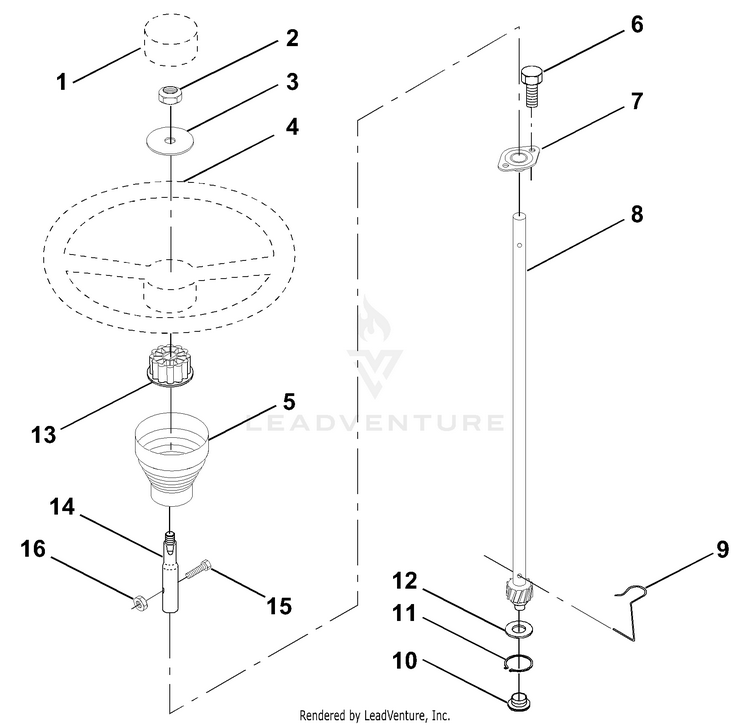

Steering Wheel

...
...
1
INSERT,STR WHEEL HUS-532124416
...
2
NUT HUS-873610600
...
3
WASHER.13/32x2 3/8x12GA HUS-583789501
...
4
STEERING WHEEL HUS-532124415
...
5
STEERING SLEEVE HUS-532127396
...
6
Screw Slftp #10-16 x 1/2 Ty-Ab HUS-817211008
...
7
STEERING BUSHING KIT HUS-532155107
...
8
KIT.SERVICE.SHAFT.STEERING.LR HUS-532148966
...
9
STEERING CLIP HUS-532124210
...
10
BUSHING STEER LWR HUS-532123438
...
11
RING HUS-812000045
...
12
Washers HUS-596933401
...
13
ADAPTER-WHEEL LT HUS-532104820
...
14
KIT.EXTENSION.STEERING.PLM/LR HUS-532154307
...
15
Screws HUS-595305701
...
16
Hardware HUS-596040501
Schematic Image Zoomed
