Husqvarna LR 120 (954830051A) (1995-08) Ride Mower

Model: LR 120 (954830051A) (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

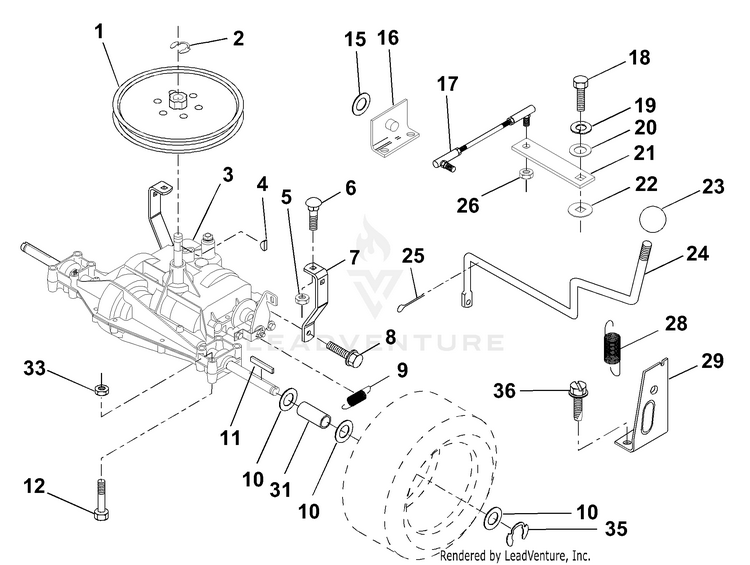

Transaxle

...
...
1
PULLEY HUS-532123385
...
2
RETAINING RING LT HUS-812000028
...
4
KEY STD (1373) DANA HUS-532125096
...
5
Hardware HUS-596040501
...
6
GSPW Bolts HUS-595901601
...
7
STRAP,TORQUE HUS-532123378
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
9
SPRING,BRAKE RETURN HUS-532146682
...
10
WASHER HUS-532121749
...
11
SQUARE KEY HUS-532123583
...
12
BOLT HUS-874760644
...
15
Washers HUS-596040101
...
16
SUPT, HDLE SHT LH HUS-532124600
...
17
LINK,SHIFT HUS-532123632
...
18
Bolts HUS-596136601
...
19
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
20
Washers HUS-596039801
...
21
ARM SHIFT HUS-532123539
...
22
WASH-SHFT PLT LT HUS-532105701
...
23
KNOB T (1/2-HOLE) HUS-532106933
...
24
ROD, SHIFT HUS-532128215
...
25
Pins HUS-596029601
...
26
HUS-873610500
...
28
SPRING.EXTENSION HUS-532128085
...
29
SUPPORT HANDLE SHAFT RH HUS-532128084
...
31
SPACER LT HUS-532109502
...
33
Nuts HUS-596322601
...
35
E-RING LT HUS-812000001
...
36
Screws HUS-596437001
