Husqvarna LR 120 (954001242B) (1995-02) Ride Mower

Model: LR 120 (954001242B) (1995-02)

Back To Assemblies

Save Part Not Listed?
product name

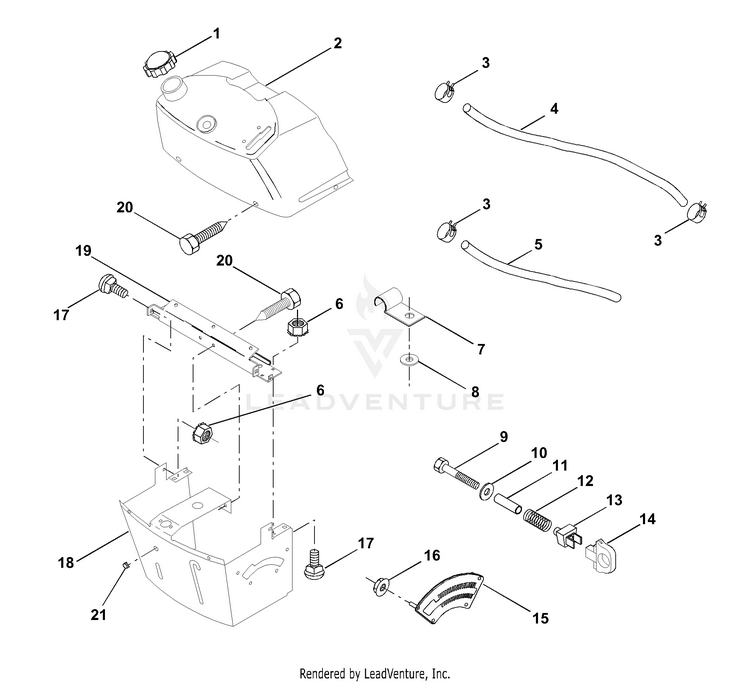

Dash

...
...
1
CAP.FUEL.GREY HUS-532142187
...
2
TANK ASM DASH LR HUS-532138395
...
3
HOSE CLAMP HUS-532123487
...
4
FUEL LINE HUS-532000295
...
5
FUEL LINE T HUS-532008548
...
6
Nut, Hex, Keps 1/4-20 HUS-873640400
...
7
CLIP T HUS-532002751
...
8
Washers HUS-596204201
...
9
BOLT.HEX.FINISHED.1/4-20 HUS-874760432
...
10
Washers HUS-596135301
...
11
SPACER SPLIT HUS-532121249
...
12
SPRING.COMPRESSION HUS-532003720
...
13
KNOB HGT RETAINER HUS-532126450
...
14
KNOB HUS-532126115
...
15
ADJUSTER QUAD HUS-532122023
...
16
NUT.PUSH.3/16 HUS-532124346
...
17
BOLT HUS-872110404
...
18
SUPT ASSY DASH HUS-532130745
...
19
CROSS BRACE HUS-532134744
...
20
SCREW HUS-817060408
...
21
PLUG DOME HUS-532134014
