Husqvarna LR 120 (954001242B) (1995-02) Ride Mower

Model: LR 120 (954001242B) (1995-02)

Back To Assemblies

Save Part Not Listed?
product name

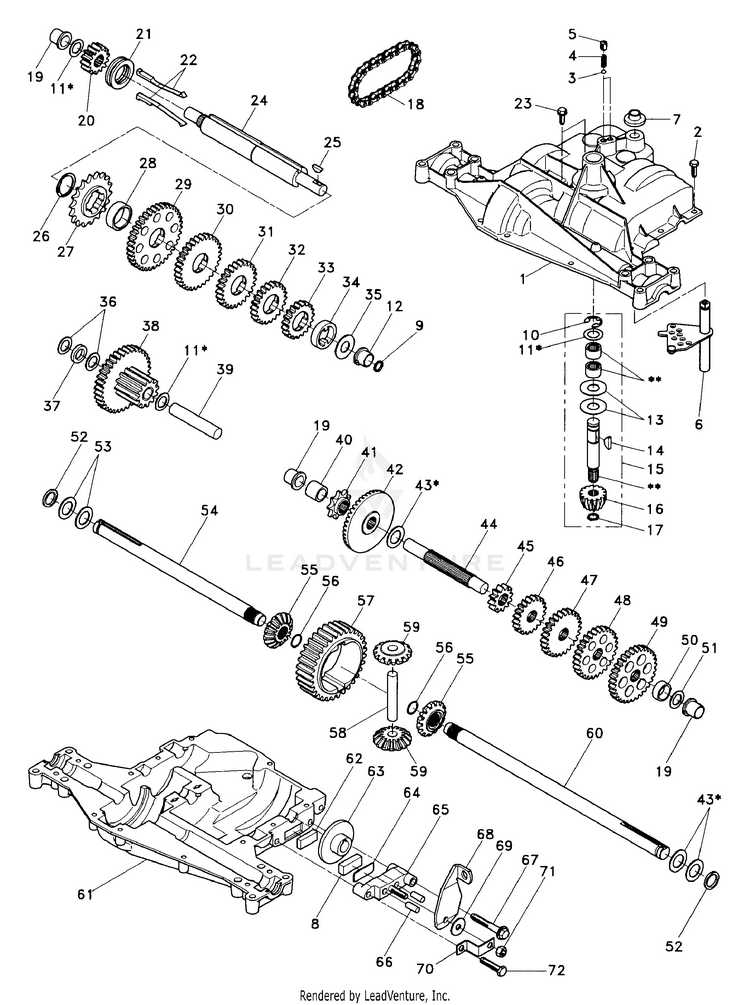

Dana Transaxle

...
...
1
HOUSING, UPPER HUS-532142671
...
2
SCREW SELF TAPPING, LARGE HUS-532002274
...
3
DETENT, BALL HUS-532068003
...
4
SPRING, DETENT HUS-532105904
...
5
SCREW, SET HUS-532105905
...
6
SHIFTER KIT HUS-532134788
...
7
BOOT, SHIFTER HUS-532134399
...
8
PUCK, FRICTION HUS-532120951
...
9
BEARING.FLANGE (DANA 5511) HUS-532148268
...
10
RING, RETAINING HUS-532142672
...
11
SHIM.KIT.DANA.4689 Use in combinations to maintain proper clearances HUS-532134793
...
12
BEARING.FLANGE (DANA 5511) HUS-532148268
...
13
WASHER.PLAIN..632X1.38X.046 HUS-532120415
...
14
KEY.WOODRUFF.DANA HUS-532142674
...
15
INPUT.SHAFT.BEVEL.6205 HUS-532167148
...
16
INPUT.SHAFT.BEVEL.6205 HUS-532167148
...
17
RING RETAINING HUS-532105909
...
18
CHAIN 24 PITCH LT HUS-532105910
...
19
BEARING, FLANGE LT HUS-532105911
...
20
GEAR SPUR 14 TTH HUS-532142675
...
21
COLLAR, CLUTCH HUS-532138246
...
22
ASSEMBLY KIT, CLUTCH KEYS HUS-532138236
...
23
SCREW, SELF TAPPING W/SEALER HUS-532134791
...
24
SHAFT INTER 5404 HUS-532143673
...
25
KEY, WOODRUFF, #61 HUS-532002244
...
26
RING, RETAINING LT HUS-532105916
...
27
SPROCKET 18T HUS-532120470
...
28
SPACER HUS-532110070
...
29
GEAR, SPUR 37 TEETH HUS-532142677
...
30
GEAR, SPUR 30 TEETH HUS-532120405
...
31
GEAR, SPUR 25 TEETH HUS-532108980
...
32
GEAR, SPUR 22 TEETH HUS-532120406
...
33
GEAR HUS-532134796
...
34
Spacer 1.133 x 1.50 x .375 HUS-532134797
...
35
WASHER, PLAIN .640 X 1.37X.061 HUS-532105925
...
36
WASHER 025 HUS-532002232
...
37
SPACER HUS-532108978
...
38
ASSM GEAR COMB T NLA HUS-532110079
...
39
SHAFT IDLER HUS-532124639
...
40
SPACER, .635 X .875 X .755 HUS-532120472
...
41
SPROCKET 9T LT HUS-532105928
...
42
INPUT.SHAFT.BEVEL.6205 HUS-532167148
...
43
SHIM Use in combinations to maintain proper clearances HUS-532134394
...
44
SHAFT, DRIVE HUS-532120473
...
45
GEAR SPUR 12 TEETH HUS-532142678
...
46
GEAR, SPUR 20 TEETH HUS-532120407
...
47
GEAR, SPUR 25 TEETH HUS-532106589
...
48
GEAR, SPUR 28 TEETH HUS-532120408
...
49
GEAR, SPUR 31 TEETH HUS-532105937
...
50
Spacer .781 x 1.00 x .375 HUS-532105936
...
51
WASHER, PLAIN .632 X1.00X.060 HUS-532002226
...
52
NEOPRENE.WASHER.DANA HUS-532134401
...
53
WASHER, PLAIN .758 X 1.25X.031 HUS-532002264
...
54
KIT.AXLE.LH.4997.DANA HUS-532154658
...
55
GEAR KIT HUS-532169651
...
56
RING, RETAINING HUS-532105941
...
57
GEAR LT HUS-532110071
...
58
SHAFT, CROSS HUS-532120952
...
59
GEAR KIT HUS-532169651
...
60
AXLE RH HUS-532123908
...
61
LOWER HOUSING HUS-532142680
...
62
PUCK, FRICTION HUS-532120961
...
63
BRAKE DISC T HUS-532007294
...
64
SPACER LT HUS-532108989
...
65
JAW BRAKE HUS-532164670
...
66
PIN HUS-532120954
...
67
SCREW, SELF TAPPING, LARGE HUS-532134799
...
68
LEVER ACTUATOR HUS-532108992
...
69
WASHER, PLAIN .321 X 1.00X.055 HUS-532108996
...
70
BRACKET, ANTI ROTATION HUS-532120956
...
71
HUS-873610500
...
72
SCREW, SELF TAPPING LARGE HUS-532106596
...
73
SHELL, GREASE #50416 HUS-532126976
