Husqvarna LR 110 (954001232C) (1995-08) Ride Mower

Model: LR 110 (954001232C) (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

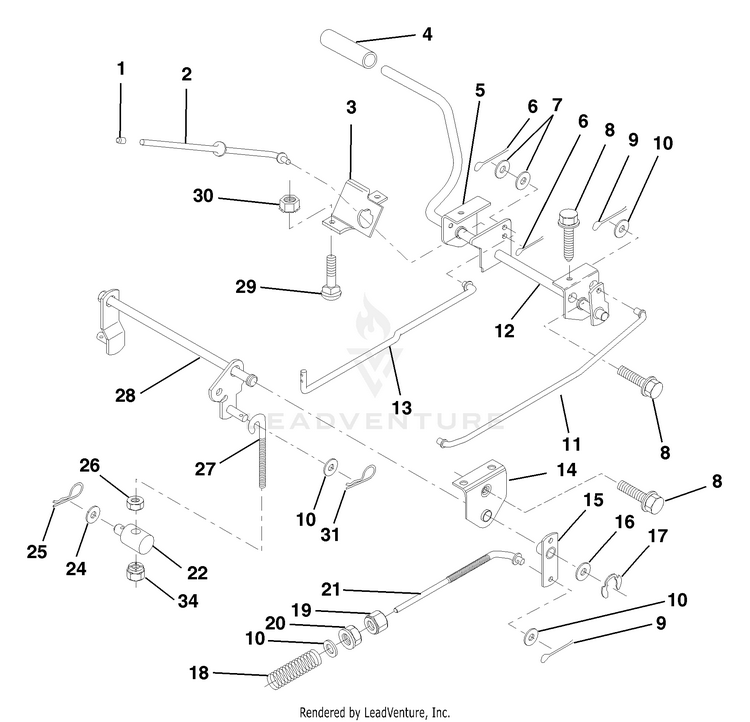

Brake/Rear Mower Lift Assembly

...
...
1
PLUNGER CAP HUS-532071673
...
2
ROD,PARK BRAKE HUS-532123436
...
3
BRKT,PARK BRAKE HUS-532123437
...
4
FOOT PEDAL COVER HUS-532008156
...
5
BRKT,CLU PEDAL LH HUS-532122504
...
6
Pins HUS-596917601
...
7
WASHER HUS-819131016
...
8
Screws HUS-596030701
...
9
Pins HUS-596029501
...
10
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
11
ROD,FRT BRAKE HUS-532123543
...
12
CLUTCH/BRAKE PEDAL ASSY HUS-532139933
...
13
ROD,CLUTCH HUS-532123394
...
14
BRKT,LIFT SHAFT HUS-532121978
...
15
ARM, BRAKE ASMBLY HUS-532133332
...
16
WASHER T HUS-819251816
...
17
Ring, Klip HUS-812000034
...
18
SPRING, BRAKE ROD HUS-532151332
...
19
NUT.HEX.3/8-16UNC HUS-873220600
...
20
Nuts HUS-596322601
...
21
CLUTCH KIT HUS-532131461
...
22
TRUNNION, LEFT HUS-532144585
...
24
GSPH HUS-596134901
...
25
COTTER PIN HUS-532004921
...
26
Nuts HUS-596322601
...
27
LINK.MOWER.REAR HUS-532127369
...
28
REAR MOWER LIFT ASSY HUS-532140776
...
29
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
30
Hardware HUS-596040501
...
31
SPRING RETAINER HUS-532003146
